I. Overview

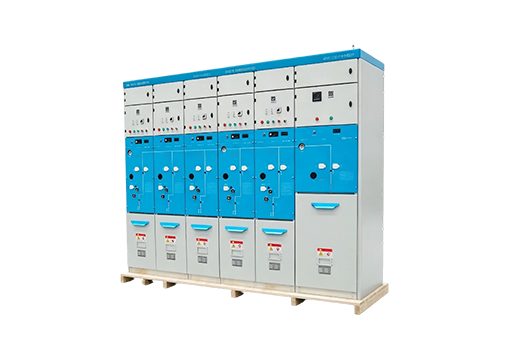

The independently developed JHSRM16-12 inflatable SF6 metal enclosed full insulation series ring main switch cabinet has passed the type test of the National High Voltage Apparatus Test Center and been listed as a high-tech product in Zhejiang Province for the Zhejiang Province High tech Technology Project. The product is widely used in 10kV/6kV distribution systems and is a switch product for various urban and rural users' power transformation and distribution systems. The switchgear adopts a modular unit mode, which can be combined according to different purposes; There are two main types of fixed unit combinations and expandable units, which meet the requirements of various substations for compact opening
The need for flexible use of cabinets. The JHSRM16-12 inflatable switchgear is a completely sealed system, with its electrical components and switches enclosed within a stainless steel body. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety. And it has achieved maintenance free operation. By selecting expandable busbars, any combination can be achieved to achieve full modularity. Expanding the safety insulation and shielding of the busbar ensures reliability and safety. The JHSRM16-12 inflatable switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and minimizing on-site installation and commissioning workload.
The HSRM16-12 inflatable switchgear is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full and half modules and self scalability, it has extremely special flexibility.
The design lifespan for operation under indoor conditions (20 ° C) exceeds 30 years.
Transformer/Line Protection
JHSRM16-12 inflatable cabinet provides two types of transformer protection: load switch fuse combination device and circuit breaker with relay protection.
Use load switch fuse combination electrical module
The combination of current limiting high-voltage fuses and load switches for transformer protection. The fuse compartment will be installed behind a separate, locked enclosure located at the front of the unit. The load switch uses a spring energy storage mechanism, which can be triggered by a fuse striker.
In order to facilitate the replacement of fuses. You can use the operating handle to remove the end cover of the fuse chamber. The pre installed tripping mechanism of the fuse ensures the waterproof performance of the entire system.
II. Main features of the product
Operational Security
We can provide special security protection for users through the following security measures:. Integrated three station load switch
-- Circuit breakers use load switches instead of isolation switches for greater safety and reliability
-- One side fully enclosed design
-- Mechanical interlocking that meets the five prevention requirements
-- Live display can provide live indication for incoming and outgoing lines
Reliable operation
-- Fully enclosed design, all 10KV switches and busbar live parts are sealed in a 3mm stainless steel welded gas box; Equipped with silicone rubber cable plugs to achieve full insulation and sealing of cable heads, thus avoiding external environmental influences such as dust, moisture, and small animals
-- Spring energy storage operating mechanism, can be operated manually or electrically
-- Panel simulation line diagram provides switch position indication
-- The cabinet is made of galvanized sheet metal, with surface electrostatic spraying to enhance corrosion resistance
-- Safe pressure range of SF6 gas inside the pressure gauge monitoring box
Economy:
-- Maintenance free
-- Highly reliable
-- The service life can reach 20 years
Flexible plan
-- Multiple entry methods can be used to achieve left, right, up, or forward lines.
-- Multiple combination methods can be used, and any combination between units can be achieved.
-- By using insulated busbars, it is possible to achieve front and rear parallel cabinets or left and right parallel cabinets
-- Flexible design scheme
Widely used
-- The feeder line has a large capacity and occupies a small area, suitable for various application needs
III. Design Specifications
-- Technical Description
The JHSRM16-12 series inflatable switchgear is installed on a galvanized sheet frame, with the switch unit inside an SF6 gas box made of corrosion-resistant and non-magnetic 3mm thick stainless steel plate.
SF6 gas tank is a "sealed pressure system" that can operate for 20 years under normal working conditions. The pressure of SF6 gas during normal operation is 0.15~0.4 bar. The gas box is equipped with a pressure release device, which ensures that gas can be released from the bottom or rear when the pressure is too high.
-- Switching unit
The load switch adopts a coaxial rotating double break method, which cooperates with the sliding plate through the same operating hole for kinetic operation. Therefore, the switch can only be in one of the three states of "closing, opening, and grounding" at any time, completely avoiding misoperation.

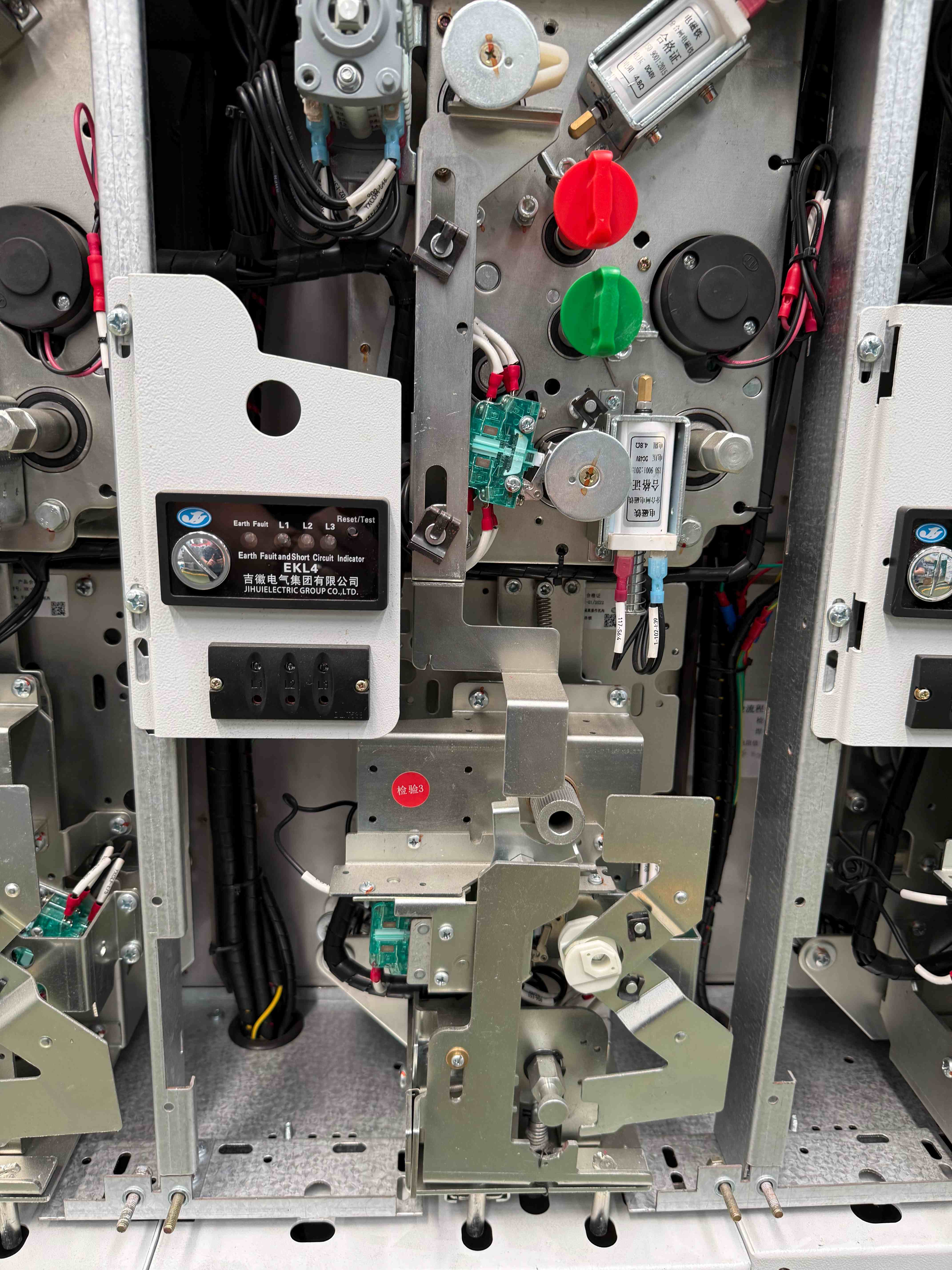

-- Operating mechanism
The operating mechanism of the switch is installed at the front of the air box and has undergone special processing to prevent rust and corrosion. It is convenient for manual operation and maintenance and easy to achieve electric operation.
| Model | Size |
| SRM16-12/24 | 130*100*200cm |
At Jihui Electric Group Co., Ltd., we specialize in the research, development, manufacturing, and service of medium and low voltage power transmission and distribution equipment up to 35kV. Over the years, we have worked with power companies, engineering contractors, industrial enterprises, renewable energy developers, and infrastructure projects to provide stable and efficient electrical solutions.
With the rapid development of smart grids and modern energy systems, traditional switchgear can no longer fully meet the requirements of today's power distribution networks. Customers need equipment that is not only safe and reliable but also intelligent, easy to operate, and capable of remote management.
Our Smart Remote Control SRM MV Gas Insulated Switchgear is developed to meet these needs. By combining advanced gas insulation technology with intelligent remote control functions, our SRM MV Gas Insulated Switchgear helps users improve power distribution efficiency, enhance system safety, and reduce daily operation costs.
The product is designed for medium voltage applications and is widely used in smart grids, renewable energy plants, industrial power systems, commercial buildings, transportation facilities, mining projects, and urban infrastructure.
Smart Remote Control SRM MV Gas Insulated Switchgear is an intelligent medium voltage electrical distribution device that integrates switching, protection, monitoring, and communication functions into one compact system.
In simple terms, it acts as a smart control unit in a power distribution network. Electricity enters the switchgear from the main power source, and the internal switching components control the power flow to different loads or distribution lines.
When abnormal situations happen, such as short circuits, overloads, or equipment failures, the protection system can quickly disconnect the affected circuit to protect the entire electrical network.
Unlike conventional switchgear that mainly depends on manual operation, our Remote Control Medium Voltage Switchgear supports intelligent operation. Operators can monitor equipment status and perform control operations through communication systems without always being physically close to the equipment.
This feature is especially valuable for modern power systems where fast response, safe operation, and efficient maintenance are becoming increasingly important.
The working principle of our SRM MV Gas Insulated Switchgear is based on three key functions: electrical switching, insulation protection, and intelligent monitoring.
The main function of medium voltage switchgear is controlling electrical circuits. Inside the switchgear, components such as load switches, circuit breakers, busbars, and grounding switches work together to control the connection and disconnection of power circuits.
During normal operation, the equipment maintains stable power transmission. When maintenance is required or a fault occurs, the switching mechanism can isolate specific sections of the network to avoid wider power interruption.
Gas insulation technology is one of the important features of modern medium voltage switchgear.
Compared with traditional air insulated equipment, gas insulated switchgear uses sealed insulation space to improve electrical insulation performance and reduce the influence of external environmental factors.
This structure allows the equipment to maintain reliable operation in environments with dust, humidity, temperature changes, and limited installation space.
The smart remote control system is designed to collect important operating information through sensors and intelligent control modules.
The system can monitor electrical parameters and equipment status, including voltage, current, switching position, and operating conditions.
Through communication interfaces, this information can be transmitted to a control center or smart grid management platform.
For customers, this means:
Faster fault detection
Reduced manual inspection workload
Improved operation safety
Better maintenance planning
Higher power supply reliability
Modern cities and industrial facilities often face limited installation space. Traditional electrical equipment may require large rooms and complex installation conditions.
Our Smart MV Gas Insulated Switchgear adopts a compact structure that helps customers save installation space while maintaining excellent electrical performance.
The compact design makes it suitable for:
Urban substations
Industrial distribution rooms
Renewable energy stations
Commercial power systems
Infrastructure projects
Safety is always our primary consideration during product development.
The SRM MV Gas Insulated Switchgear is designed with reliable insulation, mechanical strength, and protection functions to ensure stable operation under different working conditions.
The sealed structure reduces the impact of dust and moisture, helping improve equipment service life and operational stability.
One of the biggest advantages of our product is intelligent remote operation.
For traditional switchgear systems, operators often need to travel to the installation site to check equipment status or perform switching operations.
With our intelligent MV Switchgear System, operators can receive equipment information remotely and make faster decisions.
This is especially useful for:
Large industrial factories
Remote renewable energy projects
Distributed power networks
Unattended substations
Different industries have different electrical requirements. A mining project, solar power station, and industrial factory may need different configurations.
Based on customer requirements, we provide customized solutions including voltage levels, cabinet configurations, communication options, and installation requirements.
Our engineering team works closely with customers from technical discussion to final delivery to ensure the equipment matches actual project conditions.
At Jihui Electric, we do not only manufacture electrical cabinets. We focus on creating practical power solutions that help customers operate their systems more safely and efficiently.
Our Smart Remote Control SRM MV Gas Insulated Switchgear provides several important technical advantages:
| Technical Feature | Customer Benefit |
|---|---|
| Gas insulation structure | Improves insulation reliability and reduces environmental influence |
| Remote control system | Allows safer and faster equipment operation |
| Compact cabinet design | Saves installation space and simplifies project layout |
| Intelligent monitoring | Supports condition checking and maintenance management |
| Modular configuration | Allows flexible solutions for different applications |
Source: Technical characteristics summarized from Jihui Electric product design specifications and medium voltage switchgear engineering practices.
Medium voltage equipment must work continuously under demanding conditions.
Our manufacturing process focuses on insulation performance, mechanical reliability, and electrical safety. Each unit undergoes inspection and testing before shipment to ensure it meets project requirements.
With increasing demand for energy efficiency, power distribution equipment must help reduce unnecessary losses.
The intelligent design of our SRM MV Gas Insulated Switchgear supports better power management by providing accurate operation information and improving system control efficiency.
The future of power distribution is becoming more digital.
Smart grids require equipment that can communicate, monitor, and respond quickly.
Our Smart Remote Control SRM MV Gas Insulated Switchgear is designed to support this trend by combining reliable electrical technology with intelligent control functions.
During our years of serving global customers, we have seen that medium voltage power systems are becoming more complex. Different industries require reliable electricity, faster response, and smarter management methods.
Our Smart Remote Control SRM MV Gas Insulated Switchgear is designed for a wide range of applications where stable power distribution and intelligent operation are important.
Power companies need electrical equipment that can operate safely for many years with minimal interruption. Distribution networks often cover large areas, making manual inspection difficult.
Our intelligent MV switchgear system supports remote monitoring and control, helping utility operators improve network management efficiency and reduce response time during abnormal conditions.
Renewable energy projects such as solar farms and wind power plants usually require stable medium voltage collection and distribution systems.
Because renewable energy sites are often located in remote areas, remote control capability becomes very valuable. Operators can check equipment conditions without frequent site visits.
Our SRM MV Gas Insulated Switchgear helps renewable energy developers create safer and smarter power distribution systems.
Factories depend on continuous electricity supply. Unexpected power failures can affect production schedules and increase operating costs.
Industries such as automotive manufacturing, machinery production, electronics, chemical processing, and metal processing require reliable medium voltage equipment.
By providing stable switching performance and intelligent monitoring, our switchgear helps industrial users maintain efficient production operations.
Rail transit systems, airports, ports, and large transportation facilities require highly reliable electrical distribution.
The compact structure and intelligent control functions of our gas insulated switchgear make it suitable for infrastructure projects where safety and space efficiency are important.
Modern commercial buildings, business centers, hospitals, and urban facilities require safe and stable power supply systems.
Our compact MV switchgear solution can be installed in limited spaces while providing reliable medium voltage power management.
| Application Field | Main Requirement | SRM MV GIS Advantage |
|---|---|---|
| Power Utilities | Reliable network operation | Remote monitoring and intelligent control |
| Renewable Energy | Stable power collection | Suitable for smart energy systems |
| Industrial Plants | Continuous production power | Fast fault response and protection |
| Infrastructure | Safety and space efficiency | Compact gas insulated structure |
Source: Application analysis based on Jihui Electric customer industries and common medium voltage distribution system requirements.
At Jihui Electric, we believe that product quality starts from every small manufacturing detail.
Our factory follows strict production procedures from raw material inspection to final testing. Every Smart Remote Control SRM MV Gas Insulated Switchgear unit is manufactured according to technical requirements and customer project specifications.
Before production begins, we carefully check incoming materials and components.
Important components such as metal structures, insulation materials, switching components, and electronic control parts are inspected to ensure they meet quality requirements.
The assembly process requires accurate installation because medium voltage equipment has strict requirements for electrical clearance, mechanical structure, and sealing performance.
Our technicians follow standardized production procedures to ensure every component is installed correctly.
The smart remote control function requires close cooperation between electrical components and communication systems.
During production, our engineers test control modules, communication interfaces, and monitoring functions to ensure stable operation.
Before delivery, each product completes factory inspection and performance testing.
The testing process includes checking insulation performance, switching operation, mechanical function, and control system response.
| Production Stage | Main Inspection Content | Purpose |
|---|---|---|
| Material Inspection | Component quality and specifications | Ensure reliable raw materials |
| Assembly Process | Mechanical accuracy and installation quality | Improve equipment stability |
| Electrical Testing | Insulation and switching performance | Confirm safe operation |
| Final Inspection | Complete equipment function testing | Ensure delivery quality |
Source: Manufacturing process description based on Jihui Electric quality management procedures.
Choosing medium voltage equipment is not only about purchasing a product. It is about selecting a long-term power solution partner.
At Jihui Electric Group Co., Ltd., we focus on providing reliable products, professional technical support, and complete service throughout the project process.
We specialize in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range includes Cable accessories, Cable distribution boxes, ring main units, Prefabricated Substations, combination transformers, SF6 load switches, Vacuum circuit breakers, and intelligent switchgear systems.
Quality control is an important part of our manufacturing process.
Our company has obtained:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
Every project has different technical requirements.
Our engineering team communicates with customers to understand voltage levels, installation environment, operating conditions, and project standards.
We provide customized Smart Remote Control SRM MV Gas Insulated Switchgear solutions according to actual application needs.
We support international customers with professional pre-sales consultation, production communication, delivery arrangement, and after-sales service.
For export projects, we provide suitable packaging, transportation solutions, and technical documents to support smooth installation and operation.
The main advantage is the combination of reliable gas insulated technology and intelligent remote operation. It allows users to monitor and control medium voltage equipment more safely and efficiently.
It can be used in power grids, renewable energy projects, industrial factories, commercial buildings, transportation systems, mining facilities, and infrastructure projects.
Yes. We provide customized solutions according to voltage level, configuration requirements, installation conditions, and customer technical specifications.
Remote control reduces the need for operators to frequently enter high voltage areas. It allows equipment monitoring and operation from safer locations.
Our company has ISO9001, ISO14001, and ISO45001 certifications, covering quality management, environmental management, and occupational health and safety management.
The power industry is moving toward a smarter and more efficient future. Medium voltage equipment needs to provide not only electrical protection but also intelligent management capability.
Our Smart Remote Control SRM MV Gas Insulated Switchgear combines compact design, reliable insulation technology, intelligent remote operation, and flexible customization to support modern power distribution needs.
At Jihui Electric, we continue improving our technology and manufacturing capability to provide safe, reliable, and energy-efficient power solutions for customers worldwide.
If you are looking for a reliable SRM MV Gas Insulated Switchgear manufacturer, a customized Smart MV Gas Insulated Switchgear solution, or a professional supplier of Remote Control Medium Voltage Switchgear, our team is ready to support your project.
