I. Overview

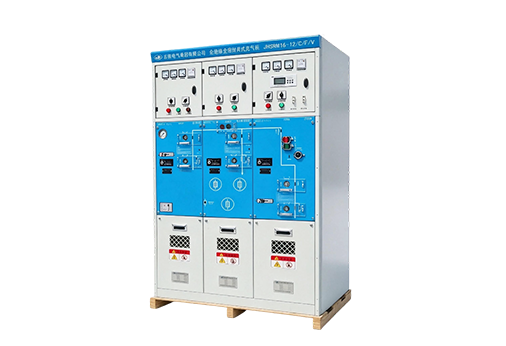

The independently developed JHSRM16-12 inflatable SF6 metal enclosed full insulation series ring main switch cabinet has passed the type test of the National High Voltage Apparatus Test Center and been listed as a high-tech product in Zhejiang Province for the Zhejiang Province High tech Technology Project. The product is widely used in 10kV/6kV distribution systems and is a switch product for various urban and rural users' power transformation and distribution systems. The switchgear adopts a modular unit mode, which can be combined according to different purposes; There are two main types of fixed unit combinations and expandable units, which meet the requirements of various substations for compact opening
The need for flexible use of cabinets. The JHSRM16-12 inflatable switchgear is a completely sealed system, with its electrical components and switches enclosed within a stainless steel body. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety. And it has achieved maintenance free operation. By selecting expandable busbars, any combination can be achieved to achieve full modularity. Expanding the safety insulation and shielding of the busbar ensures reliability and safety. The JHSRM16-12 inflatable switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and minimizing on-site installation and commissioning workload.
The HSRM16-12 inflatable switchgear is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full and half modules and self scalability, it has extremely special flexibility.
The design lifespan for operation under indoor conditions (20 ° C) exceeds 30 years.
Transformer/Line Protection
JHSRM16-12 inflatable cabinet provides two types of transformer protection: load switch fuse combination device and circuit breaker with relay protection.
Use load switch fuse combination electrical module
The combination of current limiting high-voltage fuses and load switches for transformer protection. The fuse compartment will be installed behind a separate, locked enclosure located at the front of the unit. The load switch uses a spring energy storage mechanism, which can be triggered by a fuse striker.
In order to facilitate the replacement of fuses. You can use the operating handle to remove the end cover of the fuse chamber. The pre installed tripping mechanism of the fuse ensures the waterproof performance of the entire system.
II. Main features of the product
Operational Security
We can provide special security protection for users through the following security measures:. Integrated three station load switch
-- Circuit breakers use load switches instead of isolation switches for greater safety and reliability
-- One side fully enclosed design
-- Mechanical interlocking that meets the five prevention requirements
-- Live display can provide live indication for incoming and outgoing lines
Reliable operation
-- Fully enclosed design, all 10KV switches and busbar live parts are sealed in a 3mm stainless steel welded gas box; Equipped with silicone rubber cable plugs to achieve full insulation and sealing of cable heads, thus avoiding external environmental influences such as dust, moisture, and small animals
-- Spring energy storage operating mechanism, can be operated manually or electrically

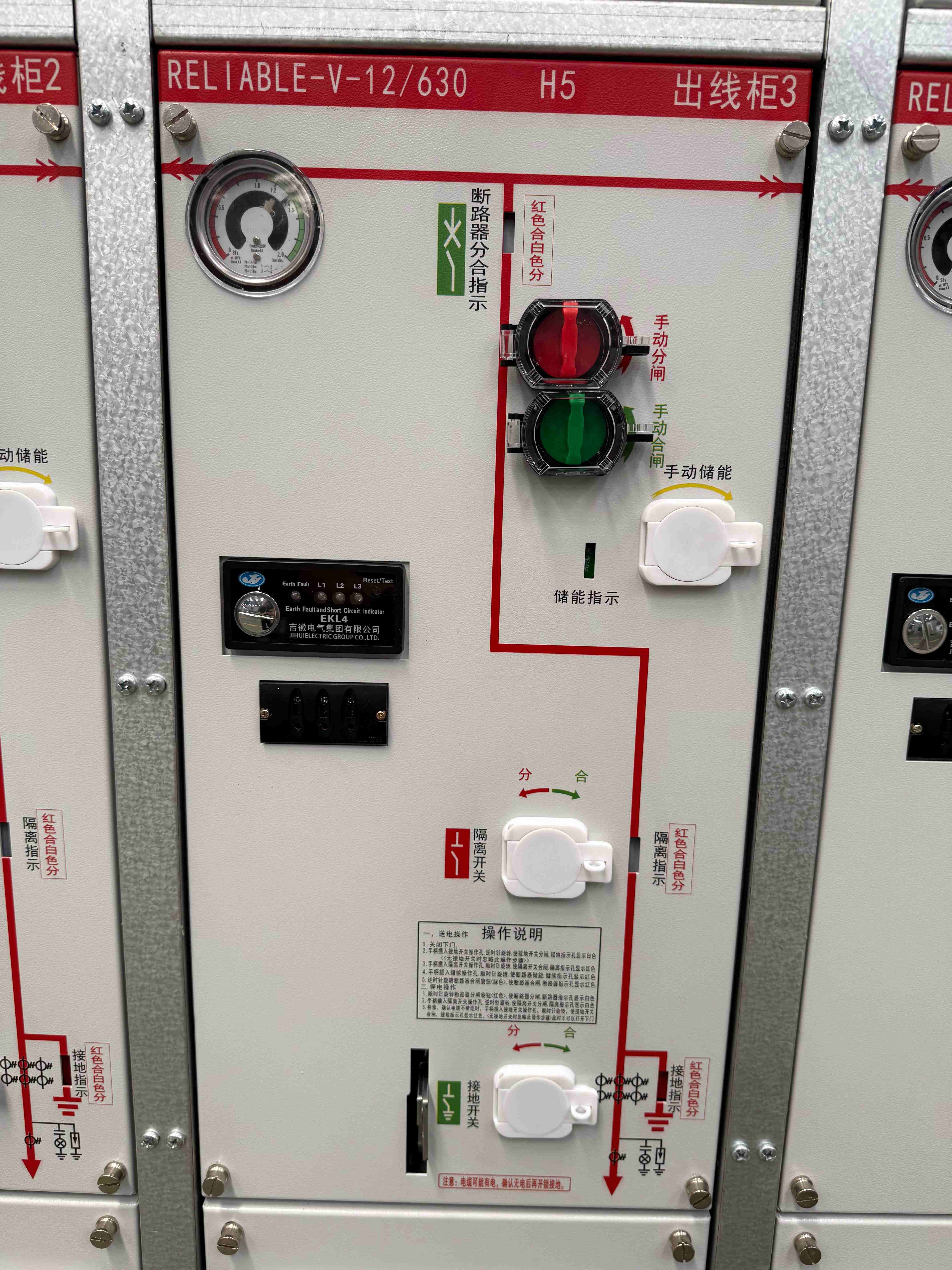

-- Panel simulation line diagram provides switch position indication
-- The cabinet is made of galvanized sheet metal, with surface electrostatic spraying to enhance corrosion resistance
-- Safe pressure range of SF6 gas inside the pressure gauge monitoring box
Economy:
-- Maintenance free
-- Highly reliable
-- The service life can reach 20 years
Flexible plan
-- Multiple entry methods can be used to achieve left, right, up, or forward lines.
-- Multiple combination methods can be used, and any combination between units can be achieved.
-- By using insulated busbars, it is possible to achieve front and rear parallel cabinets or left and right parallel cabinets
-- Flexible design scheme
Widely used
-- The feeder line has a large capacity and occupies a small area, suitable for various application needs
III. Design Specifications
-- Technical Description
The JHSRM16-12 series inflatable switchgear is installed on a galvanized sheet frame, with the switch unit inside an SF6 gas box made of corrosion-resistant and non-magnetic 3mm thick stainless steel plate.
SF6 gas tank is a "sealed pressure system" that can operate for 20 years under normal working conditions. The pressure of SF6 gas during normal operation is 0.15~0.4 bar. The gas box is equipped with a pressure release device, which ensures that gas can be released from the bottom or rear when the pressure is too high.
-- Switching unit
The load switch adopts a coaxial rotating double break method, which cooperates with the sliding plate through the same operating hole for kinetic operation. Therefore, the switch can only be in one of the three states of "closing, opening, and grounding" at any time, completely avoiding misoperation.
-- Operating mechanism
The operating mechanism of the switch is installed at the front of the air box and has undergone special processing to prevent rust and corrosion. It is convenient for manual operation and maintenance and easy to achieve electric operation.
| Model | Size |
| SRM16-12/24 | 130*100*200cm |
Substation Use SRM16-12/24 Compact Inflatable Switchgear for Reliable Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we focus on providing reliable medium and low voltage power transmission and distribution solutions for customers around the world. With professional experience in electrical equipment manufacturing, we develop and produce products including ring main units, Cable distribution boxes, Prefabricated Substations, combination transformers, SF6 load switches, and Vacuum circuit breakers.
Our Substation Use SRM16-12/24 Compact Inflatable Switchgear is designed for modern medium voltage power distribution systems that require safety, stability, and efficient space utilization. It is widely used in substations, urban power networks, industrial facilities, renewable energy projects, and infrastructure applications where reliable electricity supply is essential.
As power demand continues to grow, electrical systems need equipment that can work safely in different environments while reducing maintenance requirements. Based on years of manufacturing experience, we designed the SRM16-12/24 Compact Inflatable Switchgear with a sealed gas insulation structure, compact design, and flexible configuration options to meet different project requirements.
For customers looking for a reliable medium voltage switchgear solution, our SRM16-12/24 switchgear provides a practical balance between electrical performance, installation convenience, and long-term operation reliability.
The Substation Use SRM16-12/24 Compact Inflatable Switchgear is a type of Medium Voltage Gas Insulated Switchgear designed for power distribution systems operating at 12kV and 24kV voltage levels.
In a power network, switchgear plays an important role in controlling, protecting, and distributing electrical energy. It connects incoming power sources with outgoing circuits and helps operators manage electrical flow safely.
The SRM16-12/24 Compact Inflatable Switchgear uses a fully sealed enclosure filled with insulating gas. Important electrical components are protected inside the sealed chamber, reducing the impact of dust, humidity, pollution, and external environmental changes.
Compared with traditional open electrical equipment, compact inflatable switchgear provides better environmental protection and requires less installation space. This makes it especially suitable for modern substations where space availability and operational reliability are important factors.
During our communication with customers from different industries, we found that traditional medium voltage equipment often faces several challenges:
Limited installation space in urban substations
Environmental influence caused by dust and humidity
Higher maintenance requirements
Need for safer operation and easier management
To solve these practical problems, we developed the SRM16-12/24 Compact Inflatable Switchgear with a compact structure and sealed insulation design.
Our goal is simple: provide customers with equipment that is easy to install, reliable during operation, and suitable for different power distribution environments.
The working principle of our compact inflatable switchgear is based on controlling and protecting medium voltage electrical circuits.
When electrical power enters the substation, the incoming cable connects with the switchgear unit. The internal switching devices control whether the circuit is connected, disconnected, or isolated.
During normal operation, the equipment allows electricity to flow safely through the distribution network. When a fault occurs, such as overload or short circuit, the protection system helps separate the affected circuit from the normal operating area.
This process reduces the risk of equipment damage and helps maintain continuous power supply for other parts of the network.
| Operation Stage | Function | Practical Benefit |
|---|---|---|
| Power Input | Receives medium voltage power from incoming cables | Creates stable connection between power source and distribution system |
| Switching Control | Controls circuit connection and isolation | Allows flexible operation and easier maintenance |
| Protection Operation | Disconnects abnormal circuits during faults | Improves electrical safety and system reliability |
| Power Output | Transfers electricity to different loads | Supports various industrial and infrastructure applications |
Source: Working principle based on IEC 62271 series medium voltage switchgear standards and common engineering practices for gas insulated switchgear.
Space is becoming more valuable, especially in cities and industrial areas. Traditional electrical equipment may require large installation areas, which increases project costs.
Our SRM16-12/24 Compact Inflatable Switchgear adopts a compact structure that reduces the required installation space while maintaining reliable electrical performance.
This design is suitable for indoor substations, underground power rooms, commercial buildings, and other locations where space optimization is needed.
The sealed gas insulation design is one of the key advantages of our switchgear.
The internal electrical components are protected inside a closed chamber, reducing the influence of external conditions.
This helps improve operational stability in environments with humidity, dust, temperature changes, or industrial pollution.
Medium voltage equipment must maintain reliable operation under continuous working conditions.
Our SRM16-12/24 switchgear is designed with attention to electrical insulation, mechanical strength, and operational safety.
Through careful design and testing, we ensure that the equipment can meet the requirements of modern power distribution applications.
Different projects have different requirements. A substation project, industrial factory, and renewable energy system may require different electrical configurations.
We provide flexible solutions according to customer requirements, including cable connection methods, switching functions, and system design needs.
For power equipment, reliability over many years is more important than short-term performance.
Our compact inflatable switchgear focuses on reducing maintenance needs and improving long-term operating stability.
With proper installation and operation, it can provide dependable service for medium voltage distribution systems.
When customers choose medium voltage switchgear, they usually compare equipment based on safety, space requirements, maintenance cost, and application flexibility.
The following comparison shows the general differences between traditional air insulated switchgear and compact inflatable switchgear solutions.
| Comparison Item | Traditional Air Insulated Switchgear | SRM16-12/24 Compact Inflatable Switchgear |
|---|---|---|
| Structure | Open air insulation design | Sealed gas insulated structure |
| Installation Space | Requires larger installation area | Compact design with space-saving advantages |
| Environmental Protection | More affected by external conditions | Better protection against dust and humidity |
| Maintenance Requirement | Requires regular environmental inspection | Lower maintenance demand due to sealed design |
| Application Range | Standard indoor distribution systems | Substations, industrial, renewable energy, urban networks |
Source: Comparison based on general characteristics of medium voltage switchgear designs and practical application experience.
| Item | Description |
|---|---|
| Product Name | Substation Use SRM16-12/24 Compact Inflatable Switchgear |
| Rated Voltage | 12kV / 24kV |
| Product Type | Compact Gas Insulated Medium Voltage Switchgear |
| Application | Substations, power distribution networks, industrial systems |
| Insulation Method | Sealed gas insulation |
| Customization | Available according to project requirements |
| Manufacturing Standard | Produced according to technical specifications and customer requirements |
Source: Jihui Electric product design information and engineering specifications.
At Jihui Electric Group Co., Ltd., we understand that electrical equipment is an important part of every power system.
A small problem in distribution equipment may affect production, transportation, buildings, or public services. That is why we focus on stable manufacturing processes, strict quality control, and practical product design.
Our experience in medium voltage equipment allows us to provide not only products, but also technical support and project solutions for customers worldwide.
During our cooperation with customers from different markets, we have learned that every power distribution project has its own challenges. Some projects need compact equipment because installation space is limited, while others require strong environmental protection because the equipment operates in demanding conditions.
Our Substation Use SRM16-12/24 Compact Inflatable Switchgear is designed to meet these practical requirements. With reliable switching performance, compact structure, and stable insulation characteristics, it can be applied in various medium voltage power distribution systems.
Power companies require electrical equipment that can operate continuously and safely for many years. In distribution substations, switchgear is responsible for controlling power flow, isolating faults, and protecting important electrical assets.
Our SRM16-12/24 Switchgear helps utility operators improve distribution reliability by providing stable medium voltage switching and protection functions.
The compact sealed design is especially suitable for urban substations where installation space is limited and stable operation is required.
Renewable energy projects such as solar power plants and wind farms require reliable medium voltage equipment to connect generated electricity to the grid.
Because renewable energy output can change depending on weather conditions, the electrical system needs dependable protection and switching equipment.
Our Compact Inflatable Switchgear provides a practical solution for renewable energy projects by supporting safe power collection and distribution.
Factories depend on stable electricity to maintain production lines, automation systems, and machinery operation. Unexpected power interruptions may affect production schedules and increase operating costs.
Our medium voltage switchgear is widely suitable for:
Automotive production plants
Machinery manufacturing facilities
Electronic factories
Metal processing plants
Chemical industry projects
Industrial parks
The reliable switching and protection functions help industrial users build safer and more efficient power systems.
Modern cities require compact and efficient electrical solutions. Commercial buildings, shopping centers, hospitals, airports, and public facilities need reliable power distribution equipment with good space utilization.
The compact design of our Substation Use SRM16-12/24 Compact Inflatable Switchgear allows easier installation in locations where traditional equipment may require more space.
Rail transit systems, ports, airports, and other public infrastructure projects require stable electrical systems because power interruptions can affect daily operations.
Our medium voltage switchgear provides dependable circuit control and protection for these important applications.
At Jihui Electric, we believe that product quality is created during every manufacturing step. A reliable switchgear product requires careful design, accurate assembly, strict inspection, and continuous improvement.
Before manufacturing begins, our engineering team reviews customer requirements carefully.
We confirm important technical information, including:
Rated voltage requirements
Installation environment
Switching functions
Cable connection methods
Project standards
This process helps ensure that the final product matches the actual working conditions of the project.
The reliability of medium voltage equipment depends on the quality of every component.
We select suitable materials for the enclosure, insulation parts, mechanical structures, and electrical components based on technical requirements.
The enclosure is designed with strong mechanical performance to protect internal components during transportation and operation.
The assembly of compact inflatable switchgear requires accurate installation and adjustment of each component.
Our technicians follow standardized production procedures to ensure proper installation of switching mechanisms, electrical connections, and internal structures.
Careful assembly helps improve product consistency and operational reliability.
Before delivery, each unit undergoes inspection and testing to confirm that it meets technical requirements.
| Inspection Process | Main Purpose | Customer Benefit |
|---|---|---|
| Appearance Inspection | Check enclosure condition and assembly quality | Ensures product manufacturing consistency |
| Mechanical Operation Test | Verify switching mechanism operation | Improves equipment reliability during use |
| Electrical Performance Test | Check insulation and electrical functions | Ensures safe operation in power systems |
| Final Factory Inspection | Confirm product condition before shipment | Provides confidence for project delivery |
Source: Jihui Electric internal production procedures and standard medium voltage equipment inspection practices.
Selecting a switchgear supplier is an important decision for any electrical project. Customers need more than a product. They need a supplier who understands technical requirements, delivery schedules, and long-term cooperation.
Jihui Electric Group Co., Ltd. specializes in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range covers:
Ring Main Unit Switchgear
Gas Insulated Switchgear
Cable Distribution Boxes
Prefabricated Substations
Combination Transformers
SF6 Load Switches
Vacuum Circuit Breakers
To maintain stable product quality, we operate according to international management system requirements.
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These certifications represent our commitment to organized production, responsible operation, and continuous improvement.
Every customer project has different technical conditions. A renewable energy station, industrial factory, and urban substation may require different configurations.
Our engineering team provides technical communication and customized solutions according to customer requirements.
We understand that project schedules are important. For standard products, delivery can be arranged according to stock availability and order requirements.
For customized products, production schedules are confirmed after technical parameters are finalized.
According to product size, quantity, and destination, we arrange suitable transportation methods including sea freight, land transportation, or combined logistics.
Before shipment, products are packed with professional protection methods including moisture prevention, impact protection, and vibration protection.
SRM16-12/24 Compact Inflatable Switchgear is mainly used for medium voltage power distribution in substations, industrial facilities, renewable energy projects, and urban electrical networks.
The product is designed for 12kV and 24kV medium voltage applications, making it suitable for different distribution system requirements.
The main advantages include compact structure, stable insulation performance, better environmental protection, and reduced maintenance requirements.
Yes. We provide customized solutions based on project requirements, including electrical parameters, configuration options, and installation conditions.
We control quality through engineering review, material selection, standardized manufacturing, factory testing, and compliance with ISO9001, ISO14001, and ISO45001 management systems.
With the development of smart grids, renewable energy, and industrial automation, power distribution systems require safer and more efficient equipment.
Our Substation Use SRM16-12/24 Compact Inflatable Switchgear combines compact design, reliable insulation, flexible configuration, and stable operating performance to support modern electrical applications.
At Jihui Electric Group Co., Ltd., we continue improving our manufacturing capabilities and technical services to provide dependable medium voltage switchgear solutions for customers worldwide.
Whether you are building a new substation, upgrading an existing power system, or searching for a reliable gas insulated switchgear manufacturer, we are ready to support your project with professional products and services.
