I. Overview

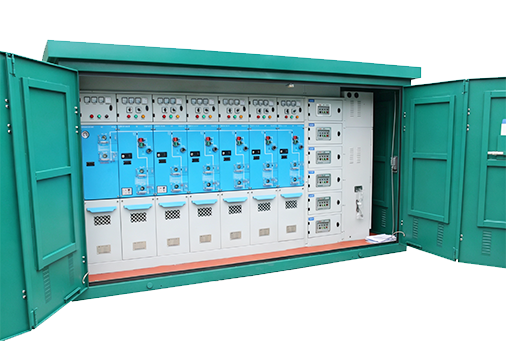

The independently developed JHSRM16-12 inflatable SF6 metal enclosed full insulation series ring main switch cabinet has passed the type test of the National High Voltage Apparatus Test Center and been listed as a high-tech product in Zhejiang Province for the Zhejiang Province High tech Technology Project. The product is widely used in 10kV/6kV distribution systems and is a switch product for various urban and rural users' power transformation and distribution systems. The switchgear adopts a modular unit mode, which can be combined according to different purposes; There are two main types of fixed unit combinations and expandable units, which meet the requirements of various substations for compact opening
The need for flexible use of cabinets. The JHSRM16-12 inflatable switchgear is a completely sealed system, with its electrical components and switches enclosed within a stainless steel body. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety. And it has achieved maintenance free operation. By selecting expandable busbars, any combination can be achieved to achieve full modularity. Expanding the safety insulation and shielding of the busbar ensures reliability and safety. The JHSRM16-12 inflatable switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and minimizing on-site installation and commissioning workload.
The HSRM16-12 inflatable switchgear is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full and half modules and self scalability, it has extremely special flexibility.
The design lifespan for operation under indoor conditions (20 ° C) exceeds 30 years.
Transformer/Line Protection
JHSRM16-12 inflatable cabinet provides two types of transformer protection: load switch fuse combination device and circuit breaker with relay protection.
Use load switch fuse combination electrical module
The combination of current limiting high-voltage fuses and load switches for transformer protection. The fuse compartment will be installed behind a separate, locked enclosure located at the front of the unit. The load switch uses a spring energy storage mechanism, which can be triggered by a fuse striker.
In order to facilitate the replacement of fuses. You can use the operating handle to remove the end cover of the fuse chamber. The pre installed tripping mechanism of the fuse ensures the waterproof performance of the entire system.
II. Main features of the product
Operational Security
We can provide special security protection for users through the following security measures:. Integrated three station load switch
-- Circuit breakers use load switches instead of isolation switches for greater safety and reliability
-- One side fully enclosed design
-- Mechanical interlocking that meets the five prevention requirements
-- Live display can provide live indication for incoming and outgoing lines
Reliable operation
-- Fully enclosed design, all 10KV switches and busbar live parts are sealed in a 3mm stainless steel welded gas box; Equipped with silicone rubber cable plugs to achieve full insulation and sealing of cable heads, thus avoiding external environmental influences such as dust, moisture, and small animals
-- Spring energy storage operating mechanism, can be operated manually or electrically
-- Panel simulation line diagram provides switch position indication
-- The cabinet is made of galvanized sheet metal, with surface electrostatic spraying to enhance corrosion resistance
-- Safe pressure range of SF6 gas inside the pressure gauge monitoring box
Economy:
-- Maintenance free
-- Highly reliable
-- The service life can reach 20 years
Flexible plan
-- Multiple entry methods can be used to achieve left, right, up, or forward lines.
-- Multiple combination methods can be used, and any combination between units can be achieved.
-- By using insulated busbars, it is possible to achieve front and rear parallel cabinets or left and right parallel cabinets
-- Flexible design scheme
Widely used
-- The feeder line has a large capacity and occupies a small area, suitable for various application needs
III. Design Specifications
-- Technical Description
The JHSRM16-12 series inflatable switchgear is installed on a galvanized sheet frame, with the switch unit inside an SF6 gas box made of corrosion-resistant and non-magnetic 3mm thick stainless steel plate.
SF6 gas tank is a "sealed pressure system" that can operate for 20 years under normal working conditions. The pressure of SF6 gas during normal operation is 0.15~0.4 bar. The gas box is equipped with a pressure release device, which ensures that gas can be released from the bottom or rear when the pressure is too high.
-- Switching unit
The load switch adopts a coaxial rotating double break method, which cooperates with the sliding plate through the same operating hole for kinetic operation. Therefore, the switch can only be in one of the three states of "closing, opening, and grounding" at any time, completely avoiding misoperation.
-- Operating mechanism
The operating mechanism of the switch is installed at the front of the air box and has undergone special processing to prevent rust and corrosion. It is convenient for manual operation and maintenance and easy to achieve electric operation.
| Model | Size |
| SRM16-12/24 | 130*100*200cm |
At Jihui Electric Group Co., Ltd., we focus on the research, development, manufacturing, and service of medium and low voltage power transmission and distribution equipment up to 35kV. For many years, we have been working with power companies, engineering contractors, industrial customers, renewable energy developers, and infrastructure projects to provide safe and reliable electrical solutions.
With the continuous expansion of power networks, more projects are being built in challenging environments such as high-altitude areas, remote regions, mountain zones, and areas with large temperature differences. These locations create higher requirements for electrical equipment because low air pressure, harsh weather, and difficult maintenance conditions can affect normal operation.
Our High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet is specially designed for these demanding applications. By combining SF6 gas insulation technology, compact cabinet structure, and reliable medium voltage switching performance, our product helps customers build stable power distribution systems in high-altitude and complex environments.
The SRM SF6 Inflatable Switch Cabinet is widely used in power grids, renewable energy plants, industrial facilities, mining projects, urban infrastructure, and other medium voltage applications. It provides customers with a practical solution where safety, reliability, and environmental adaptability are equally important.
The High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet is a Medium Voltage Gas Insulated Switchgear designed to maintain stable electrical performance in high-altitude environments.
In simple words, it is a smart electrical control cabinet that manages the distribution and protection of medium voltage power. It can connect, disconnect, and protect electrical circuits while reducing the influence of outside environmental conditions.
Traditional air insulated switchgear depends heavily on surrounding air conditions for insulation. However, when equipment is installed at high altitudes, the air density becomes lower, which may affect electrical insulation distance and equipment design requirements.
Our SF6 gas insulated structure solves this challenge by using sealed insulation technology. The internal gas environment provides stable insulation performance, allowing the equipment to operate reliably even in areas with reduced atmospheric pressure.
For customers working in high-altitude regions, this means fewer operation concerns, better equipment stability, and improved power supply reliability.
High-altitude environments are different from normal installation locations. As elevation increases, several factors can influence electrical equipment performance.
Lower air density affects external insulation conditions
Large temperature differences may influence equipment materials
Remote locations make maintenance more difficult
Harsh weather requires stronger environmental protection
Because of these challenges, ordinary medium voltage equipment may not always be the best choice. Power systems in these areas require equipment with better adaptability and stable operation capability.
Our High Altitude Medium Voltage Switchgear is developed based on these real application needs. We consider environmental conditions during product design to ensure reliable performance in different regions.
The working principle of our SRM SF6 Inflatable Switch Cabinet is based on electrical switching, insulation protection, and fault control.
The main purpose of the switch cabinet is to control medium voltage power flow. Inside the cabinet, components such as load switches, circuit breakers, grounding switches, and busbars work together to manage electrical connections.
During normal operation, the equipment allows electricity to pass safely through the distribution system. When maintenance is required or a fault occurs, the switching mechanism can isolate the affected section to protect other equipment.
The most important feature of this product is the SF6 gas insulation system.
SF6 gas has excellent electrical insulation performance. Inside the sealed cabinet, it creates a stable insulation environment around electrical components.
This structure helps reduce the influence of external conditions such as:
High altitude environment
Dust and pollution
Humidity changes
Outdoor temperature variation
As a result, the equipment can maintain stable operation in locations where traditional switchgear may face more challenges.
Electrical safety is always our priority.
The SRM SF6 Inflatable Switch Cabinet includes protection functions that help prevent damage caused by abnormal electrical conditions such as overload and short circuit.
By quickly isolating fault areas, the equipment helps protect transformers, cables, and other connected electrical devices.
The biggest advantage of this product is its ability to adapt to complex environments.
Whether installed in mountain areas, high-altitude power stations, remote energy projects, or industrial sites with demanding conditions, our switch cabinet provides stable performance.
The sealed SF6 insulation structure reduces dependence on external air conditions, making it suitable for areas with special geographical conditions.
Installation space is often limited in substations and energy projects.
Our SF6 gas insulated switch cabinet adopts a compact design, helping customers reduce installation space requirements while maintaining reliable electrical performance.
Compared with traditional air insulated equipment, the compact structure provides more flexibility for project planning.
Medium voltage equipment must operate continuously and safely for many years.
Our product is designed with stable mechanical structure, reliable insulation performance, and strong electrical capability to support long-term operation.
For remote areas, maintenance efficiency is very important.
Because the main electrical components are protected inside a sealed cabinet, the equipment is less affected by dust, moisture, and external pollution.
This helps reduce inspection frequency and improves operation efficiency.
At Jihui Electric, we do not only manufacture electrical cabinets. We focus on creating products that solve real problems for customers.
Our High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet provides several practical advantages:
| Feature | Traditional Air Insulated Switch Cabinet | SRM SF6 Inflatable Switch Cabinet |
|---|---|---|
| Insulation Method | Depends on surrounding air conditions | Uses sealed SF6 gas insulation |
| High Altitude Adaptability | Requires additional design consideration | Designed for high-altitude applications |
| Installation Space | Usually requires larger space | Compact structure with smaller footprint |
| Environmental Protection | More affected by dust and humidity | Better protection through sealed design |
| Maintenance Demand | Requires more environmental inspection | Reduced maintenance requirements |
Source: Technical comparison based on common medium voltage switchgear design principles and Jihui Electric product engineering experience.
One of the important design goals of our product is maintaining reliable operation in high-altitude areas.
The SF6 insulation system provides a stable internal environment, helping the switch cabinet maintain electrical safety even when installed in locations with lower atmospheric pressure.
Today, renewable energy and distributed power systems are developing quickly.
Many solar and wind power projects are located in areas with complex terrain. These projects need medium voltage equipment that can work reliably with limited maintenance access.
Our High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet provides a practical solution for these modern energy applications.
During our cooperation with customers from different regions, we have found that every power project has its own challenges. Some projects need compact equipment because of limited space, while others require stronger environmental adaptability because they are located in mountains, remote areas, or special climate zones.
Our High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet is designed to meet these practical requirements. It provides reliable medium voltage power distribution for industries that need stable electricity supply and safe operation.
Power utilities are responsible for supplying electricity to cities, towns, and industrial areas. Their distribution networks often cover large geographic regions, including high-altitude and remote locations.
For these applications, equipment reliability is extremely important. A power failure can affect thousands of users and create significant economic losses.
Our SRM SF6 Inflatable Switch Cabinet helps utility companies improve network stability through reliable switching performance, strong insulation capability, and reduced environmental impact.
Solar power plants and wind farms are increasingly being built in areas with abundant natural resources, including mountains and high-altitude regions.
These projects usually require medium voltage switchgear to collect and distribute generated power safely.
Because renewable energy sites may be far from cities, maintenance access can be difficult. Our SF6 Gas Insulated Switch Cabinet provides a compact and reliable solution that helps operators manage power systems more efficiently.
Mining operations often take place in remote areas with challenging environments. Electrical equipment used in mining sites needs strong durability and reliable protection.
Our high altitude adaptable switch cabinet can support mining power distribution systems by providing stable medium voltage control and protection.
Modern factories depend on continuous power supply. Production lines, automation systems, and control equipment all require stable electricity.
Industries including machinery manufacturing, automotive production, chemical processing, and metal processing can benefit from reliable medium voltage distribution equipment.
By using our SRM SF6 Inflatable Switch Cabinet, industrial customers can improve power management and reduce unexpected downtime caused by electrical problems.
Railways, airports, ports, and urban infrastructure require safe and stable electrical systems.
The compact design of our medium voltage switchgear makes it suitable for projects where installation space is limited but reliable power supply is essential.
| Industry | Common Challenge | SRM SF6 Switch Cabinet Solution |
|---|---|---|
| Power Grid | Large distribution area and high reliability requirements | Stable switching and reliable insulation |
| Renewable Energy | Remote installation locations | Compact design and low maintenance needs |
| Mining | Harsh working environments | Strong environmental adaptability |
| Industrial Manufacturing | Continuous power demand | Reliable medium voltage protection |
| Infrastructure | Limited installation space | Space-saving gas insulated structure |
Source: Application analysis based on Jihui Electric product applications and common medium voltage power distribution requirements across industries.
At Jihui Electric, we believe that reliable electrical equipment starts with strict manufacturing control. A switch cabinet is not just a metal enclosure. Every internal component affects safety, performance, and service life.
Our production process covers material selection, precision assembly, electrical testing, and final inspection. Each step is carefully controlled to ensure that every unit delivered to customers meets project requirements.
The first step of manufacturing is selecting reliable materials and components.
We inspect important parts including metal structures, insulation materials, switching components, sealing parts, and control modules before they enter production.
This helps us reduce quality risks from the beginning.
The cabinet structure requires accurate processing because medium voltage equipment has strict requirements for mechanical strength and electrical safety.
Our production team follows standardized procedures during cutting, welding, surface treatment, and assembly.
The insulation system is one of the key parts of the SRM SF6 Inflatable Switch Cabinet.
During assembly, our technicians carefully check sealing performance and internal component installation to ensure reliable insulation.
A stable gas insulation environment helps the equipment maintain consistent performance during long-term operation.
Before shipment, every product completes factory inspection.
The testing process includes:
Insulation performance testing
Switching operation testing
Mechanical function inspection
Control system verification
Appearance and packaging inspection
Only products that pass inspection can be delivered to customers.
| Manufacturing Stage | Main Work | Quality Purpose |
|---|---|---|
| Component Inspection | Check raw materials and electrical parts | Ensure reliable product foundation |
| Assembly | Install mechanical and electrical components | Maintain structural accuracy |
| Testing | Verify insulation and operation performance | Confirm safe operation |
| Final Inspection | Complete product checking before shipment | Ensure delivery quality |
Source: Manufacturing and inspection information based on Jihui Electric production management procedures.
Choosing a medium voltage switchgear supplier is an important decision. Customers need not only a product but also technical support, reliable delivery, and long-term cooperation.
At Jihui Electric, we focus on providing complete power distribution solutions from design support to final delivery.
We specialize in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range includes:
Ring Main Units (RMU)
Combination Transformers
Gas Insulated Switchgear
To ensure consistent product quality, we operate according to international management standards.
Our certifications include:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
Different countries and projects have different technical standards.
Our engineering team communicates with customers to understand:
Voltage requirements
Installation environment
Altitude conditions
Project standards
Operating requirements
Based on this information, we provide suitable SRM SF6 Inflatable Switch Cabinet solutions.
For international customers, we provide complete export support.
Products are professionally packaged with protection against moisture, collision, and transportation risks.
According to project requirements, we arrange suitable transportation methods including sea shipping, land transportation, or combined transportation solutions.
The main advantage is its ability to maintain reliable medium voltage operation in high-altitude and challenging environments. The SF6 insulation structure provides stable electrical performance under special installation conditions.
SF6 insulation provides excellent electrical insulation performance and allows the switch cabinet to have a compact structure. It also helps reduce the influence of external environmental conditions.
Yes. We provide customized solutions according to voltage level, project requirements, installation environment, and customer technical specifications.
The product can be used in power grids, renewable energy, mining, industrial manufacturing, transportation infrastructure, and urban power distribution projects.
Jihui Electric has obtained ISO9001, ISO14001, and ISO45001 certifications, demonstrating our commitment to quality control, environmental responsibility, and safe production.
As power systems continue to develop, customers need electrical equipment that can handle more complex environments and higher reliability requirements.
Our High Altitude Adaptable SRM SF6 Inflatable Switch Cabinet combines compact design, reliable SF6 insulation technology, strong environmental adaptability, and professional manufacturing experience.
At Jihui Electric, we continue improving our technology and production capability to provide safe, efficient, and dependable medium voltage power distribution solutions for customers around the world.
If you are searching for a reliable SRM SF6 Inflatable Switch Cabinet manufacturer, a customized High Altitude Medium Voltage Switchgear solution, or a professional supplier of SF6 Gas Insulated Switch Cabinet, Jihui Electric is ready to support your project with professional service and technical experience.
