I. Overview

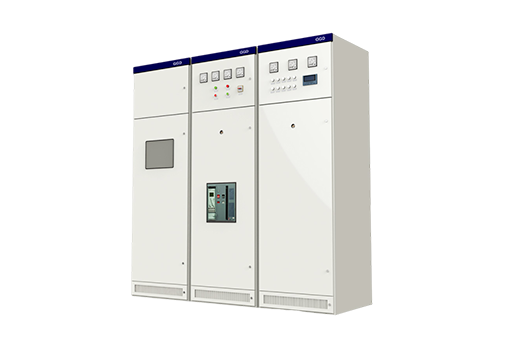

The GGD type AC low-voltage distribution cabinet is suitable for AC 50Hz power users such as power plants, substations, factories, and mining enterprises,
A distribution system with a rated working voltage of 380V and a rated working current up to 3150A, used as power, lighting, and distribution equipment
Used for the conversion, distribution, and control of electrical energy.
The GGD type AC low-voltage distribution cabinet is designed according to the requirements of the superior authorities of the Ministry of Energy, as well as the power users and design departments,
A new type of low-voltage distribution cabinet designed based on the principles of safety, economy, rationality, and reliability. The product has high breaking ability and dynamic heating
Good stability, flexible electrical scheme, convenient combination, series, strong practicality, novel structure, high protection level, etc,
Can be used as a replacement product for low-voltage switchgear.
GGD type AC low-voltage distribution cabinet complies with IEC439 "Low voltage switchgear and control equipment" and GB7251 "Low voltage
Standards such as "Complete Set of Switchgear".
II. Terms of Use
1. The ambient air temperature shall not exceed+40 ℃, not be lower than -5 ℃, and the average temperature within 24 hours shall not exceed+35 ℃;
2. Indoor installation and use, the altitude of the usage location shall not exceed 2000m;
3. The relative humidity of the surrounding air should not exceed 50% at a maximum temperature of+40 ℃, and should be allowed at lower temperatures
Considering the possibility of occasional condensation due to temperature changes, a large relative temperature (e.g. 90% at+2C ℃) may be considered;
4. The inclination angle between the equipment installation and the vertical plane shall not exceed 5 °;
5. The equipment should be installed in places without severe vibration and impact, as well as in places where electrical components are not susceptible to corrosion;
6. When users have special requirements, they can negotiate with the manufacturer to resolve them.
III. Structural characteristics
The cabinet body of GGD type AC low-voltage distribution cabinet adopts the form of a universal cabinet, and the frame is assembled by local welding of 8MF cold-formed steel. The frame parts and special supporting parts are supplied by designated steel production factories to ensure the accuracy and quality of the cabinet body. The components of the universal cabinet are designed according to the modular principle and have 20 installation holes. The high universal coefficient enables factories to achieve pre production, shortening the production cycle and improving work efficiency.
The design of GGD cabinets fully considers the heat dissipation issues during cabinet operation. There are different numbers of heat dissipation slots on both ends of the cabinet. When the electrical components inside the cabinet heat up, the hot air rises and is discharged through the upper slot, while the cold air is continuously replenished into the cabinet through the lower slot, forming a natural ventilation channel from bottom to top in the sealed cabinet, achieving the purpose of heat dissipation.
According to the requirements of modern industrial product design, the GGD cabinet adopts the golden ratio method to design the cabinet body shape and the division dimensions of each part, making the whole cabinet beautiful and elegant, with a new look. The cabinet door is connected to the frame with a pivot type movable hinge, which is easy to install and disassemble. The folded edge of the door is embedded with a mountain shaped rubber strip. When closing the door, the strip between the door and the frame has a certain compression stroke, which can prevent direct collision between the door and the cabinet, and also improve the protection level of the door.
The instrument door equipped with electrical components is connected to the frame with multiple strands of soft copper wire, and the installation parts inside the cabinet are connected to the frame with rolling screws, forming a complete grounding protection system for the entire cabinet.
The cabinet is coated with polyester orange baked paint, which has strong adhesion and good texture. The entire cabinet has a matte color tone, avoiding glare effects and creating a comfortable visual environment for the on duty personnel.
The top cover of the cabinet can be removed when needed to facilitate the assembly and adjustment of the main busbar on site. The four corners of the cabinet top are equipped with lifting rings for lifting and shipping.
The protection level of the cabinet is IP30, and users can also choose between IP20-IP40 according to the requirements of the usage environment.
| Model | Size |
| GGD | 100*60*220cm |
High Quality GGD Series Low Voltage Switchgear 2500A 380V for Reliable Power Distribution
At Jihui Electric Group Co., Ltd., we focus on designing and manufacturing reliable power transmission and distribution equipment for industrial and infrastructure applications. With years of experience in the electrical equipment industry, we understand that stable power supply is not only about equipment performance, but also about safety, durability, and long-term operating value.
Our High Quality GGD Series Low Voltage Switchgear 2500A 380V is developed for customers who need safe and efficient low-voltage power distribution solutions. It is widely used in factories, commercial buildings, renewable energy projects, industrial parks, and public infrastructure.
The GGD series low voltage switchgear combines a strong cabinet structure, reliable electrical components, and practical design concepts. It helps users control, distribute, and protect electrical power systems while making operation and maintenance easier.
As a manufacturer specializing in medium and low voltage power equipment up to 35kV, we provide not only standard products but also customized solutions according to different project requirements.
High Quality GGD Series Low Voltage Switchgear 2500A 380V is a low-voltage electrical distribution cabinet designed for receiving, controlling, and distributing electrical energy in power systems.
The "GGD" series represents a fixed-type low-voltage switchgear structure commonly used in industrial power distribution applications. The equipment is designed for AC low-voltage systems and provides reliable protection and control for electrical circuits.
The rated current of 2500A means that this switchgear can handle electrical systems requiring high current distribution capacity. The 380V voltage level makes it suitable for many industrial and commercial power systems.
In daily applications, our customers use GGD low voltage switchgear for:
Power distribution in manufacturing factories
Electrical control systems in industrial plants
Energy management projects
Commercial building power supply
Infrastructure electrical systems
Compared with simple distribution cabinets, professional low voltage switchgear provides better protection, clearer electrical management, and stronger adaptability for complex working conditions.
The working principle of GGD low voltage switchgear is simple: it receives electrical power from the main power source and safely distributes electricity to different loads.
When electricity enters the switchgear, the incoming unit first receives power through the main circuit. The internal busbar system then transfers electrical energy to different outgoing circuits.
Each outgoing circuit can supply power to different equipment, such as motors, production machines, lighting systems, or other electrical devices.
Inside the cabinet, protection components monitor the electrical conditions. If abnormal situations occur, such as overload or short circuit, protective devices can disconnect the circuit to help prevent equipment damage.
This working method allows users to manage electricity safely while improving system reliability.
During our manufacturing process, we pay close attention to every structural detail because a switchgear cabinet must remain stable under long-term operation.
The cabinet frame is the basic structure of the equipment. It provides mechanical support and protects internal electrical components from external impact.
The busbar system is responsible for electrical energy transmission inside the cabinet. High-quality conductive materials and proper installation methods help improve electrical performance.
The cabinet can include circuit breakers, contactors, meters, protection devices, and control components according to customer requirements.
The protection system helps monitor electrical conditions and improves operation safety during daily use.
| Specification | GGD Series Low Voltage Switchgear |
|---|---|
| Rated Voltage | 380V Low Voltage Power System |
| Rated Current | Up to 2500A |
| Application Type | Power Distribution and Electrical Control |
| Installation Environment | Industrial, Commercial and Infrastructure Applications |
| Main Function | Power Distribution, Protection and Control |
Source: Technical parameters are based on GGD series low-voltage switchgear design requirements and Jihui Electric product specifications.
For industrial customers, equipment reliability is always important. Our GGD low voltage switchgear is designed with stable electrical performance to support continuous operation.
We select suitable electrical components and perform strict inspections during production to ensure each unit meets project requirements.
A switchgear cabinet needs to work in different environments, including factories, power stations, and industrial facilities.
Our GGD series adopts a practical cabinet structure that provides good mechanical strength and helps protect internal components during transportation and operation.
Different customers have different electrical requirements. Some projects need more outgoing circuits, while others focus on motor control or power distribution.
We can customize internal layouts and component configurations according to customer drawings and technical requirements.
Simple maintenance helps customers reduce operating costs. Our GGD switchgear provides organized internal arrangement, making inspection and maintenance more convenient for engineers.
From our manufacturing experience, we know that good electrical equipment needs a balance between performance, safety, and practical use.
| Technical Advantage | Value for Customers |
|---|---|
| 2500A High Current Capacity | Suitable for demanding industrial power distribution systems |
| 380V Low Voltage Application | Compatible with common industrial electrical systems |
| Reliable Protection Design | Improves electrical operation safety |
| Customized Configuration | Matches different project requirements |
| Professional Manufacturing Process | Ensures stable product quality |
Source: Performance descriptions are based on product engineering practices, customer application feedback, and low-voltage switchgear manufacturing standards.
Many industrial companies depend on continuous electricity every day. A small electrical problem can affect production schedules, increase maintenance costs, and reduce efficiency.
This is why selecting suitable equipment such as GGD Series Low Voltage Switchgear 2500A 380V is important.
A reliable switchgear system helps companies:
Improve electrical safety
Reduce unexpected shutdown risks
Manage power distribution more efficiently
Support future system expansion
Improve overall operation stability
During our cooperation with customers from different industries, we have learned that every project has its own power distribution challenges. Some customers need stable electricity for continuous production, while others need flexible solutions for large infrastructure systems.
Our High Quality GGD Series Low Voltage Switchgear 2500A 380V is designed to meet these different requirements. With reliable electrical performance and practical structure, it provides a safe power distribution solution for various industries.
Factories usually operate many electrical machines every day, including motors, production lines, automation equipment, and auxiliary systems. Stable electricity is essential because even a short power interruption may affect production efficiency.
Our GGD low voltage switchgear is commonly used in manufacturing plants to distribute electrical power safely and efficiently. The 2500A rated current capacity makes it suitable for industrial applications requiring strong power distribution capability.
Typical applications include:
Automotive manufacturing plants
Machinery production facilities
Metal processing factories
Food processing plants
Chemical production facilities
The renewable energy industry is developing rapidly, and solar power plants, energy storage systems, and other clean energy projects require reliable electrical equipment.
Low voltage switchgear plays an important role in controlling and distributing electrical energy after power generation. Our GGD series switchgear helps improve system safety and supports efficient energy management.
Commercial buildings such as shopping centers, office buildings, hotels, and public facilities require continuous electricity for lighting, elevators, air conditioning systems, and daily operations.
Our GGD low voltage distribution cabinet provides organized power management and reliable protection for commercial electrical systems.
Large infrastructure projects usually have strict requirements for equipment reliability and service life. Transportation stations, industrial parks, and municipal facilities need stable electrical systems to support long-term operation.
With professional manufacturing and quality control, our GGD series low voltage switchgear provides dependable support for these applications.
| Industry | Main Power Requirement | GGD Switchgear Application Value |
|---|---|---|
| Manufacturing | Stable power supply for production equipment | Reliable distribution and protection |
| Renewable Energy | Safe energy transmission management | Supports efficient power control |
| Commercial Buildings | Continuous electricity operation | Organized power distribution |
| Infrastructure | Long service life and stable operation | Suitable for large projects |
Source: Application information is based on Jihui Electric project experience and common industry requirements for low-voltage power distribution systems.
At Jihui Electric, we believe that reliable products come from careful manufacturing. A high-quality switchgear cabinet is not created by one step; it requires professional design, accurate production, strict inspection, and experienced technicians.
From the first engineering discussion to final delivery, we control every important process to ensure that customers receive equipment with stable performance.
Before manufacturing begins, our engineering team communicates with customers to understand project requirements, including electrical parameters, installation conditions, application environment, and special functions.
Based on these details, we design suitable configurations for the GGD low voltage switchgear, ensuring the product matches the customer's actual operating conditions.
The quality of materials directly affects the service life of electrical equipment. We carefully check materials and components before production.
This process helps ensure that cabinet materials, electrical components, and related parts meet our manufacturing requirements.
During cabinet production, our technicians complete metal processing, structural assembly, electrical installation, and internal wiring according to technical drawings.
Every connection point is carefully checked because accurate assembly directly affects electrical performance and operation safety.
Before shipment, every GGD Series Low Voltage Switchgear unit undergoes inspection and testing.
Our testing process includes:
Appearance inspection
Electrical connection checking
Insulation performance testing
Functional verification
Final quality confirmation
Only products that pass inspection are prepared for delivery.
| Manufacturing Stage | Main Process | Quality Objective |
|---|---|---|
| Engineering Design | Technical solution confirmation | Meet customer requirements |
| Material Preparation | Component inspection | Ensure reliable materials |
| Assembly | Cabinet and electrical installation | Stable equipment performance |
| Testing | Electrical and functional inspection | Safe operation before delivery |
For electrical equipment, quality is not only about appearance. More importantly, it is about whether the equipment can operate safely after years of service.
At Jihui Electric, we have established a complete quality management system covering product design, manufacturing, inspection, and delivery.
Our company has obtained:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These management systems help us maintain consistent production standards and provide reliable electrical solutions for customers worldwide.
Jihui Electric Group Co., Ltd. specializes in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range includes:
Low voltage switchgear
Ring main units
Combination transformers
This complete product range allows us to provide integrated power solutions instead of only individual equipment.
We understand that different customers have different requirements. A standard product may not always fit every project.
Our engineering team can adjust product structure, electrical configuration, and technical details based on customer drawings and project specifications.
For overseas customers, we provide professional export support, including production coordination, quality inspection, protective packaging, and transportation arrangements.
According to product size and destination, we can arrange sea transportation, land transportation, or multimodal transportation solutions.
We believe that cooperation does not end after delivery. Our team provides technical communication and after-sales support to help customers use products smoothly.
Our goal is to build long-term partnerships with power companies, engineering contractors, equipment integrators, renewable energy developers, and industrial enterprises.
GGD Series Low Voltage Switchgear is mainly used for receiving, distributing, controlling, and protecting electric power in low-voltage systems. It is widely applied in factories, buildings, energy projects, and infrastructure facilities.
2500A represents the rated current capacity of the switchgear, while 380V represents the rated voltage level. These parameters indicate that the equipment is suitable for low-voltage systems requiring high current distribution.
Yes. We can customize cabinet structure, internal components, electrical configuration, and other technical requirements according to customer project needs.
It is commonly used in industrial manufacturing, renewable energy, commercial buildings, transportation, mining, petrochemical, and public infrastructure projects.
We control quality through professional design, material inspection, manufacturing management, electrical testing, and final inspection before shipment. Our ISO9001, ISO14001, and ISO45001 management systems support continuous quality improvement.
A stable electrical system requires equipment that can perform safely every day. Our High Quality GGD Series Low Voltage Switchgear 2500A 380V is designed to provide reliable power distribution, convenient operation, and long-term service performance.
With professional manufacturing experience, strict quality management, and customized project support, Jihui Electric is committed to providing dependable electrical solutions for customers around the world.
Whether your project is an industrial factory, renewable energy facility, commercial building, or infrastructure system, we can provide suitable low voltage switchgear solutions based on your actual requirements.
