I. Overview
GCS devices are suitable for power distribution systems in industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. In places with high automation levels such as large power plants and petrochemical systems that require computer interfaces, this low-voltage complete distribution device is used for power distribution, centralized control of electric motors, and reactive power compensation in power generation and supply systems with a three-phase AC frequency of 50 (60) Hz, rated operating voltage of 380V (400V), (660V), and rated current of 6300A and below.
II. Standard
IEC439-1 Low voltage switchgear and control equipment
GB7251 Low Voltage Switchgear Sets
ZBK360001 Low voltage withdrawable switchgear complete set
III. Functional unit
The module height of the drawer is 160mm. It is divided into 5 size series: 1/2 unit, 1 unit, 3/2 unit, 2 unit, 3 unit. Unit circuit rated current of 400A or below;
2. The drawer only changes in height dimension, and its width and depth dimensions remain unchanged. Drawers with the same functional unit have good interchangeability;
3. Each MCC cabinet can accommodate up to 11 drawers per unit or 22 drawers per 1/2 unit. More than one unit of drawers adopts a multifunctional back panel;
4. The drawer inlet and outlet wires use different numbers of same specification sheet structure plugs according to the current size;
The connection between the 5.1/2 unit drawer and the cable compartment adopts a backboard structure ZJ-2 type connector;
6. The transfer between the unit drawer and the cable compartment adopts ZJ-1 type transfer fittings with the same size rod or tube structure according to the current grading;
7. The drawer unit is equipped with a mechanical interlocking device.
IV. Device features
1. Increase the thermal capacity of the adapter and significantly reduce the additional temperature rise caused by the temperature rise of the adapter to the connectors, cable heads, and partitions;
2. The separation between functional units and compartments is clear and reliable, and the failure of one unit does not affect the operation of other units, so that the failure is limited to the minimum range;
3. The flat arrangement of busbars ensures good dynamic and thermal stability of the device, and can withstand the impact of 80/176kA short-circuit current;
4. The number of circuits in a single MCC cabinet can reach up to 22, fully considering the needs of automated electric door (machine) groups in industries such as large single machine capacity power generation and petrochemical systems;
5. The connection between the device and external cables is completed in the cable compartment, and the cables can enter and exit up and down. The current transformer is installed in the cable compartment for easy installation and maintenance;
6. In the same power distribution system, the short-circuit current can be limited by matching the current limiting reactor, stabilizing the bus voltage at a certain value, and partially reducing the requirements for the short-circuit strength of components;
7. The drawer unit has a sufficient number of secondary connectors (32 pairs for 1 unit and above, and 20 pairs for 1/2 unit) to meet the requirements for the number of contact points for computer interfaces and self-control circuits.
| Model | Size |
| GCS | 100*100*220cm |

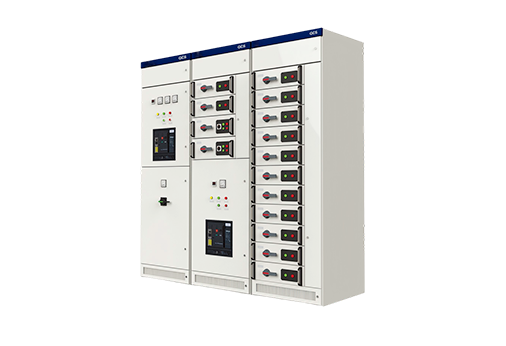

GCS low-voltage withdrawable switchgear for Reliable Power Distribution Solutions
As a professional manufacturer of medium and Low voltage power distribution equipment, we at Jihui Electric Group Co., Ltd. have been focusing on providing reliable electrical solutions for industrial and infrastructure projects. Our GCS low-voltage withdrawable switchgear is designed for modern power distribution systems that require safety, flexibility, easy maintenance, and stable operation.
With years of experience in electrical equipment manufacturing, we understand that every power system has different requirements. A factory, renewable energy project, commercial building, or transportation facility needs not only high-quality switchgear but also a solution that can reduce downtime and simplify future maintenance. This is why we developed GCS low-voltage withdrawable switchgear with a modular design that allows customers to manage power distribution more efficiently.
Our GCS switchgear is widely used in low-voltage power distribution, motor control, industrial automation, and energy management systems. It combines advanced electrical design, strong mechanical structure, and flexible configuration options to meet different project requirements.
GCS low-voltage withdrawable switchgear is an electrical distribution cabinet designed for controlling, protecting, and distributing low-voltage power. The word "withdrawable" means that the functional units inside the cabinet can be removed or replaced without changing the complete switchgear structure.
Compared with traditional fixed switchgear, the withdrawable design provides more convenience during operation and maintenance. When a circuit component needs inspection or replacement, engineers can remove the corresponding unit quickly, reducing maintenance time and improving system availability.
In practical applications, GCS low-voltage withdrawable switchgear is commonly installed in power plants, factories, industrial parks, data centers, commercial buildings, transportation facilities, and renewable energy projects. It helps operators achieve safe electricity distribution while improving equipment management efficiency.
| Item | GCS Low-Voltage Withdrawable Switchgear | Traditional Fixed Switchgear |
|---|---|---|
| Maintenance Method | Withdrawable modules allow faster inspection and replacement | Requires more shutdown time for maintenance |
| Flexibility | Supports multiple functional configurations | Limited modification after installation |
| Application | Industrial plants, energy projects, buildings, infrastructure | Mainly standard distribution applications |
| Space Utilization | Compact modular structure | Usually requires fixed arrangement |
Source: Technical comparison based on common low-voltage switchgear design practices and IEC 61439 low-voltage switchgear assembly requirements.
The working principle of GCS low-voltage withdrawable switchgear is based on receiving electrical power from the incoming line and safely distributing it to different electrical loads. Inside the cabinet, different functional units work together to control current flow and protect electrical equipment.
When electrical power enters the switchgear, the incoming unit first receives and distributes power through internal busbars. The withdrawable functional units then send electricity to different circuits, such as motors, lighting systems, production equipment, and other electrical devices.
Each withdrawable unit normally includes components such as circuit breakers, contactors, protection devices, and control equipment. These components monitor operating conditions and provide protection against overload, short circuit, and abnormal electrical situations.
The modular structure makes it easier for engineers to add, remove, or replace functional units according to project changes. For companies expanding production capacity, this flexibility can reduce future upgrade costs.
Based on our manufacturing experience, a complete GCS low-voltage withdrawable switchgear system mainly includes the following parts:
Cabinet Frame: The main mechanical structure provides support and protection for all internal electrical components.
Busbar System: Conductive components responsible for transferring electrical energy inside the switchgear.
Withdrawable Functional Units: Modular units that can be moved in and out for operation and maintenance.
Protection Components: Devices including circuit breakers and protective relays that improve system safety.
Control System: Components used for monitoring and controlling electrical equipment.
One of the biggest advantages of our GCS low-voltage withdrawable switchgear is the modular structure. Different functional units can be configured according to customer requirements, including feeder units, motor control units, and power distribution units.
This design helps customers reduce installation difficulties and improve maintenance efficiency. When equipment needs service, technicians can quickly access the related module instead of replacing the entire cabinet.
Safety is always our first consideration during product development. Our GCS switchgear adopts reliable insulation design, strong electrical connections, and protective structures to ensure stable operation under different working conditions.
The equipment is designed to handle daily industrial operation where continuous power supply is important. It provides protection for electrical systems and helps reduce risks caused by electrical faults.
Different industries have different power requirements. A manufacturing factory may need motor control solutions, while a commercial building may focus on power distribution and safety management.
Our GCS low-voltage withdrawable switchgear supports customized configurations based on voltage level, current capacity, installation environment, and project requirements.
Traditional electrical equipment maintenance can require long shutdown periods. With withdrawable technology, operators can quickly check or replace individual units, helping improve system operation efficiency.
For large industrial projects, reducing maintenance time means reducing production interruption and improving overall productivity.
During our manufacturing process, we focus on electrical safety, mechanical strength, and long-term operating reliability. Our engineers continuously optimize product structure based on customer feedback and application experience.
| Technical Feature | Description | Customer Benefit |
|---|---|---|
| Modular Structure | Flexible functional unit combination | Easy expansion and maintenance |
| Strong Insulation Design | Reliable insulation between electrical components | Improved operation safety |
| Withdrawable System | Movable electrical modules | Reduced maintenance time |
| Compact Cabinet Design | Optimized internal arrangement | Saves installation space |
Source: Product engineering practices are based on IEC 61439 low-voltage switchgear and controlgear assembly standards, combined with Jihui Electric manufacturing experience.
At Jihui Electric, quality control is integrated into every production stage. We follow strict manufacturing procedures from raw material inspection to final product testing.
Our company has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.
Before delivery, each GCS low-voltage withdrawable switchgear unit undergoes inspection and performance testing to ensure it meets customer technical requirements and international project expectations.
We believe that reliable electrical equipment is not only about product manufacturing. It is also about understanding customer applications, providing professional technical support, and creating long-term value through stable power solutions.
During our years of serving customers from different industries, we have found that reliable low-voltage power distribution is one of the key foundations for stable business operation. Our GCS low-voltage withdrawable switchgear is designed to support various application environments where safety, efficiency, and easy maintenance are important.
Because of its flexible configuration and reliable performance, GCS switchgear can be applied in many fields, including industrial manufacturing, energy projects, transportation systems, commercial buildings, and infrastructure construction.
Factories usually operate many types of electrical equipment, including motors, production lines, automation systems, and auxiliary equipment. Any unexpected power interruption can affect production efficiency and increase operating costs.
Our GCS low-voltage withdrawable switchgear provides stable power distribution and motor control functions for manufacturing facilities. The withdrawable design allows maintenance teams to inspect equipment faster and reduce unnecessary production downtime.
Typical applications include automotive factories, machinery manufacturing plants, metal processing facilities, chemical plants, and food processing factories.
With the rapid development of renewable energy, solar power plants and other clean energy projects require reliable electrical distribution equipment. Low-voltage switchgear plays an important role in managing power output and protecting electrical systems.
Our GCS low-voltage withdrawable switchgear can be integrated into renewable energy distribution systems, supporting safe energy transmission and efficient operation.
Modern buildings require stable electricity for lighting, elevators, air conditioning systems, security systems, and other facilities. Power distribution equipment must operate safely while allowing convenient maintenance.
GCS switchgear provides a compact and organized solution for commercial buildings, shopping centers, office buildings, airports, and public facilities.
Transportation systems such as rail transit stations and logistics centers depend on continuous power supply. Electrical equipment must maintain stable performance even under demanding operating conditions.
Our low-voltage withdrawable switchgear helps improve power management efficiency and supports reliable operation of transportation infrastructure.
| Application Industry | Main Electrical Requirement | GCS Switchgear Advantage |
|---|---|---|
| Manufacturing Industry | Continuous power supply and motor control | Flexible modules and easy maintenance |
| Renewable Energy | Stable power distribution and protection | Reliable electrical management |
| Commercial Buildings | Safe and organized power distribution | Compact structure and high adaptability |
| Infrastructure Projects | Long-term stable operation | Strong durability and customized solutions |
Source: Application analysis based on common industry requirements for low-voltage power distribution systems and Jihui Electric project experience.
At Jihui Electric, we believe that product reliability starts from every small manufacturing detail. A high-quality switchgear cabinet requires not only good design but also strict production management.
From material selection to final inspection, our production team follows controlled procedures to ensure each GCS low-voltage withdrawable switchgear meets technical requirements.
Before production begins, our engineers communicate with customers to understand project requirements, including voltage level, current capacity, installation environment, functional configuration, and operation requirements.
Based on these details, we provide a suitable switchgear solution to ensure the equipment matches the actual application conditions.
The cabinet frame is manufactured using high-quality materials and precision processing technology. The structure needs to provide mechanical strength while maintaining convenient installation and maintenance access.
Our production team carefully controls dimensions and assembly accuracy to ensure smooth installation of internal components.
During assembly, professional technicians install busbars, circuit breakers, protection devices, control components, and withdrawable units according to engineering drawings.
Every connection point is checked carefully because electrical contact quality directly affects long-term equipment performance.
Before delivery, each GCS low-voltage withdrawable switchgear unit goes through inspection procedures, including appearance checking, electrical performance testing, insulation verification, and functional testing.
These procedures help ensure that customers receive equipment ready for reliable operation after installation.
| Production Stage | Main Work | Quality Control Focus |
|---|---|---|
| Design | Technical solution confirmation | Project compatibility |
| Fabrication | Cabinet frame processing | Structural accuracy |
| Assembly | Electrical component installation | Connection reliability |
| Testing | Performance inspection | Safety and operation stability |
Choosing electrical equipment is not only about purchasing a product. It is about selecting a reliable partner who understands your project requirements and can provide long-term support.
Jihui Electric Group Co., Ltd. specializes in medium and low voltage power transmission and distribution equipment up to 35kV. We provide complete electrical solutions including Cable accessories, ring main units, Prefabricated Substations, transformers, SF6 load switches, Vacuum circuit breakers, and low-voltage switchgear.
Our experience allows us to understand different project environments and provide practical solutions instead of only standard products.
We have established quality management systems according to ISO9001, ISO14001, and ISO45001 standards. Quality control runs through product design, manufacturing, testing, and delivery.
For international customers, we provide professional documentation, technical communication, and export support to make cooperation smoother.
Every project has different requirements. Some customers need standard distribution systems, while others need customized solutions according to site conditions.
Our engineering team can adjust product configuration based on customer needs, helping customers achieve better system compatibility and operating efficiency.
We understand that project schedules are important. Therefore, we organize production according to order requirements and provide professional packaging and transportation solutions.
Products are packed with protective measures including moisture prevention, impact protection, and safe transport preparation to ensure equipment arrives in good condition.
GCS low-voltage withdrawable switchgear is mainly used for electrical power distribution, circuit control, and protection in low-voltage systems. It helps distribute electricity safely to different loads while providing convenient maintenance.
The main advantage is easier maintenance. Functional units can be removed and replaced more conveniently, which helps reduce maintenance time and improves system flexibility.
It is widely used in industrial factories, renewable energy projects, commercial buildings, transportation facilities, power distribution stations, and infrastructure projects.
Yes. We provide customized solutions based on customer requirements, including electrical parameters, cabinet configuration, installation conditions, and project specifications.
We control quality through the entire manufacturing process, including material inspection, production control, electrical testing, and final inspection before shipment. Our ISO9001, ISO14001, and ISO45001 certifications support our quality management system.
As power systems become more complex, companies need electrical equipment that provides safety, flexibility, and long-term reliability. Our GCS low-voltage withdrawable switchgear is developed to meet these requirements with practical design, stable performance, and convenient maintenance.
At Jihui Electric, we combine engineering experience, manufacturing capability, and customer-focused service to deliver reliable power distribution solutions for industries worldwide.
Whether you need equipment for industrial production, renewable energy, infrastructure construction, or commercial facilities, we are ready to provide professional support and customized solutions for your project.
