I. Overview:
The GGJ low-voltage reactive power intelligent compensation device adopts computer-aided design (CAD), introduces microcomputer control, and implements intelligent tracking compensation for reactive power. Its structure is reasonable, technology is advanced, and it is widely used in low-voltage power grids to improve power factor, reduce reactive power loss, and improve power supply quality. It is a new generation of energy-saving products. Dedicated to reactive power compensation for three-phase transformers with a capacity of 130-600KVA.
II. Product Features
1. It is controlled by an intelligent controller and has complete functions. Reliable performance, automatic compensation method; Can increase the power factor to 0.9 or above;
2. Real time display of power factor of the power grid, display range: lag (0.00-0.99), lead (0.00-0.99);
3. It has various comprehensive protection functions such as overvoltage, subharmonics, overcompensation, system faults, phase loss, overload, etc;
4. Memorize the set parameters, and the system will not lose the parameters after a power outage. After the power grid returns to normal, it will automatically enter the operating state without the need for personnel to be on duty;
5. According to the load balance of the power grid, phase separation compensation or mixed compensation can be adopted;
6. Strong anti-interference ability, able to withstand 2000V interference pulses directly input from the power grid, higher than national professional standards.
III. Distribution network monitoring function
Real time measurement and hourly recording of three-phase voltage, current, frequency, active power, reactive power, power factor, active energy, and reactive energy on the low-voltage side of transformers; Voltage and current total distortion rate and 2-25th harmonic content; Equipped with RS-232 and RS-485 interfaces, it can record data from handheld computers and also achieve wireless meter reading, device testing, parameter setting, real-time measurement data, and record data reading through remote communication functions; Data analysis function: It can analyze, process, and perform statistical queries on operational load data; Comprehensive analysis of power supply quality, calculation of voltage qualification rate, power supply load rate, reliability rate, and maximum load rate; Query power factor, active power, and reactive power in different time periods; Draw curves of voltage, current, power factor, etc. for each phase; Print comprehensive analysis and statistical reports.
| Model | Size |
| GGJ | 100*80*220cm |

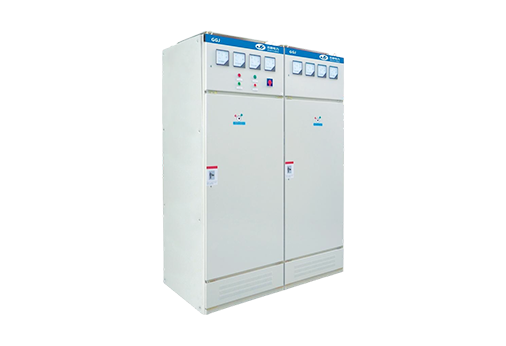

GGJ Low Voltage Reactive Power Intelligent Compensation Device for Efficient Power Management
At Jihui Electric Group Co., Ltd., we focus on developing and manufacturing reliable power transmission and distribution equipment for industrial and infrastructure applications. Over the years, we have worked with power companies, engineering contractors, equipment integrators, industrial enterprises, and renewable energy projects to provide practical electrical solutions.
With increasing electricity demand and higher requirements for energy efficiency, improving power quality has become an important task for many companies. Our GGJ Low Voltage Reactive Power Intelligent Compensation Device is designed to help customers improve power factor, reduce reactive power loss, and achieve more efficient electrical system operation.
Unlike traditional compensation equipment that requires frequent manual adjustment, our intelligent reactive power compensation device uses automatic control technology to monitor electrical conditions and adjust compensation capacity according to actual demand.
For factories, commercial buildings, industrial parks, and energy projects, stable electrical operation is not only about saving electricity costs. It is also about protecting equipment, improving system stability, and creating long-term operating value.
The GGJ Low Voltage Reactive Power Intelligent Compensation Device is an electrical equipment system used to automatically compensate reactive power in low-voltage power distribution networks.
In an electrical system, many devices such as motors, transformers, and industrial machines require reactive power to create magnetic fields during operation. However, excessive reactive power increases current flow and causes additional losses in the power network.
The main purpose of GGJ intelligent compensation equipment is to provide appropriate reactive power compensation, improve power factor, reduce unnecessary energy consumption, and enhance the efficiency of the entire electrical system.
In simple words, it works like an intelligent energy assistant inside the power system. It observes electricity conditions, identifies compensation requirements, and automatically adjusts the system to maintain better operating performance.
Industrial factory power systems
Commercial building electrical networks
Manufacturing production lines
Renewable energy distribution systems
Industrial parks and infrastructure projects
Power distribution stations
The working principle of the GGJ low voltage reactive power intelligent compensation device is based on real-time monitoring and automatic adjustment.
When electrical loads operate, the device detects important parameters such as current, voltage, and power factor through measurement components. The intelligent controller analyzes these signals and determines whether reactive power compensation is required.
If the power factor is lower than the preset value, the system automatically switches capacitor groups into operation. These capacitors provide reactive power compensation to reduce unnecessary reactive current.
When the compensation demand decreases, the controller can disconnect unnecessary capacitor groups to avoid over-compensation.
This automatic process allows the equipment to maintain stable power quality without continuous manual operation.
Based on our manufacturing experience, a reliable reactive power compensation system depends on the coordination of several key components.
The controller is the brain of the compensation system. It collects electrical data, calculates compensation requirements, and controls capacitor switching operations.
Compared with traditional manual adjustment methods, intelligent control provides faster response and more accurate compensation.
Capacitor units provide reactive power compensation for the electrical system. Different numbers of capacitor groups can be configured according to project requirements.
Switching components control the connection and disconnection of capacitor groups. Reliable switching performance helps improve equipment service life.
The protection system helps prevent abnormal conditions such as overcurrent, overheating, and electrical faults, improving operation safety.
| Component | Main Function | Customer Benefit |
|---|---|---|
| Intelligent Controller | Monitors electrical parameters and controls compensation | Automatic and accurate adjustment |
| Capacitor Unit | Provides reactive power compensation | Improves power factor |
| Switching Device | Controls capacitor operation | Stable compensation performance |
| Protection System | Protects electrical components | Safer system operation |
Source: Component descriptions are based on GGJ series reactive power compensation equipment design practices and Jihui Electric engineering experience.
One of the most important advantages of our GGJ device is automatic regulation. The equipment can adjust compensation capacity according to real electrical conditions.
This reduces the need for manual operation and helps maintain a more stable power factor.
Poor power factor means electrical systems need more current to deliver the same useful power. This can increase energy losses and place additional stress on electrical equipment.
By providing reactive power compensation, our device helps reduce unnecessary current flow and improve energy utilization.
Modern electrical systems need better visibility. Our GGJ compensation device can monitor operating conditions and support more effective energy management.
This allows operators to understand system performance and make better decisions.
Different projects have different requirements. A small commercial building and a large industrial factory do not need the same compensation capacity.
We provide customized solutions based on system parameters, installation environment, and customer requirements.
When we design electrical equipment, we focus on practical performance. A good product should not only work well during testing but also provide stable operation after years of use.
| Technical Feature | Description | Application Value |
|---|---|---|
| Automatic Control | Real-time compensation adjustment | Reduces manual operation requirements |
| Power Factor Improvement | Compensates reactive power demand | Improves electrical efficiency |
| Modular Design | Flexible equipment configuration | Suitable for different projects |
| Protection Function | Electrical safety monitoring | Improves system reliability |
Source: Technical descriptions are based on low-voltage reactive power compensation engineering practices and Jihui Electric product development standards.
Many industrial users focus mainly on active power consumption, but reactive power management is also important for overall electrical efficiency.
Motors, transformers, and inductive equipment naturally create reactive power demand during operation. Without proper compensation, the electrical system may experience higher current loading and increased energy losses.
By installing a GGJ Low Voltage Reactive Power Intelligent Compensation Device, companies can better manage electrical performance and improve the stability of their power systems.
For industrial users, this means:
Better power factor performance
Reduced reactive power losses
Improved electrical equipment efficiency
More stable power distribution
Lower long-term operating costs
During our years of working with different customers, we have found that reactive power management is becoming increasingly important in modern electrical systems. Many factories and commercial facilities operate large numbers of motors, transformers, and inductive loads every day. Without proper reactive power compensation, these systems may experience higher electrical losses and lower energy efficiency.
Our GGJ Low Voltage Reactive Power Intelligent Compensation Device is designed to support various industries that require stable, efficient, and intelligent power management solutions. It helps customers improve power quality, optimize electrical performance, and maintain reliable operation.
Manufacturing plants usually contain many high-power electrical machines, including motors, compressors, production lines, welding equipment, and automation systems. These devices often create reactive power demand during operation.
By installing a GGJ Intelligent Reactive Power Compensation System, factories can improve power factor, reduce unnecessary current consumption, and create a more efficient electrical environment.
Typical applications include:
Automotive manufacturing factories
Machinery production plants
Metal processing facilities
Food and beverage factories
Chemical production plants
Large commercial buildings require continuous electricity for lighting systems, elevators, air conditioning equipment, security systems, and other facilities.
A low voltage reactive power intelligent compensation device helps maintain stable electrical operation and improves energy management efficiency.
It is suitable for:
Shopping malls
Office buildings
Hotels
Hospitals
Public service buildings
Renewable energy systems such as solar power plants require reliable electrical management solutions. Power fluctuations and changing operating conditions create higher requirements for power quality control.
Our GGJ compensation equipment can work together with renewable energy distribution systems to improve electrical stability and support efficient energy utilization.
Industrial parks often include multiple factories and large electrical loads. Efficient power management is essential for reducing energy waste and improving system reliability.
Our intelligent reactive power compensation solution provides flexible configuration options for different project scales.
| Application Area | Main Challenge | GGJ Solution Value |
|---|---|---|
| Manufacturing Factory | High reactive power demand from machines | Improves power factor and reduces losses |
| Commercial Building | Large daily electricity consumption | Enhances energy management efficiency |
| Renewable Energy | Changing power conditions | Supports stable electrical operation |
| Industrial Park | Multiple electrical loads | Provides flexible compensation solutions |
Source: Application information is based on common industrial electrical system requirements and Jihui Electric project application experience.
At Jihui Electric, we believe reliable electrical equipment starts with careful manufacturing. A reactive power compensation device must provide stable performance for many years, so every production step matters.
Our manufacturing process combines engineering design, component inspection, professional assembly, and strict testing to ensure product quality.
Before production, our engineering team communicates with customers to understand system requirements, including voltage level, compensation capacity, installation environment, and application conditions.
Based on these requirements, we design a suitable GGJ low voltage reactive power intelligent compensation solution.
The performance of electrical equipment depends greatly on the quality of internal components. We select suitable electrical parts and perform inspections before assembly.
This helps ensure that every component meets our production requirements and contributes to stable equipment operation.
During production, professional technicians complete cabinet assembly, internal wiring, controller installation, capacitor unit installation, and protection system integration.
Each connection is carefully checked because accurate electrical assembly directly affects long-term performance.
Before shipment, every GGJ intelligent compensation device undergoes quality inspection and functional testing.
Our inspection process includes:
Cabinet appearance inspection
Electrical connection checking
Control function testing
Protection function verification
Final performance confirmation
| Production Stage | Main Work | Quality Purpose |
|---|---|---|
| Design | Electrical solution planning | Ensure project compatibility |
| Component Inspection | Check electrical parts | Improve product reliability |
| Assembly | Install cabinet and control system | Ensure stable operation |
| Testing | Verify product functions | Confirm delivery quality |
For power equipment, reliability is always the first priority. A compensation device must continue working safely after installation, even under demanding industrial conditions.
At Jihui Electric, we have established a complete quality management system covering product design, material selection, production control, inspection, and delivery.
Our certifications include:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These management systems help us maintain consistent production quality and provide customers with reliable electrical solutions.
Jihui Electric Group Co., Ltd. specializes in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product portfolio includes:
Low voltage switchgear
Reactive power compensation equipment
Ring main units
Transformers
With experience across different electrical applications, we understand the real challenges customers face and provide practical solutions.
Every project has different electrical conditions. Compensation capacity, installation environment, and system requirements can vary significantly.
Our engineering team can customize equipment according to customer technical requirements and project conditions.
For international customers, we provide complete export support, including production scheduling, quality inspection, professional packaging, and transportation arrangements.
According to product specifications and destination requirements, we support sea transportation, land transportation, and combined transportation solutions.
We believe successful cooperation is based on long-term trust. After delivery, our team continues to provide technical communication and support to help customers operate equipment smoothly.
The main function is to automatically compensate reactive power in low-voltage electrical systems, improve power factor, reduce energy losses, and improve overall power efficiency.
Reactive power compensation helps reduce unnecessary current flow, improve electrical system efficiency, and support more stable operation of power distribution networks.
They are widely used in factories, industrial parks, commercial buildings, renewable energy projects, and other low-voltage power distribution systems.
Yes. We provide customized solutions according to customer requirements, including compensation capacity, cabinet structure, electrical configuration, and project specifications.
We control quality through professional engineering design, component inspection, production management, performance testing, and final inspection before delivery.
As electrical systems become more complex, efficient power management is becoming increasingly important. Our GGJ Low Voltage Reactive Power Intelligent Compensation Device provides a practical solution for improving power factor, reducing energy losses, and maintaining stable electrical operation.
At Jihui Electric, we combine manufacturing experience, engineering capability, and customer-focused service to provide reliable electrical solutions for industries worldwide.
Whether your project involves industrial production, renewable energy, commercial buildings, or infrastructure development, we can provide professional reactive power compensation solutions based on your actual needs.
