I. Overview:
In medium voltage distribution systems, the commonly used ring main units include SF6 Gas Insulated Ring Main Units, Solid Insulated Ring Main Units, and environmentally friendly gas insulated ring main units. However, due to the greenhouse effect of SF6 gas and the difficulty in recycling solid insulation materials, the application of SF6 gas insulated ring main units and solid insulated ring main units will be limited. With the promotion of the green and environmentally friendly development concept of carbon peak and carbon neutrality by the country, environmentally friendly gas insulated ring main units will be used in more and more projects.
The VJH-12 series environmental protection switch is a new generation of circuit breakers for environmentally friendly gas insulated ring main units produced by our company in response to the design requirements of the State Grid's standardized ring main unit and the concept of green and environmentally friendly development. This product is mainly used in indoor and outdoor ring network switchgear in 12KV medium voltage distribution network systems for receiving and distributing electrical energy. The product fully meets the standardized technical requirements of the State Grid ring main unit and is suitable for side expansion and top expansion ring main unit solutions. The component universality rate of the upper and lower isolation solutions is over 90%. The product has high stability and strong universality, fully meeting the requirements
Type test requirements.
II. Usage environment:
--Surrounding air temperature: upper limit+40 ° C, lower limit -50 ° C;
--Relative humidity of the air: daily average not exceeding 95%, monthly average not exceeding 90%;
--Altitude ≤ 1500 meters (under standard inflation pressure);
--The seismic intensity shall not exceed level 8;
--A place without fire, explosion, serious pollution, chemical corrosion, and severe vibration.
| Model | Size |
| VJH-12/T630-20 | 64*34*82cm |

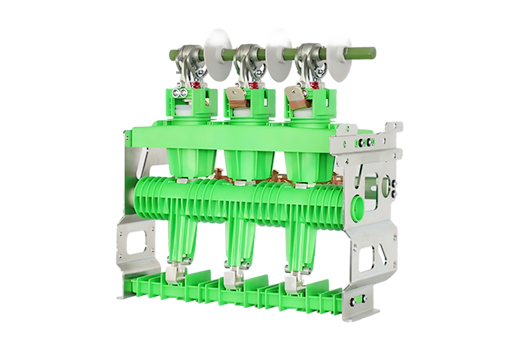

VJH-12/T630-20 environmental protection cabinet circuit breaker for Reliable Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we specialize in the research, development, manufacturing, and service of medium and low voltage power transmission and distribution equipment up to 35kV. Over the years, we have worked with power companies, engineering contractors, industrial customers, renewable energy projects, and infrastructure developers to provide stable and practical electrical solutions.
The VJH-12/T630-20 environmental protection cabinet circuit breaker is one of our medium voltage protection products designed for modern power distribution systems. It combines vacuum interruption technology, compact cabinet structure, reliable electrical performance, and environmental protection concepts to help customers achieve safer and more efficient power management.
In today’s electrical networks, customers are not only looking for equipment that can switch power on and off. They need products that can operate safely for years, reduce maintenance requirements, adapt to different installation environments, and support the development of cleaner energy systems. Our VJH-12/T630-20 environmental protection cabinet circuit breaker is developed with these practical needs in mind.
Whether it is applied in industrial plants, urban power networks, renewable energy facilities, commercial buildings, or infrastructure projects, this medium voltage circuit breaker provides dependable protection and control for electrical systems.
The VJH-12/T630-20 environmental protection cabinet circuit breaker is a medium voltage switching and protection device mainly used in 12kV power distribution systems. It is designed to control electrical circuits, protect equipment from abnormal conditions, and improve the safety of power networks.
Unlike ordinary switching devices, a circuit breaker needs to handle more demanding situations. When a fault such as short circuit or overload occurs, the circuit breaker must quickly disconnect the electrical path to prevent damage to transformers, cables, and other important equipment.
Our VJH-12/T630-20 circuit breaker uses vacuum interruption technology. The vacuum chamber provides a clean switching environment without traditional arc-extinguishing media, helping improve electrical reliability and reduce environmental impact.
The cabinet structure integrates protection components into a compact design. This makes installation easier and allows the equipment to be used in locations where space is limited.
For customers searching for a 12kV Vacuum circuit breaker cabinet, environment friendly medium voltage circuit breaker, or 630A vacuum switchgear equipment, the VJH-12/T630-20 provides a practical solution for modern distribution applications.
The working principle of the VJH-12/T630-20 environmental protection cabinet circuit breaker is based on controlling and protecting medium voltage electrical circuits through vacuum switching technology.
When the power system operates normally, the circuit breaker allows electrical current to pass through the connected circuit. When maintenance is required or a fault occurs, the internal switching mechanism separates the contacts and interrupts the current flow.
Inside the vacuum interrupter, the separation of contacts creates an electrical arc. Because the switching environment is vacuum, the arc can be quickly controlled and extinguished. This allows the circuit breaker to safely interrupt fault currents and protect the entire electrical system.
The operating mechanism is designed for repeated switching operations, providing stable performance during daily use. The equipment can work together with protection systems to quickly respond to abnormal electrical conditions.
In simple terms, the VJH-12/T630-20 acts like a safety controller in the power system. It allows electricity to flow when everything is normal and quickly disconnects dangerous conditions when problems appear.
One of the most important features of our circuit breaker is vacuum interruption technology. Compared with traditional switching methods, vacuum technology offers reliable arc extinguishing performance and stable electrical operation.
This design helps reduce maintenance work and improves equipment service life. It is especially suitable for customers who require reliable operation in industrial and power distribution environments.
Environmental protection has become an important consideration in modern electrical equipment. Our VJH-12/T630-20 environmental protection cabinet circuit breaker adopts a design concept focused on reducing environmental impact while maintaining strong electrical performance.
The vacuum switching system avoids the use of SF6 gas as an arc extinguishing medium, supporting cleaner and more sustainable power equipment development.
Space is becoming increasingly valuable in modern cities and industrial facilities. The compact cabinet structure of the VJH-12/T630-20 helps customers save installation space while maintaining complete protection functions.
This makes it suitable for substations, distribution rooms, industrial facilities, and other applications with limited space.
Electrical safety is always our first priority. The VJH-12/T630-20 is designed with reliable insulation performance, mechanical strength, and protection functions to support stable operation.
Through strict manufacturing processes and testing procedures, we ensure every unit meets the required quality standards before delivery.
When selecting medium voltage equipment, customers usually care about safety, service life, operating stability, and maintenance costs. Our VJH-12/T630-20 environmental protection cabinet circuit breaker is designed to balance these requirements.
| Technical Item | VJH-12/T630-20 Performance | Customer Value |
|---|---|---|
| Rated Voltage | 12kV Medium Voltage System | Suitable for common medium voltage distribution applications |
| Rated Current | 630A | Supports stable power transmission requirements |
| Breaking Technology | Vacuum Interruption | Reliable switching and reduced maintenance needs |
| Installation Type | Cabinet Integrated Structure | Saves space and simplifies installation |
| Application | Industrial, Utility, Renewable Energy, Infrastructure | Flexible use across different industries |
Source: Technical information is based on Jihui Electric product design specifications and medium voltage switchgear manufacturing practices.
Before choosing electrical equipment, many customers compare different technologies based on reliability, maintenance requirements, and environmental considerations. The following comparison shows general differences between vacuum cabinet circuit breakers and traditional switching equipment.
| Comparison Item | VJH-12/T630-20 Environmental Protection Cabinet Circuit Breaker | Traditional Circuit Breaker Equipment |
|---|---|---|
| Arc Extinguishing Method | Vacuum interruption technology | May use different traditional methods |
| Environmental Impact | Supports environmentally friendly design concepts | Depends on equipment structure and medium used |
| Maintenance Requirement | Low maintenance design | May require more frequent inspection |
| Space Requirement | Compact cabinet structure | Usually requires larger installation space |
Source: Comparison is based on general characteristics of vacuum medium voltage switchgear technology and traditional electrical equipment applications.
A power distribution system is like the heart of an industrial or commercial facility. If important electrical equipment fails, production lines may stop, business operations may be affected, and maintenance costs may increase.
A reliable medium voltage circuit breaker provides protection before problems become serious. It helps isolate faults, protect expensive electrical equipment, and improve the overall stability of the power network.
At Jihui Electric, we understand that customers need more than a product catalog. They need equipment that can perform reliably after installation and continue working under real operating conditions.
That is why we focus on every detail, from product design and material selection to manufacturing control and final inspection.
During our cooperation with customers from different industries, we have learned that every power distribution project has its own challenges. Some projects require compact equipment because installation space is limited. Some projects need higher reliability because power interruption may affect production or public services.
The VJH-12/T630-20 environmental protection cabinet circuit breaker is designed to meet these different requirements. With stable switching performance, reliable protection functions, and compact structure, it can be applied in various medium voltage power systems.
Electric utilities need reliable equipment to maintain stable electricity supply for cities and communities. Medium voltage distribution networks often operate continuously, so switching equipment must provide dependable performance under long-term working conditions.
The VJH-12/T630-20 vacuum circuit breaker cabinet can be installed in distribution substations and medium voltage networks to provide circuit control and fault protection. When abnormal conditions occur, it helps disconnect damaged sections and supports faster system recovery.
Factories depend heavily on stable electricity. Equipment such as production lines, automated machines, motors, and control systems require continuous power support.
A sudden electrical fault can lead to production delays and additional repair costs. By using the VJH-12/T630-20 environmental protection cabinet circuit breaker, industrial users can improve electrical safety and reduce the impact of unexpected power problems.
It is suitable for industries including automotive manufacturing, machinery production, metal processing, chemical plants, and other industrial applications requiring reliable medium voltage protection.
Renewable energy development has created new requirements for electrical distribution equipment. Solar power stations, wind farms, and energy storage systems need safe and efficient medium voltage switching solutions.
Our VJH-12/T630-20 circuit breaker supports renewable energy applications by providing reliable current interruption and protection functions. Its environmental protection design also matches the trend toward cleaner energy infrastructure.
Modern commercial buildings, hospitals, transportation facilities, and public infrastructure require safe electrical systems because power reliability directly affects daily operation.
The compact design of the VJH-12/T630-20 makes it suitable for installation in distribution rooms where space efficiency and safety are important considerations.
At Jihui Electric, we believe that reliable electrical equipment comes from careful manufacturing management. A good circuit breaker is not only about the final product appearance. Every component, connection, and testing step affects long-term performance.
Our manufacturing process follows strict quality control procedures from engineering design to final shipment.
Before production begins, our engineering team reviews product requirements and application conditions. We consider rated voltage, current capacity, installation environment, operating conditions, and customer project standards.
Through technical communication with customers, we confirm the correct configuration and provide suitable solutions for different applications.
Electrical components directly affect the safety and reliability of medium voltage equipment. We carefully select suitable materials and components according to product requirements.
The cabinet structure, vacuum interrupter, operating mechanism, insulation parts, and connection components are inspected before assembly to ensure stable product performance.
During assembly, our production team follows detailed manufacturing procedures. Mechanical parts must operate smoothly, electrical connections must remain stable, and protection components must work correctly.
Attention to detail during assembly helps ensure that each VJH-12/T630-20 environmental protection cabinet circuit breaker can provide reliable performance after installation.
Before shipment, every circuit breaker undergoes inspection and performance testing. We check electrical characteristics, mechanical operation, insulation performance, and overall product quality.
| Manufacturing Stage | Main Process | Quality Purpose |
|---|---|---|
| Design Confirmation | Review technical requirements and application conditions | Ensure correct product solution |
| Component Inspection | Check electrical and mechanical parts | Maintain component reliability |
| Assembly Process | Install cabinet, breaker mechanism, and protection system | Ensure stable equipment operation |
| Final Testing | Electrical and mechanical performance testing | Confirm safe delivery |
Source: Manufacturing information is based on Jihui Electric internal production management procedures and ISO9001 quality management requirements.
Selecting a medium voltage equipment supplier is an important decision. Customers need not only reliable products but also technical support, stable production capability, and professional service throughout the project.
At Jihui Electric Group Co., Ltd., we focus on providing complete power transmission and distribution solutions for global customers.
We specialize in medium and low voltage electrical equipment up to 35kV. Our product range includes ring main units, Cable accessories, Cable distribution boxes, Prefabricated Substations, combination transformers, SF6 load switches, vacuum circuit breakers, and other power distribution products.
Our experience allows us to better understand the practical needs of different industries and provide suitable electrical solutions.
Quality consistency is one of our most important goals. Our company has obtained:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These certifications reflect our commitment to controlled production, responsible manufacturing, and continuous improvement.
Different customers may have different technical requirements. A power distribution project in a factory may require different solutions compared with a renewable energy project or urban infrastructure application.
Our engineering team can provide customized recommendations based on voltage level, installation conditions, operating environment, and project requirements.
For overseas customers, we provide complete export support including technical communication, production scheduling, quality inspection, packaging, and transportation arrangement.
According to product size, quantity, and destination, we select suitable transportation methods such as sea transportation, land transportation, or combined logistics.
For packaging, we use professional protection methods including moisture protection, shock protection, and collision prevention to ensure products arrive safely.
The main function is to control and protect medium voltage electrical circuits. It can switch power circuits during normal operation and quickly interrupt fault currents to protect electrical equipment.
Vacuum interruption technology provides reliable arc extinguishing performance and stable electrical operation. It also helps reduce maintenance requirements and supports environmentally friendly equipment development.
The VJH-12/T630-20 is suitable for power distribution systems, industrial factories, renewable energy projects, commercial buildings, substations, and infrastructure facilities.
Yes. We provide customized solutions according to customer technical requirements, project conditions, voltage levels, installation methods, and application environments.
We control quality throughout the entire process, including design review, material inspection, manufacturing, assembly, testing, and final inspection before delivery.
As industries continue to develop and electricity demand increases, reliable power distribution equipment becomes more important than ever. A stable medium voltage system helps businesses maintain production, improves energy efficiency, and supports modern infrastructure development.
At Jihui Electric, we are committed to providing dependable electrical solutions through continuous improvement in technology, manufacturing, and service.
The VJH-12/T630-20 environmental protection cabinet circuit breaker combines reliable vacuum switching technology, compact structure, and practical protection functions to meet the needs of modern power distribution systems.
For customers looking for a reliable 12kV vacuum circuit breaker supplier, Medium Voltage Switchgear Manufacturer, or environment friendly circuit breaker solution, Jihui Electric provides professional products and long-term cooperation support.
We believe that every successful power project starts with reliable equipment and trusted cooperation. With professional manufacturing experience and complete service capability, we continue helping customers build safer and more efficient electrical networks worldwide.
