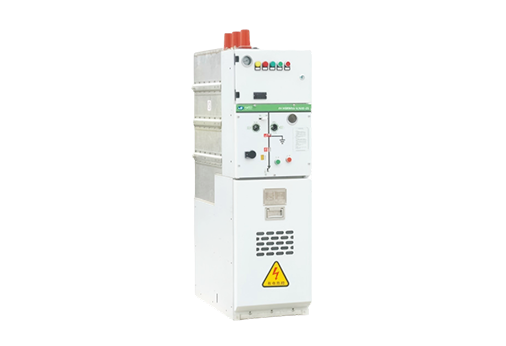

I. Overview:
All live parts of the GPR ring main unit are sealed in a metal gas box with nitrogen (N.) as the insulating medium, without insulation partitions or insulation aging and failure hazards. The design concept of the lowest functional pressure as low as zero gauge pressure ensures the rated insulation level of the equipment, and the gas box is reliably grounded to ensure that operators will not touch live parts; The cable room cover and switch status have reliable mechanical interlocking.
II. Performance characteristics
--The GPR ring main unit meets the technical requirements for the primary and secondary integration of ring main units.
--Capable of setting telemetry dead zone range, remote and local telemetry anti shake coefficient
--Equipped with short-circuit fault detection and discrimination functions, as well as grounding fault detection functions;
--Capable of collecting analog and status signals of switches locally, as well as controlling switch opening and closing functions, with remote transmission and control functions for measurement data and status data, and can flexibly expand the number of monitoring switches;
--Equipped with fault recording function, equipped with an independent distribution line loss acquisition module to achieve metering function, calculate the forward and reverse active power and reactive power of each interval, as well as the power factor of the four quadrants;
--Measurement data freezing function, including daily freezing and freezing data when power direction changes;
--Support remote retrieval of historical data and upload it to the main distribution network station in file format.
| Model | Size |
| GPR | 140*220*260cm |
GPR ring main unit: Reliable Medium Voltage Power Distribution Solution for Modern Electrical Networks
At Jihui Electric Group Co., Ltd., we focus on developing and manufacturing reliable medium and low voltage power transmission and distribution equipment up to 35kV. With years of experience in the electrical industry, we provide solutions for power companies, engineering contractors, industrial enterprises, renewable energy projects, and infrastructure developers around the world.
Our GPR ring main unit is designed for safe and stable medium voltage power distribution. It combines compact structure, reliable insulation performance, and flexible configuration to meet the needs of modern electrical networks. Whether it is used in urban power grids, industrial facilities, commercial buildings, or renewable energy systems, our GPR ring main unit helps customers build a safer and more efficient power supply system.
Unlike traditional switchgear that may require large installation spaces and complex maintenance, the GPR ring main unit provides a more compact and practical solution. It is designed to improve power distribution reliability while reducing installation difficulty and long-term operating costs.
A GPR ring main unit is a type of medium voltage switchgear equipment mainly used in electrical distribution networks. It is commonly installed in power substations, industrial plants, renewable energy projects, and urban distribution systems where reliable electricity supply is required.
The main function of a GPR ring main unit is to receive, distribute, control, and protect medium voltage electrical power. It allows electricity to flow through different sections of a network and helps isolate faulty areas quickly when electrical problems occur.
In simple words, the GPR ring main unit works like a smart control point in the power network. It helps operators manage electricity safely and keeps the power supply running even when part of the system needs maintenance.
Our GPR ring main unit is developed according to modern power distribution requirements. It features a compact design, strong mechanical structure, excellent insulation performance, and convenient operation, making it suitable for various indoor and outdoor applications.
The working principle of a GPR ring main unit is based on controlling medium voltage electrical circuits through switching and protection devices. The equipment normally includes load switches, circuit breakers, grounding switches, busbars, and insulation components.
When electrical power enters the ring main unit, the internal switching components control the power flow and distribute electricity to different outgoing circuits. If a fault happens, such as short circuit or overload, the protection system can disconnect the affected section to prevent damage from spreading.
The ring network design provides an important advantage. If one power supply path has a problem, electricity can often be delivered through another connected path. This improves power supply continuity and reduces downtime.
For example, in an industrial park with multiple factories, a reliable ring main unit can help maintain electricity supply to most areas even when one section requires inspection or repair.
At Jihui Electric, we understand that electrical equipment must operate safely for many years under different working conditions. Therefore, our GPR ring main unit focuses on reliability, safety, and practical operation.
Modern cities and industrial facilities often have limited installation space. The compact structure of our GPR ring main unit allows easier installation in substations, distribution rooms, and power facilities where space is valuable.
Insulation quality directly affects electrical safety. Our GPR ring main unit uses high-quality insulation materials and optimized structural design to improve electrical performance and ensure stable operation under medium voltage conditions.
Safety is always one of the most important factors in power equipment. The GPR ring main unit provides reliable switching and protection functions to reduce risks caused by electrical faults.
Different projects have different requirements. We provide flexible configurations according to voltage levels, application environments, and customer technical specifications.
Whether customers need standard distribution equipment or customized solutions for special projects, our engineering team can provide suitable designs.
During product development, we focus on improving electrical performance, mechanical strength, and long-term reliability. Our GPR ring main unit is suitable for demanding applications where stable power distribution is essential.
| Technical Item | Typical Performance | Customer Benefit |
|---|---|---|
| Rated Voltage | Up to 24kV / customized according to project requirements | Suitable for medium voltage distribution networks |
| Insulation Performance | High-quality insulation structure | Improves operational safety and stability |
| Installation Type | Indoor and outdoor applications available | Flexible use in different environments |
| Configuration | Multiple switching and protection options | Meets different project requirements |
Source: Technical specifications are based on Jihui Electric product design standards and medium voltage switchgear engineering practices.
When selecting medium voltage distribution equipment, customers usually compare reliability, installation requirements, maintenance costs, and application flexibility. The following table shows a general comparison.
| Comparison Item | GPR Ring Main Unit | Traditional Switchgear |
|---|---|---|
| Installation Space | Compact design with reduced footprint | Usually requires larger installation area |
| Power Supply Reliability | Supports ring network operation | Depends mainly on single power path |
| Maintenance | Designed for easier inspection and operation | May require more complex maintenance procedures |
| Application Range | Suitable for utilities, industry, renewable energy, and buildings | Often limited by project conditions |
Source: Comparison based on common medium voltage distribution system characteristics and engineering application experience.
Electricity has become the foundation of modern industries. Factories, transportation systems, data centers, commercial buildings, and renewable energy facilities all depend on stable power supply.
A failure in the power distribution system can cause production delays, equipment damage, and financial losses. This is why selecting reliable medium voltage equipment is an important decision for every project.
Our GPR ring main unit is developed with this understanding. We focus not only on producing equipment but also on helping customers achieve safer and more efficient power distribution.
From product design and material selection to manufacturing and testing, every step is controlled carefully to ensure stable quality and dependable performance.
During our years of manufacturing medium voltage power equipment, we have seen that every industry has different requirements for electrical systems. Some customers need stable power for continuous production, while others need compact equipment for limited installation spaces. The GPR ring main unit is designed to meet these different needs with reliable performance and flexible application.
Our GPR ring main unit is widely used in power distribution networks, industrial plants, renewable energy projects, transportation facilities, commercial buildings, and public infrastructure. It helps customers improve power reliability and create safer electrical operating environments.
For electricity suppliers and utility companies, reliability is always the top priority. Medium voltage distribution networks need equipment that can operate continuously and handle changing power demands.
The GPR ring main unit provides a stable switching and protection solution for urban and rural power networks. Its ring network structure helps improve power supply continuity, making it suitable for distribution substations and regional power systems.
With the rapid growth of solar and wind power projects, reliable power collection and distribution equipment has become increasingly important. Renewable energy systems often operate in remote areas where equipment needs strong environmental adaptability.
Our GPR ring main unit can be integrated into renewable energy distribution systems to help collect and transfer generated electricity safely. It supports stable operation in photovoltaic power stations, wind farms, and energy storage projects.
Manufacturing factories usually require continuous electricity supply because unexpected power interruptions can affect production efficiency and equipment operation.
Industries such as automotive manufacturing, chemical processing, metal production, and machinery manufacturing rely on stable medium voltage distribution systems. The GPR ring main unit helps factories achieve reliable power management and reduce operational risks.
Modern buildings such as shopping centers, office complexes, hospitals, and transportation hubs require safe and efficient electrical systems.
Due to its compact structure and reliable protection functions, the GPR ring main unit is suitable for installation in building substations and urban distribution networks where safety and space utilization are important.
At Jihui Electric, we believe product quality starts from every small manufacturing step. A reliable medium voltage switchgear product requires careful design, accurate processing, strict assembly, and complete testing.
Before production begins, our engineering team reviews customer requirements, including voltage level, application environment, installation conditions, and technical standards.
Based on project requirements, we provide suitable GPR ring main unit configurations and confirm all technical details before manufacturing.
The performance of electrical equipment depends greatly on the quality of materials. We select suitable electrical components, metal structures, insulation materials, and mechanical parts according to product requirements.
High-quality materials help improve product durability, insulation performance, and long-term operating stability.
During manufacturing, each component goes through professional processing and assembly procedures. Our production team follows strict quality control requirements to ensure every GPR ring main unit meets design standards.
The cabinet structure, switching components, connection parts, and protection systems are carefully assembled to maintain reliable electrical performance.
Before shipment, every product completes inspection and testing procedures. We check electrical performance, mechanical operation, insulation condition, and overall product quality.
| Production Stage | Main Activities | Quality Control Purpose |
|---|---|---|
| Design Review | Confirm technical parameters and customer requirements | Ensure correct product configuration |
| Component Assembly | Install electrical and mechanical parts | Maintain structural accuracy |
| Electrical Testing | Check insulation and switching performance | Ensure safe operation |
| Final Inspection | Complete appearance and performance checks | Guarantee delivery quality |
Source: Manufacturing process information is based on Jihui Electric production procedures and quality management practices under ISO9001 requirements.
Choosing a medium voltage equipment supplier is not only about purchasing a product. It is about finding a long-term partner who understands your project requirements and can provide reliable support.
At Jihui Electric Group Co., Ltd., we combine engineering experience, manufacturing capability, and international service experience to provide complete power distribution solutions.
We specialize in medium and low voltage power transmission and distribution equipment up to 35kV. Our product range includes ring main units, Cable accessories, Cable distribution boxes, Prefabricated Substations, transformers, SF6 load switches, and Vacuum circuit breakers.
With professional manufacturing experience, we understand the challenges customers face in different power distribution projects.
Quality control is an important part of our production process. Our company has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.
These certifications reflect our commitment to consistent product quality, responsible manufacturing, and safe working practices.
Different countries, industries, and projects may require different technical solutions. We provide customized GPR ring main unit options according to customer requirements.
Our technical team works closely with customers to understand application conditions and provide practical solutions instead of standard products only.
For international customers, we provide complete support including technical communication, production arrangement, inspection, packaging, and transportation coordination.
According to product size and destination, we select suitable transportation methods including sea transportation, land transportation, or combined logistics solutions.
A GPR ring main unit is mainly used for medium voltage power distribution, switching control, and electrical protection. It helps distribute electricity safely and improves the reliability of power networks.
The GPR ring main unit can be used in many applications, including power grids, industrial factories, renewable energy projects, commercial buildings, transportation systems, and infrastructure facilities.
The voltage level depends on customer project requirements. Jihui Electric provides medium voltage solutions according to different application standards and technical specifications.
Yes. We support customized solutions based on installation conditions, electrical parameters, project requirements, and customer technical specifications.
Before delivery, each GPR ring main unit undergoes production inspection, electrical testing, performance checks, and final quality confirmation to ensure reliable operation after installation.
As electricity demand continues to grow, reliable power distribution equipment becomes increasingly important. A stable electrical system supports industrial development, renewable energy expansion, and modern city construction.
At Jihui Electric, we continue improving our technology and manufacturing processes to provide dependable medium voltage solutions for global customers.
Our GPR ring main unit represents our commitment to safe, efficient, and practical power distribution. From product design to final delivery, we focus on every detail to help customers build stronger electrical networks.
If you are looking for a reliable GPR Ring Main Unit Manufacturer, medium voltage switchgear supplier, or customized power distribution solution provider, Jihui Electric is ready to support your project with professional technology and service.
