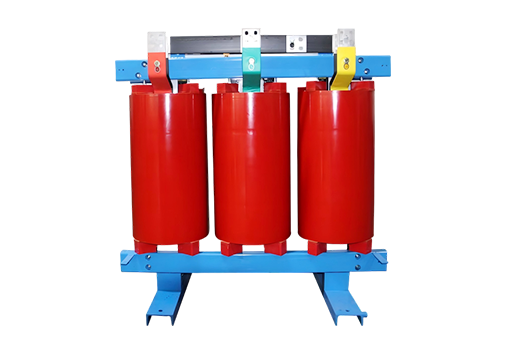

Resin-cast three-phase dry-type transformers ranging from 250kVA to 2000kVA

At Jihui Electric Group Co., Ltd., we specialize in the research, development, manufacturing, and supply of medium and Low voltage power distribution equipment. Among our core products, our resin-cast three-phase Dry-type Transformers ranging from 250kVA to 2000kVA are designed to provide safe, stable, and efficient power conversion solutions for modern electrical systems.

With years of experience in the power transmission and distribution industry, we understand that transformers are not just electrical devices. They are key components that influence the safety, efficiency, and long-term reliability of an entire power system. Therefore, we focus on producing dry type transformers with strong insulation performance, reliable operation, low maintenance requirements, and adaptability to different working environments.

Our 250kVA to 2000kVA resin cast dry type transformers are widely used in industrial facilities, commercial buildings, renewable energy projects, infrastructure construction, mining operations, transportation systems, and other medium voltage applications. By combining advanced manufacturing technology with strict quality control, we provide customers with transformer solutions that meet different project requirements.

What Is a Resin-cast Three-phase Dry-type Transformer?

A resin-cast three-phase dry-type transformer is a type of electrical transformer that uses epoxy resin as the main insulation material instead of traditional transformer oil. Unlike oil immersed transformers, dry type transformers do not require liquid insulation, which makes them cleaner, safer, and easier to install in many indoor and environmentally sensitive locations.

The main function of our resin-cast three-phase dry-type transformer is to convert medium voltage electricity into a suitable voltage level for distribution and utilization. During operation, electrical energy passes through the primary winding and creates a magnetic field inside the transformer core. This magnetic field transfers energy to the secondary winding, allowing the voltage to be increased or reduced according to system requirements.

Because the windings are sealed with epoxy resin, our cast resin transformer provides excellent protection against moisture, dust, corrosion, and environmental changes. This makes it especially suitable for applications where safety, reliability, and low maintenance are important.

How Does a Resin Cast Dry Type Transformer Work?

The working principle of our three-phase dry-type transformer is based on electromagnetic induction. The transformer consists mainly of a high-quality magnetic core, high voltage winding, low voltage winding, insulation system, and protective structure.

When alternating current flows through the primary winding, it produces a changing magnetic flux in the transformer core. The magnetic flux then induces voltage in the secondary winding. By adjusting the number of turns in each winding, the transformer can achieve the required voltage conversion ratio.

For our 250kVA to 2000kVA resin-cast transformers, the design focuses on improving electrical performance while reducing energy losses. The high-quality core material helps reduce no-load losses, while optimized winding design improves load performance and temperature control.

Source: Comparison based on IEC 60076 transformer technology classification and common industry application practices.

Main Features of Our 250kVA–2000kVA Resin Cast Three-phase Dry-type Transformers

When developing our resin-cast three-phase dry-type transformers, we focus on solving real problems faced by customers during installation and operation. A transformer must work continuously under different conditions, including temperature changes, humidity, dust, and electrical load fluctuations.

1. Excellent Insulation Performance

The epoxy resin casting technology creates a strong insulation layer around the windings. This structure improves electrical safety and reduces the risk of insulation failure caused by moisture, dust, or environmental factors.

Compared with traditional insulation methods, resin cast insulation provides better mechanical strength and helps maintain stable performance during long-term operation. This is especially important for industrial facilities and infrastructure projects where continuous power supply is required.

2. Safe Operation and Fire Resistance

Safety is one of the most important considerations when selecting a transformer. Our Cast Resin Dry Type Transformers contain no flammable insulating oil, reducing fire risks in indoor environments.

For buildings, underground facilities, hospitals, data centers, and transportation systems, safety requirements are usually higher. Dry type transformer technology provides an effective solution for these applications.

3. Wide Power Range from 250kVA to 2000kVA

Our resin-cast three-phase dry-type transformers cover power ratings from 250kVA to 2000kVA, allowing customers to select suitable models according to different electrical loads.

Source: Capacity classification is based on common transformer application ranges used in industrial power distribution projects.

4. Low Maintenance Requirement

One major advantage of resin cast dry type transformers is simplified maintenance. Since there is no transformer oil, customers do not need regular oil testing, oil replacement, or leakage inspection.

This helps reduce operation costs and improves system availability. For companies managing multiple electrical facilities, choosing a reliable dry type transformer can significantly simplify maintenance work.

5. Strong Environmental Adaptability

Our Medium Voltage Dry Type Transformers are designed to operate in different environments. The resin insulation structure provides resistance against moisture, dust, and temperature variations.

Whether installed in factories, commercial buildings, renewable energy facilities, or public infrastructure projects, our transformers provide stable power conversion performance.

Technical Advantages of Our Resin-cast Three-phase Dry-type Transformers

As a professional Transformer Manufacturer, we continuously improve product design according to customer application requirements. Our goal is not only to produce transformers, but also to provide reliable power solutions that support long-term operation.

Optimized Core Design

The transformer core directly affects energy efficiency and operating noise. We use optimized core structures to reduce magnetic loss and improve overall efficiency. A well-designed core helps transformers operate more quietly and efficiently.

Reliable Winding Structure

The winding system is one of the most important parts of a transformer. Our winding design focuses on electrical strength, mechanical stability, and heat dissipation performance.

The epoxy resin casting process protects the winding from external impact and improves resistance against short circuit forces.

Energy Efficient Performance

Energy efficiency has become increasingly important due to rising electricity costs and stricter environmental requirements. Our resin cast dry type transformers are designed to reduce energy losses and improve operating efficiency throughout their service life.

Applications of Resin-cast Three-phase Dry-type Transformers

During our years of serving power distribution projects, we have found that different industries have different requirements for transformers. Some customers need higher safety levels, some need stable operation in harsh environments, and others focus on energy efficiency and maintenance costs. Our resin-cast three-phase dry-type transformers ranging from 250kVA to 2000kVA are designed to meet these different application needs.

Power Distribution Systems

Power companies, electrical contractors, and system integrators often require reliable transformer equipment for medium voltage distribution networks. Our medium voltage dry type transformers help transfer electricity safely between different voltage levels and provide stable power for residential, commercial, and industrial users.

Industrial Manufacturing Facilities

Factories usually operate large numbers of machines that require continuous and stable electricity. Unexpected power interruptions can affect production efficiency and increase operating costs. Our industrial power distribution transformers are widely used in manufacturing plants, automation facilities, metal processing factories, and production lines where reliability is important.

The resin cast structure provides strong insulation protection, making these transformers suitable for industrial environments with dust, vibration, and changing temperatures.

Renewable Energy Projects

With the rapid growth of solar power, wind power, and other renewable energy systems, reliable power conversion equipment has become increasingly important. Our cast resin transformer solutions can be integrated into renewable energy distribution systems to help transfer generated electricity efficiently.

For solar farms and distributed energy projects, transformers must operate continuously under outdoor temperature changes and different load conditions. Our dry type transformer technology provides stable performance with reduced maintenance requirements.

Commercial Buildings and Infrastructure

Modern buildings such as shopping centers, office complexes, hospitals, airports, and transportation facilities require safe and reliable electrical systems. Because resin cast dry type transformers have excellent fire resistance and no oil leakage risk, they are commonly selected for indoor applications.

Mining and Petrochemical Industries

Mining sites and petrochemical facilities often face challenging operating conditions. Electrical equipment must provide reliable performance while resisting environmental stress. Our transformers are designed with strong insulation and mechanical protection to support demanding industrial applications.

Source: Application analysis based on IEC transformer standards and common industrial power distribution project requirements.

Manufacturing Process of Our Resin-cast Three-phase Dry-type Transformers

At Jihui Electric, we believe that transformer quality comes from every manufacturing step. A reliable transformer requires not only good materials but also accurate production processes and strict testing procedures.

1. Engineering Design and Technical Confirmation

Before production begins, our engineering team reviews customer requirements, including rated voltage, capacity, installation environment, operating conditions, and project standards.

For different applications, we can provide customized transformer solutions according to technical specifications. This allows our customers to receive equipment that matches their actual power system requirements.

2. Core Manufacturing

The transformer core is manufactured using high-quality electrical steel sheets. Precise cutting and assembly processes help reduce magnetic losses and improve transformer efficiency.

A carefully produced core structure also helps reduce operating noise and improve long-term stability.

3. Winding Production

The winding process requires high accuracy because winding quality directly affects transformer performance. Our production process controls conductor arrangement, insulation distance, and mechanical strength.

Both high voltage and low voltage windings are manufactured according to technical requirements to ensure reliable electrical performance.

4. Epoxy Resin Casting Process

The resin casting process is one of the key technologies of our dry type transformers. During this process, the winding is fully encapsulated with epoxy resin under controlled conditions.

This creates a strong insulation structure that protects the winding from moisture, dust, and external environmental influences. It also improves mechanical strength and helps maintain stable operation during electrical stress.

5. Assembly and Performance Testing

After manufacturing, each transformer undergoes professional inspection and testing before delivery. Our testing process includes electrical performance checks, insulation tests, and appearance inspections.

We follow strict quality management procedures based on ISO9001 quality management requirements. Our goal is to ensure every transformer delivered to customers meets expected performance standards.

Source: Manufacturing process description based on transformer production practices and IEC 60076 series testing requirements.

Why Choose Jihui Electric for Resin Cast Dry Type Transformers?

Choosing a transformer supplier is not only about purchasing equipment. It is about selecting a long-term partner who understands electrical systems, project requirements, and after-sales support.

At Jihui Electric Group Co., Ltd., we focus on providing complete power distribution solutions. Our product range covers Cable accessories, Cable distribution boxes, ring main units, Prefabricated Substations, combination transformers, SF6 load switches, Vacuum circuit breakers, and other medium and low voltage equipment.

Professional Manufacturing Experience

We have built our production capabilities around medium and low voltage power transmission and distribution equipment. Our engineering and manufacturing teams continuously improve product design to meet changing market requirements.

Strict Quality Management

Quality control runs through every stage of production. We operate according to ISO9001 quality management standards and also hold ISO14001 environmental management certification and ISO45001 occupational health and safety certification.

These management systems help us maintain consistent production quality while ensuring responsible manufacturing practices.

Customized Transformer Solutions

Different projects require different transformer specifications. We support customized solutions based on voltage levels, capacity requirements, installation conditions, and customer technical standards.

Whether customers need a standard 250kVA Dry Type Transformer or a customized 2000kVA three phase dry type transformer, our team can provide suitable technical support.

Complete Export Service

For international customers, we provide professional export support including technical communication, production arrangement, quality inspection, packaging protection, and transportation coordination.

According to product specifications and destination requirements, we select suitable transportation methods including sea freight, land transportation, or combined transportation solutions.

Frequently Asked Questions About Resin-cast Three-phase Dry-type Transformers

1. What is the capacity range of your resin cast dry type transformers?

Our resin-cast three-phase dry-type transformers are available from 250kVA to 2000kVA. Customers can select suitable capacity according to their power system requirements and application environment.

2. What are the advantages of resin cast transformers compared with oil transformers?

Resin cast transformers provide excellent fire safety, lower maintenance requirements, and better environmental protection because they do not use liquid insulation oil. They are especially suitable for indoor installations and locations with strict safety requirements.

3. Where can a 2000kVA three phase dry type transformer be used?

A 2000kVA three phase dry type transformer is commonly used in large industrial plants, renewable energy projects, infrastructure facilities, and commercial power distribution systems requiring higher power capacity.

4. Can you provide customized transformer designs?

Yes. We can provide customized transformer solutions based on customer requirements, including voltage ratings, installation conditions, electrical specifications, and project standards.

5. How do you ensure transformer quality?

We control quality through material inspection, production process management, electrical testing, and final inspection before shipment. Each transformer is manufactured according to technical requirements and tested before delivery.

Reliable Resin-cast Three-phase Dry-type Transformer Solutions from Jihui Electric

As a professional manufacturer of medium and low voltage power distribution equipment, Jihui Electric is committed to providing reliable and efficient electrical solutions for customers worldwide.

Our resin-cast three-phase dry-type transformers ranging from 250kVA to 2000kVA combine safety, efficiency, durability, and flexible customization. From industrial power systems to renewable energy projects, our transformers help customers build safer and more stable electrical networks.

If you are looking for a reliable cast resin transformer manufacturer or need a customized medium voltage dry type transformer solution, our engineering team is ready to support your project requirements.
