I. Overview:
American style Cable distribution boxes, with their excellent performance, standardized design, and beautiful appearance, are widely used as cable engineering equipment in cable distribution network systems. They are widely recognized in various places such as industrial parks, residential areas, densely populated urban areas, commercial centers, and high-rise buildings. It is mainly characterized by one-way door opening and horizontal multi-channel busbar, with significant advantages such as small width, flexible combination, full insulation, and full sealing. According to the rated current, it can generally be divided into two types: 600A main circuit and 200A branch circuit. The 600A main circuit adopts a screw in bolt fixed connection, while the 200A branch circuit adopts a plug-in connection and can be plugged and unplugged with load.
II. Usage environment
--Environmental temperature: Maximum temperature:+40 ° C, minimum temperature: -30 ° C
--Wind speed: equivalent to 34m/s (not greater than 700Pa)
--Humidity: The average daily relative humidity should not exceed 95%, and the average monthly relative humidity should not exceed 95%
--Seismic resistance: horizontal acceleration not exceeding 0.4m/s', vertical acceleration not exceeding 0.15m/s2
--Installation site inclination: not greater than 3 °
--Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation site should not experience severe vibrations
| Model | Size |
| DFW-12kv | Customization |

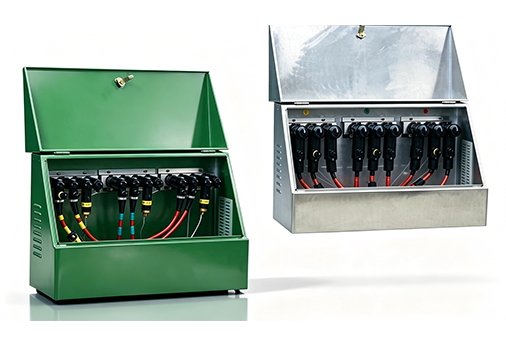

DFW-M-12kv American style cable branch box for Reliable Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we focus on designing and manufacturing reliable medium and low voltage power transmission and distribution equipment. Our DFW-M-12kV American Style Cable Branch Box is developed to provide safe, flexible, and efficient cable connection solutions for modern electrical networks.
With years of experience in power equipment manufacturing, we understand that a stable electricity supply is critical for every industry. Whether it is a power grid project, renewable energy system, industrial plant, commercial building, or infrastructure project, customers need equipment that can operate safely and continuously in different environments.
The DFW-M-12kV American Style Cable Branch Box is designed for 12kV medium voltage applications. It provides reliable cable branching, cable connection, and power distribution functions while maintaining excellent insulation performance and mechanical strength.
At Jihui Electric, we combine engineering experience, modern production technology, and strict quality management to deliver dependable electrical solutions. Our product range covers Cable accessories, Cable distribution boxes, ring main units, Prefabricated Substations, combination transformers, SF6 load switches, Vacuum circuit breakers, and other power distribution equipment up to 35kV.
Located in Yueqing Economic Development Zone, China, Jihui Electric serves customers from different industries worldwide. We have obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.
The DFW-M-12kV American Style Cable Branch Box is a medium voltage cable distribution device used for connecting and branching underground power cables. It provides a protected connection point where one incoming cable can be distributed into multiple outgoing cable circuits.
Compared with traditional cable connection methods, an American style cable branch box provides better protection and easier management. The internal electrical components are protected inside a strong enclosure, helping reduce the influence of moisture, dust, temperature changes, and external impact.
This type of equipment is widely used in urban power networks, industrial facilities, renewable energy projects, commercial buildings, and infrastructure systems. It is an important part of a complete 12kV Power Distribution Solution.
As a professional 12kV American Type Cable Branch Box Manufacturer, we design our products based on practical application needs. Standard models are available for common projects, while customized solutions can be provided according to customer requirements.
Cable Branching: Distributes electrical power from one cable line to multiple outgoing cable circuits.
Cable Connection: Provides a safe and organized connection point for medium voltage cables.
Electrical Protection: Helps protect cable connection parts from environmental influence.
Power Network Expansion: Supports flexible electrical system design and future expansion.
Safe Maintenance: Provides a structured solution for inspection and service work.
The working principle of the DFW-M-12kV American Style Cable Branch Box is based on safe electrical connection and controlled power distribution. When electricity enters through the incoming cable, it passes through internal conductive components and is distributed to different outgoing cables.
The internal design ensures stable electrical contact, while insulation materials maintain safe separation between energized parts. The external enclosure protects the internal system and allows reliable operation in outdoor environments.
In a medium voltage power network, cable branch boxes help engineers create flexible cable routes. They make it easier to connect new power users, expand distribution systems, and improve network reliability.
Step 1 - Cable Installation: Incoming and outgoing cables are connected according to project requirements.
Step 2 - Power Transmission: Electrical energy flows through internal connection components.
Step 3 - Cable Distribution: Power is divided into different cable branches.
Step 4 - Protection: The enclosure protects internal components from external conditions.
Step 5 - Network Operation: The equipment supports stable medium voltage power distribution.
A stable cable connection is the foundation of a safe power system. Our DFW-M-12kV American Style Cable Branch Box is designed to provide reliable electrical connection performance for 12kV networks.
The internal structure is carefully designed to maintain good electrical contact and reduce potential connection problems. This helps improve system reliability and supports long-term operation.
Medium voltage equipment requires strong insulation protection. Our cable branch box uses high-quality insulation materials and professional structural design to maintain safe operation.
The insulation system helps reduce electrical discharge risks and improves equipment stability in different working environments.
Space is an important factor in many power distribution projects. Our American style cable branch box adopts a compact structure that allows convenient transportation and installation.
The design is suitable for projects where installation space is limited, especially urban power networks and underground cable systems.
Many cable branch boxes are installed outdoors where they face changing weather conditions. Our Outdoor Cable Branch Box is designed with protection features to improve environmental resistance.
The equipment can maintain stable operation under different climate conditions, helping customers reduce maintenance requirements and improve system reliability.
Every power project has different requirements. Cable type, installation location, voltage level, and operating conditions may vary from one project to another.
At Jihui Electric, we provide customized solutions according to customer needs. Our engineering team works with customers to select suitable configurations and technical solutions.
When customers choose Medium Voltage Electrical Equipment, they usually care about safety, reliability, service life, installation convenience, and maintenance costs.
Our DFW-M-12kV American Style Cable Branch Box is designed to meet these practical requirements. It combines reliable electrical performance with a simple and efficient structure.
| Comparison Item | Traditional Cable Connection Method | DFW-M-12kV American Style Cable Branch Box |
|---|---|---|
| Protection Level | Cable joints may be more exposed to environmental factors | Protected enclosure improves safety and durability |
| Installation Efficiency | More complex connection arrangement | Organized cable connection structure |
| Maintenance Management | Requires more frequent inspection | Easier inspection and system management |
| Space Requirement | May require larger installation area | Compact American style design saves space |
| Application Range | Limited cable connection applications | Power grids, industries, renewable energy, infrastructure |
Source: Comparison based on medium voltage distribution engineering practices, IEC-related equipment design principles, and Jihui Electric application experience.
At Jihui Electric, we believe that reliable products come from careful manufacturing. Every Medium Voltage Cable Connection Equipment requires strict control from design to final delivery.
Before production, our engineering team reviews technical requirements, including voltage level, cable specifications, installation conditions, and customer application environment.
During manufacturing, we follow standardized production procedures. Each component is checked before assembly, and every finished product receives inspection before shipment.
| Production Stage | Inspection Content | Quality Purpose |
|---|---|---|
| Material Inspection | Raw material and component checking | Ensure reliable product foundation |
| Assembly Process | Component installation accuracy | Improve product stability |
| Electrical Testing | Insulation and performance testing | Confirm safe operation |
| Final Inspection | Appearance, function, packaging | Ensure delivery quality |
Source: Data based on Jihui Electric internal production procedures and quality management practices.
At Jihui Electric, we develop our DFW-M-12kV American Style Cable Branch Box according to real-world power distribution needs. Different industries have different electrical challenges, but all customers require safe, stable, and efficient power connection solutions.
Our 12kV American Type Cable Branch Box is widely applied in medium voltage power networks, renewable energy systems, industrial facilities, commercial buildings, transportation projects, and infrastructure construction. It helps customers create flexible cable distribution systems with improved safety and reliability.
Modern cities require reliable underground power systems to support residential areas, commercial districts, and public facilities. Limited installation space and increasing electricity demand make compact electrical equipment more important than ever.
Our American style cable branch box provides an efficient solution for urban medium voltage networks. Its compact structure makes installation easier, while the protected enclosure helps maintain stable operation in outdoor environments.
Power companies can use our equipment to create flexible cable routes, connect new users, and improve distribution network management.
Renewable energy projects such as solar farms and wind power plants require reliable medium voltage equipment to collect and transmit generated electricity.
The DFW-M-12kV American Style Cable Branch Box provides safe cable connection between renewable energy equipment, transformers, and power networks. It supports stable power transmission and helps improve project reliability.
Because many renewable energy sites are located in open areas, our outdoor cable branch box is designed to handle changing environmental conditions, including temperature variation, humidity, and outdoor exposure.
Factories and industrial plants depend on continuous electricity to maintain production efficiency. Unexpected power interruptions can affect manufacturing schedules and increase operating costs.
Our Medium Voltage Cable Connection Equipment provides stable cable branching and connection functions for industrial power distribution systems.
Industries such as machinery manufacturing, mining, chemical processing, and production facilities can benefit from reliable medium voltage distribution solutions.
Commercial buildings, hospitals, shopping centers, airports, and transportation facilities need dependable power distribution systems to support daily operations.
The DFW-M-12kV American Style Cable Branch Box offers a practical solution for these applications. Its compact structure and reliable performance make it suitable for projects requiring efficient cable management.
Railways, tunnels, airports, and other transportation infrastructure projects require high reliability because electrical failures can affect public services.
Our 12kV Power Distribution Solution helps transportation projects achieve safer cable connection and more organized power distribution.
As a professional Outdoor Cable Branch Box Manufacturer, we understand that product quality depends on every manufacturing detail. At Jihui Electric, we combine experienced engineers, standardized production, and strict inspection procedures.
Before manufacturing, our engineering team studies customer requirements carefully. We analyze voltage level, cable specifications, installation conditions, and environmental requirements.
For customized projects, we communicate with customers to confirm technical details and develop suitable solutions.
The performance of electrical equipment depends greatly on material quality. We carefully select enclosure materials, insulation components, conductive parts, and mechanical structures.
All components must meet quality requirements before entering production. This process helps improve product reliability and service life.
During assembly, our technicians follow detailed production procedures. Each component is installed according to technical drawings and quality standards.
We focus on cable connection accuracy, insulation structure, sealing performance, and mechanical strength to ensure reliable operation.
Before shipment, every DFW-M-12kV American Style Cable Branch Box receives complete factory inspection.
Our testing process includes appearance inspection, structural checking, electrical performance testing, and packaging verification.
Only qualified products are delivered to customers. This helps reduce installation problems and ensures better performance after commissioning.
| Evaluation Factor | Traditional Cable Joint Solution | American Style Cable Branch Box Solution |
|---|---|---|
| Installation Management | Requires careful field connection work | Provides organized cable connection structure |
| Environmental Protection | More sensitive to outdoor conditions | Designed for outdoor medium voltage applications |
| System Expansion | Limited flexibility for future connection | Supports multiple cable branching options |
| Operation Reliability | Depends greatly on installation quality | Stable factory-controlled product quality |
Source: Data based on Jihui Electric engineering experience, medium voltage distribution applications, and industry design practices.
Choosing a cable branch box supplier means choosing a long-term partner for your power project. At Jihui Electric, we provide not only products but also technical support, manufacturing capability, and professional service.
Jihui Electric specializes in medium and low voltage power transmission and distribution equipment up to 35kV. Our experience covers various electrical products and project applications.
This allows us to understand different customer requirements and provide complete power distribution solutions.
Our production management follows international quality standards, including ISO9001 quality management certification, ISO14001 environmental management certification, and ISO45001 occupational health and safety certification.
These systems help us maintain stable production quality and improve management efficiency.
Every electrical project has different technical requirements. We provide customized designs according to cable type, voltage level, installation environment, and project standards.
Our engineering team supports customers during product selection, technical communication, and application planning.
We provide professional export services for customers worldwide. According to product size, quantity, and destination, we arrange suitable transportation methods including sea shipping, land transportation, and combined logistics.
Our products are professionally packed with moisture protection, shock protection, and collision protection to ensure safe transportation.
| Application | Recommended Product Type | Main Benefits |
|---|---|---|
| Urban power networks | DFW-M-12kV American Style Cable Branch Box | Compact design and reliable cable connection |
| Solar and wind projects | Outdoor 12kV Cable Branch Box | Strong environmental adaptability |
| Industrial plants | Medium Voltage Cable Branch Box | Stable power distribution performance |
| Infrastructure projects | Customized 12kV Cable Distribution Equipment | Flexible project integration |
Source: Recommendations based on Jihui Electric application experience and common medium voltage power distribution requirements.
The main purpose is to provide safe cable connection and branching for 12kV medium voltage power systems. It helps distribute electrical energy between different cable circuits while protecting connection points.
The product is suitable for power grids, renewable energy projects, industrial factories, commercial buildings, transportation systems, and infrastructure projects.
Yes. The product is designed for outdoor medium voltage applications and provides protection against common environmental conditions.
Yes. We provide customized solutions based on customer requirements, including cable specifications, installation conditions, and project standards.
We control quality through the entire process, including material inspection, production management, electrical testing, final inspection, and protective packaging.
At Jihui Electric Group Co., Ltd., we are committed to providing reliable, safe, and efficient electrical solutions for customers worldwide. Our DFW-M-12kV American Style Cable Branch Box combines practical design, professional manufacturing, and strict quality control.
As an experienced Medium Voltage Cable Branch Box Supplier, we understand that every power project requires dependable equipment. From product development and manufacturing to delivery and service, we work closely with customers to provide complete support.
Whether your project involves power distribution networks, renewable energy systems, industrial facilities, or infrastructure construction, Jihui Electric can provide suitable 12kV High Voltage Cable Distribution Equipment.
Choose Jihui Electric as your trusted partner for reliable cable branch box solutions. We are ready to support your next power distribution project with professional products and services.
