I. Overview:
The European style high-voltage cable branch box is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features are bidirectional opening of doors, use of through wall sleeves as connecting busbars, and significant advantages such as small length, clear cable arrangement, and no need for large-span crossing of three core cables. The cable connectors used comply with DIN47636 standard. Generally, bolt fixed cable joints with a rated current of 630A are used.
II. Usage environment
--Environmental temperature: Maximum temperature:+40 ° C, minimum temperature: -30 ° C
--Wind speed: equivalent to 34m/s (not greater than 700Pa)
--Humidity:
----The average daily relative humidity should not exceed 95%
----The average monthly relative humidity is not greater than 95%
--Seismic resistance: horizontal acceleration not exceeding 0.4m/s2, vertical acceleration not exceeding 0.15m/s2
--Installation site inclination: not greater than 3 °
--Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation site should not experience severe vibrations.
III. Function and Features:
--Fully insulated, fully sealed, fully protected, and under all working conditions.
--Flexible entry and exit lines, with a maximum of 8 branch entry and exit lines in practical applications.
--Resistant to floods, pollution, condensation, frost, and corrosion.
--Small size, compact structure, easy installation, and convenient operation.
--A live indicator can be installed to indicate to the operator that the circuit is live.
--SF6 switch can be installed.
--Cable type fault indicators can be installed for quick identification of cable faults.
--There are multiple box materials to choose from: ordinary steel with military grade green, mirror stainless steel, and stainless steel with military grade green.
| Model | Size |
| DFW-12kv | Customization |

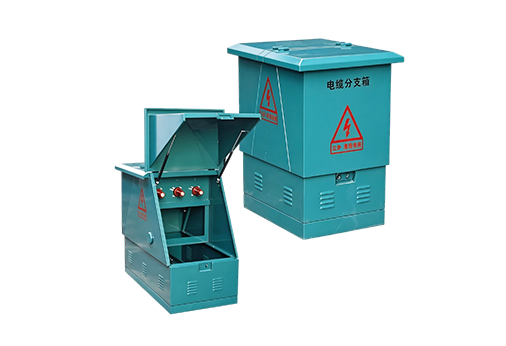

DFW-12kv European high voltage cable branch box for Reliable Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we focus on providing safe, stable, and efficient power transmission and distribution solutions for customers worldwide. Our DFW-12kV European High Voltage Cable Branch Box is designed to meet the needs of modern medium voltage power networks, offering reliable cable connection, branching, and distribution performance for various applications.
With years of experience in electrical equipment manufacturing, we understand that power distribution systems require more than basic connection functions. Customers need equipment that can operate safely in different environments, reduce maintenance costs, and provide long-term reliability. This is why we developed our European type cable branch box with a practical structure, excellent insulation performance, and strong environmental adaptability.
Located in Yueqing Economic Development Zone, China, Jihui Electric specializes in the research, development, manufacturing, sales, and service of medium and low voltage power transmission and distribution equipment up to 35kV. Our product range includes Cable accessories, Cable distribution boxes, ring main units, gas insulated switchgear, Solid Insulated Ring Main Units, Prefabricated Substations, combination transformers, SF6 load switches, and Vacuum circuit breakers.
We have obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification. These certifications represent our continuous commitment to quality control, environmental responsibility, and safe manufacturing.
The DFW-12kV European High Voltage Cable Branch Box is a medium voltage cable distribution device designed for safe cable connection and power branching in 12kV electrical networks. It provides a protected connection point between incoming and outgoing cables, helping improve the flexibility and reliability of power distribution systems.
Unlike traditional cable connection methods that may expose cable joints to external conditions, our European type cable branch box provides a sealed and protected structure. It helps reduce the influence of moisture, dust, temperature changes, and mechanical impact.
The equipment is widely used in urban power networks, industrial facilities, renewable energy projects, commercial buildings, transportation systems, and infrastructure construction. It is an important part of a complete 12kV Power Distribution Solution.
As a professional 12kV High Voltage Cable Branch Box Manufacturer, we design and manufacture equipment according to customer project requirements. Standard products and customized solutions are both available to meet different installation environments and technical specifications.
The working principle of our European High Voltage Cable Branch Box is based on safe electrical connection and protection. The equipment receives electrical power through incoming cables and distributes electricity through multiple outgoing cable circuits.
Inside the cable branch box, conductive components provide reliable electrical connection, while insulation materials maintain safe distance between electrical parts. The enclosure protects the internal structure and helps the equipment maintain stable operation in outdoor environments.
When used in medium voltage distribution systems, the cable branch box allows engineers to create flexible cable networks. This makes it easier to expand power systems, connect new users, and improve distribution efficiency.
Cable Input: Incoming medium voltage cables enter the branch box through protected cable connection points.
Electrical Distribution: Internal conductive components transfer power to different outgoing cable circuits.
Insulation Protection: Insulation materials reduce electrical risks and improve operational safety.
External Protection: The enclosure protects internal components from environmental conditions.
Power Network Expansion: The equipment supports flexible cable branching for future system development.
The main function of our DFW-12kV European High Voltage Cable Branch Box is providing a reliable connection point for medium voltage cables. A stable cable connection is essential for reducing electrical faults and improving the overall safety of power systems.
We carefully design the internal connection structure to ensure good electrical contact and long-term performance. This makes our product suitable for continuous operation in different power distribution applications.
Medium voltage equipment requires strong insulation performance to maintain safe operation. Our cable branch box uses reliable insulation materials and professional structural design to improve electrical safety.
The protected structure helps reduce the impact of humidity, dust, pollution, and changing weather conditions. This allows the equipment to maintain stable performance in outdoor and industrial environments.
Modern power projects often require equipment that saves installation space while maintaining high performance. Our European Type Cable Distribution Box adopts a compact design that makes transportation, installation, and maintenance easier.
The compact structure is especially suitable for urban areas where installation space is limited. It can also be integrated into underground power networks and outdoor distribution systems.
Power equipment is often installed in different environments, from cities and industrial areas to renewable energy sites. Our Outdoor High Voltage Cable Branch Box is designed to handle various operating conditions.
The enclosure provides protection against common environmental factors, helping improve service life and reduce maintenance requirements.
Different customers have different project requirements. Some applications require standard cable connection solutions, while others need customized designs.
At Jihui Electric, we support customized solutions based on cable specifications, installation conditions, voltage requirements, and project standards. Our engineering team works closely with customers to provide suitable products.
When selecting electrical equipment, customers usually focus on safety, reliability, installation convenience, and long-term operating costs. Our DFW-12kV European High Voltage Cable Branch Box is developed to meet these practical needs.
Compared with traditional cable connection methods, our product provides better protection, easier installation, and improved system flexibility.
| Comparison Item | Traditional Cable Connection Method | DFW-12kV European High Voltage Cable Branch Box |
|---|---|---|
| Environmental Protection | Cable joints may be more affected by moisture and external conditions | Protected enclosure improves environmental resistance |
| Installation Space | Requires larger installation area | Compact European design saves space |
| Maintenance Requirement | Higher inspection demand in outdoor environments | Reliable structure reduces maintenance difficulty |
| System Expansion | Limited cable branching flexibility | Supports flexible network expansion |
| Application Range | Basic cable connection projects | Power grids, industries, renewable energy, infrastructure |
Source: Comparison based on medium voltage distribution engineering practices, IEC-related equipment design principles, and Jihui Electric project experience.
At Jihui Electric, we believe reliable electrical equipment starts with careful manufacturing. A high-quality Medium Voltage Cable Connection Equipment requires strict control from design, material selection, assembly, and testing.
Before production, our engineering team reviews technical requirements, including rated voltage, cable type, installation environment, and customer application conditions.
During manufacturing, we follow standardized production procedures. Each component is inspected before assembly, and every finished product receives quality checks before delivery.
Our goal is simple: provide customers with safe, reliable, and practical power distribution equipment that can support their projects for many years.
| Production Stage | Main Inspection Content | Purpose |
|---|---|---|
| Material Inspection | Raw material quality and specification checking | Ensure reliable product foundation |
| Component Assembly | Connection accuracy and structural installation | Improve product stability |
| Electrical Testing | Insulation and performance verification | Confirm safe operation |
| Final Inspection | Appearance, function, and packaging inspection | Ensure delivery quality |
Source: Data based on Jihui Electric internal manufacturing procedures and quality management requirements.
At Jihui Electric, we design our DFW-12kV European High Voltage Cable Branch Box based on the real needs of different industries. Every project has its own challenges, but the demand for safe and stable electricity is always the same. Our cable branch box provides a reliable connection solution for medium voltage power networks in various environments.
From city distribution systems to renewable energy plants, our 12kV High Voltage Cable Branch Box helps customers improve power network flexibility, simplify cable management, and maintain reliable electrical operation.
With the continuous development of cities, underground and compact power distribution systems are becoming more common. Urban areas require electrical equipment that can provide reliable performance while using limited installation space.
Our European Type Cable Distribution Box is suitable for urban medium voltage networks, residential areas, commercial zones, and public facilities. The compact structure allows easier installation in areas where space is limited.
By providing safe cable branching and connection points, the equipment helps power companies improve network management and support future expansion.
Renewable energy projects such as solar farms and wind power stations are usually built in open areas where electrical equipment must handle changing environmental conditions.
Our Outdoor High Voltage Cable Branch Box provides reliable cable connection and distribution for renewable energy collection systems. It helps connect power generation equipment, transformers, and grid connection points.
The strong insulation performance and durable structure make it suitable for long-term outdoor operation, helping renewable energy projects maintain stable electricity transmission.
Industrial companies depend on continuous power supply to maintain production efficiency. Manufacturing plants, mining operations, chemical facilities, and processing factories all require dependable electrical systems.
Our Medium Voltage Cable Connection Equipment supports industrial power distribution by providing secure cable connection and reliable electrical performance.
The equipment helps reduce the risk of power interruptions and supports safer operation in demanding industrial environments.
Commercial buildings such as shopping centers, office buildings, hospitals, and transportation facilities require efficient power distribution solutions.
The DFW-12kV European High Voltage Cable Branch Box provides a practical solution for these applications. Its compact design and reliable protection make it suitable for modern building electrical systems.
Infrastructure projects such as airports, tunnels, railway systems, and public facilities can also benefit from stable medium voltage cable connection solutions.
Mining and petrochemical environments often require electrical equipment with strong reliability because equipment failure may affect production safety and efficiency.
Our 12kV cable branch box provides dependable performance for industrial power networks and supports stable operation in complex working conditions.
As an experienced 12kV High Voltage Cable Branch Box Manufacturer, we understand that product quality is created through every manufacturing step. At Jihui Electric, we combine professional engineering knowledge with strict production management.
Before manufacturing starts, our engineering team studies customer requirements carefully. We review voltage level, cable specifications, installation conditions, and project standards.
For customized orders, we communicate with customers to confirm technical details and provide suitable solutions based on actual application requirements.
High-quality materials are the foundation of reliable electrical equipment. We carefully select materials for the enclosure, insulation parts, conductive components, and mechanical structures.
Each material must meet our internal quality requirements before entering production. This helps ensure good electrical performance and long service life.
During production, our technicians follow standardized assembly procedures. Components are installed according to technical drawings and quality requirements.
We focus on connection accuracy, insulation performance, structural strength, and sealing quality to ensure stable equipment operation.
Before shipment, every DFW-12kV European High Voltage Cable Branch Box receives a complete inspection process.
We check electrical performance, mechanical structure, appearance quality, and packaging conditions. Only qualified products are delivered to customers.
Selecting an electrical equipment supplier is not only about purchasing a product. Customers need a partner who understands engineering requirements, manufacturing standards, and project challenges.
Jihui Electric specializes in medium and low voltage power transmission and distribution equipment up to 35kV. We provide complete solutions including cable distribution boxes, ring main units, prefabricated substations, combination transformers, SF6 load switches, and vacuum circuit breakers.
Our experience allows us to support customers from different industries with professional electrical solutions.
We have established a complete quality management system based on ISO9001, ISO14001, and ISO45001 certifications.
These management systems guide our production process, environmental practices, and workplace safety standards. They help us maintain consistent product quality and reliable manufacturing performance.
Different projects require different designs. We provide customized solutions according to cable type, installation environment, voltage requirements, and customer specifications.
Our engineering team works with customers to optimize product design and ensure the equipment fits the actual project.
We provide international customers with complete export support, including technical communication, production arrangement, quality inspection, packaging, and transportation coordination.
According to customer location and product requirements, we arrange sea transportation, land transportation, or combined logistics solutions.
Before shipment, products receive professional protection packaging including moisture prevention, vibration protection, and impact protection to ensure safe delivery.
| Application Scenario | Recommended Equipment | Main Advantage |
|---|---|---|
| Urban power networks | DFW-12kV European High Voltage Cable Branch Box | Compact design and flexible installation |
| Renewable energy plants | Outdoor 12kV Cable Branch Box | Strong environmental adaptability |
| Industrial factories | Medium Voltage Cable Connection Equipment | Stable operation and reliable connection |
| Commercial infrastructure | European Type Cable Distribution Box | Efficient power distribution management |
Source: Application recommendations are based on Jihui Electric engineering experience, medium voltage distribution practices, and customer project requirements.
The main function is to provide a safe connection and branching point for 12kV medium voltage cables. It helps distribute electricity between different cable circuits while protecting internal connection components.
It can be used in urban power grids, renewable energy projects, industrial facilities, commercial buildings, transportation systems, and infrastructure projects.
Yes. We provide customized solutions according to cable specifications, installation conditions, technical parameters, and customer project requirements.
Jihui Electric has obtained ISO9001 quality management certification, ISO14001 environmental management certification, and ISO45001 occupational health and safety certification.
We conduct strict inspections throughout the manufacturing process, including material checking, assembly inspection, electrical testing, final inspection, and protective packaging.
At Jihui Electric Group Co., Ltd., we are committed to providing safe, reliable, and efficient power distribution solutions for customers worldwide. Our DFW-12kV European High Voltage Cable Branch Box combines practical design, professional manufacturing, and strict quality control.
As a professional Medium Voltage Cable Connection Equipment Supplier, we understand the importance of stable electrical systems. From product design and manufacturing to delivery and after-sales service, we support customers throughout the entire project process.
Whether you need equipment for power grids, renewable energy projects, industrial facilities, or infrastructure construction, our team can provide suitable 12kV Power Distribution Solutions.
Choose Jihui Electric as your trusted partner for high-quality cable branch box solutions. We are ready to help you build safer, more reliable, and more efficient power networks.
