I. Overview
The VS1-12 indoor high-voltage Vacuum circuit breaker is a three-phase AC 50Hz indoor switchgear with a rated voltage of 12kV. It can be used for the operation and protection of industrial and mining enterprises, power plants, substations, and electrical facilities, and is suitable for frequent operation places. By integrating the mechanical operating mechanism with the circuit breaker body, it can be designed as a fixed installation unit or equipped with a dedicated propulsion mechanism to form a handcart unit for use. The main circuit can be equipped with integral fixed pole to achieve miniaturization, high reliability, and maintenance free of circuit breakers. It can be used with KY28A-12 mid mounted handcart switchgear or XGN fixed switchgear.
II. Environmental conditions for use
1. Environmental temperature: upper limit+40 ℃, lower limit -15 ℃ (storage and transportation allowed at -30 ℃);
2. Altitude: not exceeding 2000m;
3. Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
4. Saturated vapor pressure: The daily average value shall not exceed 2.2 × 10Mpa, and the monthly average value shall not exceed 1.8 × 10Mpa;
5. The seismic intensity shall not exceed 8 degrees;
6. No places with fire, explosion, serious pollution, chemical corrosion, or severe vibration.
| Model | Size |
| ZN63(VS1)-12 | 820*730*780mm |

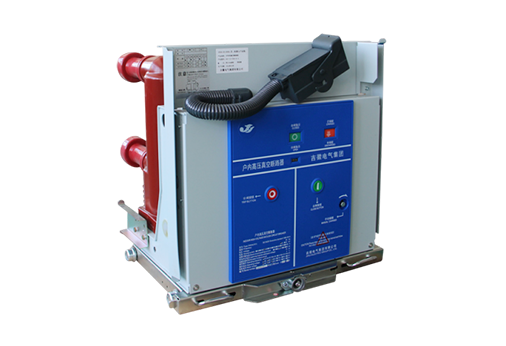

ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker for Reliable Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we focus on developing and manufacturing reliable power transmission and distribution equipment up to 35kV. With years of experience in the electrical equipment industry, we provide solutions for power utilities, industrial companies, renewable energy projects, infrastructure construction, and commercial applications.
Our ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker is designed for modern medium voltage power systems that require safe operation, stable performance, and convenient maintenance. As a professional manufacturer of Vacuum circuit breakers, we combine advanced vacuum interruption technology with practical engineering design to help customers build safer and more efficient electrical networks.
The ZN63A-12 VS1 series is widely used in 12kV indoor switchgear systems. It provides reliable control and protection for transformers, cables, motors, generators, and other important electrical equipment. With a handcart structure, the circuit breaker can be easily moved, installed, and maintained, making it a suitable choice for many medium voltage applications.
We understand that electrical equipment is not only a product but also an important part of a complete power system. Therefore, every vacuum circuit breaker we manufacture is produced under strict quality control, tested before delivery, and designed to meet different project requirements.
The ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker is a medium voltage switching device mainly used in AC power systems with a rated voltage of 12kV. It is installed inside metal enclosed switchgear and provides protection by quickly interrupting abnormal current conditions.
Unlike traditional circuit breakers that may use oil as an arc extinguishing medium, our VS1 vacuum circuit breaker uses vacuum interruption technology. When electrical faults occur, the vacuum interrupter quickly separates the contacts and extinguishes the arc, protecting the electrical system from damage.
The handcart design allows the breaker body to be moved between working position and test position. This structure improves operation flexibility and makes maintenance work easier for engineers.
Our ZN63A-12 series combines:
Reliable vacuum interruption technology
Strong insulation performance
Compact handcart structure
Long mechanical service life
Low maintenance requirements
Flexible installation for indoor switchgear systems
For customers looking for a dependable 12kV indoor vacuum circuit breaker, the ZN63A-12 VS1 series provides a practical solution for modern power distribution systems.
The working principle of our vacuum circuit breaker is based on vacuum arc extinguishing technology. The process is simple but highly effective.
When the electrical system operates normally, the circuit breaker contacts remain closed and allow current to pass through. When a fault such as short circuit current or overload happens, the protection relay sends a signal to the operating mechanism.
The operating mechanism quickly separates the internal contacts. At this moment, an electric arc appears between the contacts. Because the contact area is inside a vacuum interrupter, there are very few gas particles available to maintain the arc. The arc disappears quickly, and the circuit is safely disconnected.
After the fault is removed, the circuit breaker can be operated again according to system requirements.
| Working Process | Description | Benefit |
|---|---|---|
| Normal Operation | Contacts remain closed and transfer electrical current | Stable power supply |
| Fault Detection | Protection system sends opening command | Fast response to abnormal conditions |
| Vacuum Interruption | Vacuum chamber extinguishes electrical arc | Protects equipment safety |
| Reset Operation | Breaker returns to service after inspection | Improves system availability |
Source: Working principle reference based on IEC 62271-100 High-voltage switchgear and controlgear standards and common vacuum circuit breaker technology practices.
The vacuum interrupter is the core component of the ZN63A-12 VS1 circuit breaker. We use reliable vacuum technology to achieve fast arc extinguishing and stable switching performance.
This design reduces contact wear and improves the working life of the equipment. For power distribution systems that require frequent operation, this feature helps reduce downtime and maintenance costs.
One important advantage of this product is the handcart structure. Compared with fixed installation designs, the movable structure provides more convenience during installation, testing, and maintenance.
The breaker can be moved between different positions inside the switchgear cabinet, allowing operators to complete inspection work more safely and efficiently.
Electrical insulation directly affects the safety and reliability of medium voltage equipment. Our ZN63A-12 VS1 vacuum circuit breaker uses high-quality insulation materials to improve electrical performance.
The insulation system helps the equipment operate reliably under different indoor conditions, including industrial environments with long-term operation requirements.
Modern electrical projects often require equipment with smaller size and higher performance. Our indoor vacuum handcart circuit breaker adopts a compact structure, helping customers optimize switchgear space.
This makes it suitable for urban substations, factories, commercial buildings, and renewable energy facilities where installation space is limited.
Because vacuum technology does not require oil filling or regular oil replacement, maintenance work becomes easier compared with traditional oil circuit breakers.
Customers can reduce inspection workload while maintaining reliable electrical protection performance.
At Jihui Electric, our engineering team focuses on practical improvements that make electrical equipment safer and easier to use. The ZN63A-12 VS1 series is developed according to customer needs and real project applications.
Safety is the first consideration in medium voltage power systems. Our vacuum circuit breaker provides fast fault interruption, helping protect transformers, cables, motors, and other important equipment.
The enclosed structure reduces direct contact with internal electrical parts and improves operator safety during daily operation.
The ZN63A-12 series provides stable electrical characteristics, including reliable insulation, accurate switching operation, and strong breaking capability.
These advantages make it suitable for applications requiring continuous and dependable power distribution.
| Technical Item | ZN63A-12 VS1 Vacuum Circuit Breaker | Traditional Oil Circuit Breaker |
|---|---|---|
| Arc Extinguishing Method | Vacuum interruption | Oil interruption |
| Maintenance Requirement | Low maintenance | Requires oil inspection and maintenance |
| Environmental Impact | No oil leakage risk | Possible oil pollution concern |
| Installation Type | Indoor handcart switchgear | Mainly fixed installation |
| Application Voltage | 12kV medium voltage system | Medium voltage applications |
Source: Comparison data is summarized from IEC 62271-100 requirements, industry technical references, and general medium voltage switchgear application experience.
Different industries have different requirements for electrical protection equipment. We provide vacuum circuit breaker solutions because they offer a good balance between reliability, safety, and operating cost.
| Feature | Vacuum Circuit Breaker | SF6 Circuit Breaker | Oil Circuit Breaker |
|---|---|---|---|
| Maintenance Level | Low | Medium | Higher |
| Operating Environment | Suitable for indoor switchgear | Suitable for various voltage systems | Requires oil management |
| Environmental Requirement | Clean operation | Requires gas handling | Requires oil handling |
| Common Application | Medium voltage distribution systems | Medium and high voltage systems | Traditional power networks |
Source: Technical comparison based on IEC switchgear standards and publicly available electrical industry information.
Modern power networks require equipment that can provide reliable protection while reducing maintenance costs. The ZN63A-12 indoor high-voltage vacuum handcart circuit breaker meets these requirements through advanced technology and practical design.
For power companies, stable operation means fewer service interruptions. For industrial users, reliable protection helps maintain production efficiency. For engineering contractors, easy installation and maintenance can improve project management.
Our goal is to provide more than a circuit breaker. We provide a complete medium voltage power protection solution that supports customers throughout the entire project process.
At Jihui Electric Group, we design our products according to the real needs of different industries. The ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker is widely used in power distribution systems where safety, reliability, and easy maintenance are important.
From utility power networks to industrial factories and renewable energy projects, our customers use this 12kV vacuum circuit breaker to control electrical circuits, protect important equipment, and improve overall system stability.
Power companies need switching equipment that can operate continuously under demanding conditions. Our ZN63A-12 VS1 vacuum circuit breaker is commonly installed in indoor substations, distribution rooms, and medium voltage switchgear systems.
When abnormal conditions occur, such as short circuits or overloads, the circuit breaker quickly disconnects the fault current and helps prevent damage to transformers, cables, and other electrical equipment.
Renewable energy projects such as solar farms and wind power plants require stable medium voltage protection solutions. The generated electricity must be safely transmitted from generation equipment to the power grid.
Our 12kV indoor vacuum handcart circuit breaker provides reliable switching and protection functions for renewable energy distribution systems, helping project owners improve operational safety and equipment reliability.
Manufacturing plants often operate large motors, production lines, and automated equipment that require stable power supply. Unexpected electrical failures can affect production schedules and increase operating costs.
By using our VS1 vacuum circuit breaker in industrial switchgear systems, factories can achieve better electrical protection and reduce the risk of equipment damage caused by electrical faults.
Rail transportation systems, airports, commercial buildings, and urban facilities require reliable electrical distribution equipment. The compact design of our ZN63A-12 handcart vacuum circuit breaker makes it suitable for indoor electrical rooms where space efficiency is important.
Its stable operation and convenient maintenance characteristics support the continuous operation requirements of modern infrastructure projects.
Mining and petrochemical industries usually have strict requirements for electrical safety. Equipment failure may influence production safety and operational efficiency.
Our high-voltage vacuum circuit breaker provides dependable circuit control and protection for these industries, helping customers maintain safer power distribution systems.
At Jihui Electric, we believe that reliable electrical equipment comes from careful manufacturing. From raw material selection to final testing, every production step is managed by experienced engineers and quality control teams.
Our manufacturing process combines modern production technology with strict inspection procedures to ensure every ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker delivers stable performance after installation.
Before production, our engineering team studies electrical requirements, mechanical structure, and application conditions. We optimize the circuit breaker design according to medium voltage system requirements.
The VS1 series design focuses on:
Reliable vacuum interruption performance
Stable mechanical operation
Strong insulation capability
Easy installation and maintenance
Long service life
High-quality materials are important for electrical equipment reliability. We carefully select insulation materials, conductive components, metal structures, and mechanical parts according to technical standards.
The vacuum interrupter, operating mechanism, and handcart structure are manufactured with attention to accuracy and durability.
During assembly, our technicians follow standardized procedures to ensure every component works correctly together. Mechanical parts are adjusted carefully to achieve smooth opening and closing operations.
The handcart mechanism is tested to ensure convenient movement between operating position, test position, and maintenance position.
Before products leave our factory, each vacuum circuit breaker undergoes complete inspection and performance testing. We check electrical characteristics, mechanical operation, insulation performance, and overall quality.
| Testing Item | Testing Purpose | Quality Control Method |
|---|---|---|
| High Voltage Withstand Test | Verify insulation safety | Electrical performance testing |
| Mechanical Operation Test | Check opening and closing reliability | Repeated operation inspection |
| Breaking Performance Test | Confirm interruption capability | Factory testing procedure |
| Appearance Inspection | Ensure product quality | Visual and dimensional checking |
Source: Inspection procedures are based on IEC 62271-100 high-voltage switchgear standards and Jihui Electric internal quality control requirements.
Quality is one of the most important factors when customers select electrical equipment suppliers. At Jihui Electric, we build our quality system around stable production, careful inspection, and continuous improvement.
Our company has obtained internationally recognized management certifications:
ISO9001: Quality Management System Certification
ISO14001: Environmental Management System Certification
ISO45001: Occupational Health and Safety Management System Certification
These certifications represent our commitment to product quality, environmental responsibility, and safe manufacturing practices.
For every ZN63A-12 VS1 vacuum handcart circuit breaker, we complete production inspection and performance testing before shipment. This helps ensure that customers receive products ready for reliable operation.
Jihui Electric Group specializes in research, development, manufacturing, sales, and service of medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range includes:
Ring main units
Combination transformers
Vacuum circuit breakers
With professional manufacturing experience, we understand the challenges faced by power companies, contractors, and industrial users.
Every project has different requirements. Some customers need standard products, while others require customized solutions based on installation conditions, electrical parameters, and project specifications.
Our engineering team works closely with customers to provide suitable configurations and technical support.
We provide professional support throughout the whole purchasing process, including technical communication, production arrangement, inspection, packaging, and transportation.
For export projects, we select suitable transportation methods according to product size, quantity, and destination. Products are professionally packaged with protection against moisture, impact, and transportation risks.
For standard products, we arrange production and delivery according to inventory and order conditions. For customized products, we confirm technical details first and then organize production according to project requirements.
Our service does not end after delivery. We continue providing technical assistance and support to help customers use our equipment effectively.
The ZN63A-12 VS1 vacuum circuit breaker is designed for 12kV medium voltage power distribution systems. It is commonly used in indoor switchgear applications for electrical control and protection.
The handcart design allows easier installation, testing, and maintenance. Operators can move the breaker between different positions inside the switchgear cabinet, improving operation flexibility and safety.
It is widely used in substations, industrial plants, renewable energy projects, rail transit systems, commercial buildings, mining facilities, and other medium voltage applications.
Because it uses vacuum interruption technology, the ZN63A-12 VS1 circuit breaker requires less maintenance compared with many traditional oil circuit breakers. Regular inspection according to operating conditions is recommended.
Yes. We provide customized solutions according to customer technical requirements, project conditions, and application environments.
At Jihui Electric Group, our goal is to provide safe, reliable, and efficient power distribution solutions for customers worldwide. The ZN63A-12 (VS1) indoor high-voltage vacuum handcart circuit breaker represents our commitment to quality manufacturing, practical engineering, and professional service.
With advanced vacuum interruption technology, strong insulation performance, flexible handcart operation, and strict quality control, our vacuum circuit breakers help customers build safer and more stable medium voltage power systems.
If you are searching for a reliable ZN63A-12 VS1 vacuum circuit breaker manufacturer, 12kV indoor high-voltage vacuum handcart circuit breaker supplier, or medium voltage switchgear protection solution, Jihui Electric is ready to support your project with professional products and complete service.
