I. Overview

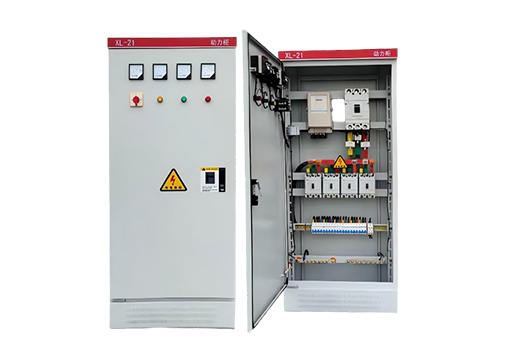

XL-21 power distribution cabinet is widely used in power plants and industrial and mining enterprises. It is used for power or lighting distribution in three-phase three wire, three-phase four wire, three-phase five wire and other distribution systems with AC voltage below 500V. It is installed indoors against the wall, operated in front of the screen, and maintained in front of the screen; The box is a fully enclosed structure, assembled from C or 8MF profiles. The box adopts a new type of rotary load isolation switch, which can be operated with load. The front door is equipped with voltage and current indicator instruments, as well as main control components such as signal lights, buttons, and conversion switches. This distribution box adopts newly designed components, which are compact in structure, aesthetically pleasing in appearance, and easy to maintain. Multiple wiring schemes are available for users to choose from.
II. Terms of Use
-- Environmental temperature: -5 ℃ -+40 ℃, and the average temperature within 24 hours does not exceed+35 ℃.
-- Altitude: not exceeding 2000m.
-- Relative humidity: not exceeding 50% when the ambient air temperature is+40 ℃; At lower temperatures, there can be higher relative humidity (e.g. 90% at+20 ℃), allowing for moderate condensation due to temperature changes.
-- The inclination angle between the equipment and the vertical plane during installation should not exceed 5 °.
-- The equipment should be installed in a place without severe vibration, impact, and corrosion.
| Model | Size |
| XL-21 | 70*37*170cm |
XL-21 Type Power Distribution Cabinet for Reliable Low Voltage Power Management
At Jihui Electric Group Co., Ltd., we specialize in the research, development, manufacturing, and service of medium and low voltage power transmission and distribution equipment. With years of experience in the electrical industry, we have provided reliable power solutions for industrial enterprises, engineering contractors, energy projects, and infrastructure customers around the world.
Electricity is the foundation of modern industry. Whether it is a manufacturing factory, commercial building, renewable energy project, or public facility, stable power distribution is essential for daily operation. Our XL-21 Type Power Distribution Cabinet is designed to provide safe, efficient, and practical low-voltage power distribution solutions for different application environments.
As an experienced electrical equipment manufacturer, we understand that customers need more than just a cabinet. They need equipment that can operate reliably, protect electrical systems, simplify maintenance, and support future expansion.
The XL-21 power distribution cabinet combines a practical structural design, reliable electrical components, and flexible configuration options. It is widely used in industrial plants, commercial facilities, power distribution systems, and infrastructure projects.
The XL-21 Type Power Distribution Cabinet is a low-voltage electrical cabinet designed for power distribution, circuit control, and electrical protection applications.
In simple terms, it works as a central point that receives electrical power from the main supply and distributes electricity safely to different loads. It helps operators manage electrical equipment while providing protection against abnormal conditions.
Compared with simple electrical boxes, a professional power distribution cabinet integrates multiple functions, including power distribution, protection, measurement, and control. This makes it suitable for complex electrical systems where safety and stability are important.
Our XL-21 Type Power Distribution Cabinet is commonly applied in:
Industrial manufacturing plants
Commercial buildings
Power distribution rooms
Infrastructure projects
Industrial parks
Energy facilities
For customers, choosing the right distribution cabinet means improving electrical safety, reducing operation risks, and creating a more reliable power environment.
The working principle of XL-21 power distribution cabinet is based on receiving, controlling, and distributing electrical energy through a safe and organized system.
When electricity enters the cabinet from the incoming power source, the main switching equipment receives the power and transfers it through internal conductors and busbar systems.
The cabinet then distributes electricity to different outgoing circuits according to application needs. Each circuit can supply power to different electrical loads, such as motors, lighting systems, production machines, and other equipment.
Protection devices inside the cabinet monitor electrical conditions. When problems such as overload, short circuit, or abnormal current occur, protective components help disconnect the affected circuit to reduce potential damage.
This design allows users to manage power distribution safely while improving the stability of the whole electrical system.
During our manufacturing process, we focus on every structural detail because each part affects the long-term performance of the equipment.
The cabinet frame provides mechanical support and protection for internal components. A strong structure helps the equipment maintain stable performance during transportation, installation, and operation.
The busbar system is responsible for electrical energy transmission inside the cabinet. Proper design helps ensure stable current distribution and reliable electrical connection.
Switching devices control the connection and disconnection of electrical circuits. They play an important role in daily operation and system protection.
Protection components help monitor electrical conditions and improve system safety. According to project requirements, the cabinet can be equipped with different control and measurement devices.
| Component | Main Function | Customer Value |
|---|---|---|
| Cabinet Frame | Provides mechanical protection | Improves equipment durability |
| Busbar System | Transfers electrical energy | Ensures stable power distribution |
| Switching Device | Controls electrical circuits | Improves operation safety |
| Protection System | Detects abnormal conditions | Reduces electrical risks |
Source: Structure information is based on low-voltage power distribution cabinet design practices and Jihui Electric engineering experience.
For industrial users, power reliability directly affects production efficiency. Our XL-21 Type Power Distribution Cabinet is designed to provide stable electrical distribution under different working conditions.
Through professional manufacturing and quality inspection, we ensure that each cabinet can meet customer application requirements.
Space utilization is an important consideration in electrical rooms. The XL-21 cabinet adopts a practical layout that helps organize internal components effectively.
A clear internal structure also makes installation and maintenance easier for technicians.
Different industries have different electrical requirements. Some projects need more outgoing circuits, while others require specific control functions.
We provide customized configurations according to customer technical requirements, application conditions, and project specifications.
Electrical safety is always one of our main design considerations. The cabinet structure and internal protection components work together to improve operating safety.
This helps reduce risks caused by electrical faults and supports reliable long-term operation.
Based on our manufacturing experience, we believe that good electrical equipment should combine safety, performance, and practical operation.
| Technical Feature | Description | Application Benefit |
|---|---|---|
| Low Voltage Distribution Design | Suitable for industrial and commercial power systems | Wide application range |
| Reliable Cabinet Structure | Strong mechanical protection | Long service life |
| Flexible Configuration | Supports customized layouts | Matches different projects |
| Safety Protection System | Helps prevent electrical faults | Improves operation reliability |
Source: Technical advantages are based on XL-21 power distribution cabinet application requirements and Jihui Electric product engineering standards.
Many customers compare different cabinet solutions before making a decision. The main difference is not only the appearance but also the internal design, protection ability, and application flexibility.
| Comparison Item | XL-21 Type Power Distribution Cabinet | Traditional Electrical Cabinet |
|---|---|---|
| Application | Designed for organized power distribution | Usually used for basic electrical control |
| Configuration | Supports flexible component arrangement | Limited customization options |
| Maintenance | Clear internal structure | May require more inspection time |
| Protection | Integrated electrical protection design | Depends on external components |
Source: Comparison is based on common electrical cabinet application practices and Jihui Electric engineering analysis.
In modern industries, electrical systems support almost every important operation. A small power problem can interrupt production, affect equipment performance, and increase maintenance costs.
A reliable XL-21 Type Power Distribution Cabinet helps companies:
Improve electrical system safety
Manage power distribution more efficiently
Protect downstream equipment
Reduce unexpected downtime
Support future electrical expansion
At Jihui Electric, we focus on creating practical electrical solutions that help customers operate with greater confidence.
During our years of providing electrical equipment solutions, we have learned that different industries have different requirements for power distribution systems. Some customers focus on stable factory operation, while others need reliable electrical support for large infrastructure projects.
Our XL-21 Type Power Distribution Cabinet is designed to meet these practical needs. With reliable structure, flexible configuration, and safe operation performance, it provides an effective solution for low-voltage power distribution systems.
Industrial factories usually operate many electrical devices, including motors, production lines, pumps, fans, compressors, and automation equipment. These systems require continuous and stable power supply.
The XL-21 power distribution cabinet helps factories organize electrical distribution and improve system management. It can distribute power to different production areas while providing protection for electrical circuits.
Typical industrial applications include:
Automotive manufacturing plants
Mechanical processing factories
Electronic production facilities
Food processing plants
Chemical industry projects
Modern commercial buildings require reliable electricity for lighting, elevators, air conditioning, security systems, and daily operations.
Our XL-21 Type Power Distribution Cabinet provides organized electrical distribution and helps maintain safe operation in commercial environments.
Common applications include:
Office buildings
Shopping centers
Hotels
Hospitals
Public facilities
Renewable energy development requires more efficient electrical management. Solar power plants, energy storage systems, and other clean energy projects need reliable low-voltage distribution equipment.
Our XL-21 cabinet can support renewable energy electrical systems by providing stable power distribution and protection functions.
Large infrastructure projects usually require electrical equipment that can operate safely for a long time. Industrial parks, transportation facilities, and municipal projects all depend on reliable power systems.
With professional manufacturing and strict quality control, our XL-21 Type Power Distribution Cabinet helps customers build stable electrical networks.
| Industry | Electrical Challenge | XL-21 Solution |
|---|---|---|
| Manufacturing | Continuous production power demand | Stable power distribution and protection |
| Commercial Buildings | Daily high electricity usage | Safe and organized power management |
| Renewable Energy | Changing energy conditions | Reliable low-voltage distribution |
| Infrastructure | Long-term operating requirements | Durable electrical equipment solution |
Source: Application information is based on common low-voltage power distribution requirements and Jihui Electric customer project experience.
At Jihui Electric, we believe that product quality comes from every production step. A reliable power distribution cabinet requires accurate engineering design, professional assembly, and strict testing.
Our manufacturing process focuses on improving product consistency and ensuring that each cabinet can operate safely after installation.
Before production begins, our engineering team communicates with customers to understand project requirements, including voltage level, installation environment, electrical configuration, and special functions.
Based on this information, we provide suitable XL-21 power distribution cabinet solutions that match the actual application.
The quality of raw materials directly affects equipment performance. We carefully inspect important materials and electrical components before production.
This process helps ensure stable product quality and reduces potential problems during operation.
The cabinet frame is manufactured according to technical drawings and production standards. Accurate dimensions are important because they affect component installation and overall equipment performance.
A strong cabinet structure also helps protect internal electrical components during transportation and daily operation.
Professional technicians complete internal wiring, component installation, protection system assembly, and electrical connection according to engineering requirements.
Every connection is carefully checked because electrical reliability depends on manufacturing accuracy.
Before delivery, every XL-21 Type Power Distribution Cabinet is inspected and tested.
Our inspection process includes:
Cabinet appearance inspection
Internal wiring checking
Electrical connection inspection
Functional testing
Final quality confirmation
| Production Stage | Main Work | Quality Objective |
|---|---|---|
| Design | Confirm technical solution | Match customer requirements |
| Material Inspection | Check components and materials | Ensure reliable input quality |
| Assembly | Install cabinet and electrical parts | Maintain production accuracy |
| Testing | Verify electrical performance | Ensure safe delivery |
For electrical equipment, quality is not only about appearance. The most important thing is whether the equipment can provide stable performance after years of operation.
At Jihui Electric, we have established a complete quality management system covering product design, manufacturing, testing, and delivery.
Our certifications include:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These systems help us maintain consistent manufacturing standards and provide reliable electrical equipment for customers worldwide.
Jihui Electric Group Co., Ltd. specializes in medium and low voltage power transmission and distribution equipment up to 35kV.
Our product range includes:
XL-21 Type Power Distribution Cabinet
GGD low voltage switchgear
Ring main units
Combination transformers
This complete product range allows us to provide customers with integrated power distribution solutions instead of only individual products.
Every project has different electrical requirements. A factory, commercial building, and renewable energy facility may require different cabinet configurations.
Our engineering team can customize solutions according to:
Electrical parameters
Installation conditions
Project specifications
Customer technical requirements
For overseas customers, we provide complete export services, including production scheduling, inspection, packaging, and transportation arrangement.
According to product size and destination, we support sea transportation, land transportation, and multimodal logistics solutions.
We believe cooperation continues after delivery. Our technical team provides communication and support to help customers install and operate equipment successfully.
XL-21 Type Power Distribution Cabinet is mainly used for low-voltage power distribution, electrical control, and circuit protection in industrial and commercial power systems.
They are widely used in manufacturing plants, commercial buildings, renewable energy projects, industrial parks, transportation facilities, and infrastructure projects.
Yes. We can provide customized solutions according to customer requirements, including cabinet structure, electrical components, configuration, and technical specifications.
The cabinet integrates protection components and organized electrical structures to help manage power distribution safely and reduce electrical risks.
We control quality through engineering design, material inspection, production management, electrical testing, and final inspection before shipment. Our ISO9001, ISO14001, and ISO45001 systems support our quality control process.
A stable electrical system requires equipment that can provide safe operation, reliable performance, and long-term service value. Our XL-21 Type Power Distribution Cabinet is designed to meet these needs with practical engineering and professional manufacturing.
At Jihui Electric, we combine technical experience, production capability, and customer-focused service to provide reliable low-voltage power distribution solutions for customers worldwide.
Whether your project is an industrial factory, commercial facility, renewable energy system, or infrastructure project, our team can provide suitable electrical solutions based on your actual requirements.
