At Jihui Electric Group Co., Ltd., we focus on providing reliable medium and low voltage power distribution solutions for customers around the world. With years of experience in electrical equipment manufacturing, we understand that every power project requires safe operation, stable performance, and long service life. Our SRM16-12 Inflatable Switch Cabinet T Series is designed to meet these practical requirements in modern power distribution systems.

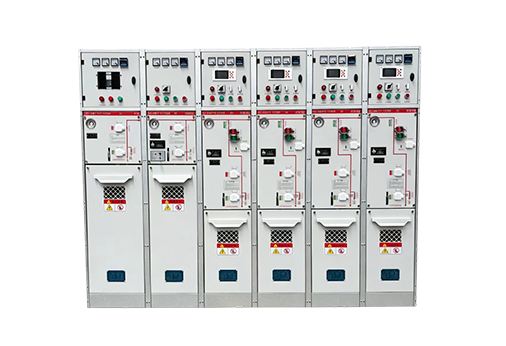

The SRM16-12 Inflatable Switch Cabinet T Series is a compact 12kV gas insulated switchgear product developed for medium voltage power networks. It combines sealed gas insulation technology, metal enclosed structure, and flexible switching functions to provide a safer and more efficient solution for power distribution applications.

From industrial factories and commercial buildings to renewable energy projects and urban power networks, we provide equipment that helps customers improve power reliability while reducing maintenance requirements. Our products are manufactured under strict quality management systems including ISO9001, ISO14001, and ISO45001 standards.

As a professional manufacturer of Medium Voltage Electrical Equipment, we supply a complete range of products including ring main units, Cable distribution boxes, Prefabricated Substations, transformers, SF6 load switches, and Vacuum circuit breakers. We combine engineering experience, manufacturing capability, and customer-focused service to support different project requirements.

What Is SRM16-12 Inflatable Switch Cabinet T Series?

The SRM16-12 Inflatable Switch Cabinet T Series is a medium voltage gas insulated switch cabinet mainly used for power receiving, control, protection, and distribution. It is designed for 12kV electrical systems where safety, compact structure, and reliable operation are important.

Unlike traditional air insulated switchgear, this series adopts a sealed gas insulation structure. The main electrical components are installed inside a metal enclosure filled with insulating gas. This design helps reduce the influence of external factors such as dust, moisture, and temperature changes.

In practical applications, power distribution equipment often faces challenging environments. Industrial factories may contain dust and vibration, coastal areas may have high humidity and salt exposure, and urban projects often have limited installation space. The SRM16-12 series is developed to handle these conditions with stable electrical performance.

The cabinet can be configured according to different project needs, including load switch units, circuit breaker units, cable connection units, and protection modules. This flexibility allows engineers and contractors to select suitable solutions for different distribution networks.

How Does SRM16-12 Inflatable Switch Cabinet Work?

The working principle of the SRM16-12 Inflatable Switch Cabinet T Series is based on electrical switching control and gas insulation technology.

When medium voltage electricity enters the cabinet, the incoming unit receives electrical power from the upstream network. The switching device controls the connection and disconnection of the circuit according to operating requirements. During normal operation, electricity flows safely through the internal conductive system. When maintenance is required or an abnormal condition occurs, the switching mechanism disconnects the circuit to protect the power system.

The sealed gas chamber plays an important role in electrical insulation. The insulating gas creates a stable environment between electrical components and the metal enclosure, reducing the possibility of electrical failure caused by environmental conditions.

The basic operating process includes:

• Receiving medium voltage power through cable connection units.

• Controlling electrical circuits through switching devices.

• Protecting downstream equipment through protection components.

• Distributing electricity safely to different loads.

Because of its sealed structure, the SRM16-12 Gas Insulated Switchgear can maintain reliable operation with less influence from external conditions compared with many conventional solutions.

Main Features of SRM16-12 Inflatable Switch Cabinet T Series

Compact Design for Limited Installation Space

Space is becoming an important consideration in modern electrical projects. In cities, industrial parks, and renewable energy facilities, customers often need high-performance equipment within limited areas.

The compact structure of the SRM16-12 Inflatable Switch Cabinet helps reduce installation space while maintaining reliable medium voltage switching performance. This makes it suitable for indoor substations, compact distribution rooms, and projects where space efficiency matters.

Stable Gas Insulation Performance

The sealed insulation design provides protection against environmental changes. Compared with traditional open structures, the internal electrical components are less affected by dust, humidity, and external pollution.

This feature is especially useful for industrial environments, underground facilities, coastal regions, and locations where long-term stable operation is required.

High Safety Protection Level

Safety is one of the most important factors in medium voltage power systems. The SRM16-12 series uses a metal enclosed design to help protect operators and electrical components.

During operation, the cabinet provides reliable separation between high voltage components and external operating areas. The design helps reduce safety risks caused by accidental contact or electrical faults.

Flexible Configuration Options

Every power project has different requirements. Some customers need simple power switching functions, while others require complete protection and control systems.

Our SRM16-12 Inflatable Switch Cabinet T Series supports different configurations according to voltage level, application environment, installation conditions, and customer technical requirements.

This flexibility allows engineering companies, electrical contractors, and system integrators to develop suitable solutions for various medium voltage distribution projects.

Technical Advantages of SRM16-12 Gas Insulated Switchgear

When selecting medium voltage switchgear, customers usually compare equipment reliability, maintenance requirements, installation conditions, and operating cost. Based on years of manufacturing experience, we focus on these key factors during product development.

Source: Comparison based on general medium voltage switchgear engineering practices and product design characteristics from international electrical equipment manufacturers.

Reliable Performance for Modern Power Networks

Modern industries are becoming more dependent on continuous electricity supply. Manufacturing plants, data facilities, transportation systems, and renewable energy stations all require stable power distribution equipment.

A failure in medium voltage equipment can cause production delays, economic losses, and safety concerns. Therefore, choosing a reliable switch cabinet is an important decision for long-term project operation.

With the SRM16-12 Inflatable Switch Cabinet T Series, we focus on providing a practical balance between safety, performance, and cost efficiency. Our goal is not only to supply electrical equipment but also to support customers with dependable solutions throughout the project lifecycle.

Why SRM16-12 Inflatable Switch Cabinet Is Suitable for Global Projects

Different regions have different power requirements, environmental conditions, and installation standards. Our engineering team works closely with customers to understand project conditions and provide suitable product configurations.

Whether the application is an industrial power distribution system, renewable energy connection project, commercial building, or urban electrical network, the SRM16-12 series provides stable medium voltage switching performance.

Through continuous improvement in design, production, and inspection processes, we aim to deliver products that customers can trust for years of operation.

Wide Application Industries of SRM16-12 Inflatable Switch Cabinet T Series

During our years of manufacturing medium voltage power distribution equipment, we have seen that different industries have different requirements for electrical systems. Some projects focus on safety, some require compact installation, and others need stable operation under difficult environmental conditions.

The SRM16-12 Inflatable Switch Cabinet T Series is designed to meet these different application needs. With reliable insulation performance, compact structure, and flexible configuration, it can be used in many industries that require dependable medium voltage power distribution.

1. Industrial Manufacturing Facilities

Factories usually operate large numbers of motors, production lines, automation systems, and electrical equipment. Any unexpected power interruption may affect production schedules and increase operating costs.

Our 12kV gas insulated switchgear helps industrial users build a safer power distribution network. The sealed structure provides stable operation in environments where dust, vibration, and temperature changes may exist.

Typical applications include:

• Automotive manufacturing plants

• Electronic production facilities

• Machinery factories

• Steel processing plants

• Food and chemical production facilities

2. Renewable Energy Projects

The development of renewable energy has increased demand for reliable medium voltage equipment. Solar farms and wind power projects require stable electrical connection systems to transfer generated electricity into the power grid.

The SRM16-12 Inflatable Switch Cabinet T Series can be integrated into renewable energy distribution systems to provide switching, protection, and power control functions.

For renewable energy applications, equipment reliability is especially important because many projects are installed in outdoor or remote areas where maintenance access may not be convenient.

3. Urban Power Distribution Networks

As cities continue to grow, electrical infrastructure needs to become more compact and efficient. Traditional large electrical equipment may not always fit modern urban environments.

The compact design of the SRM16-12 series makes it suitable for urban substations, commercial buildings, underground distribution rooms, and public infrastructure projects.

4. Commercial Buildings and Infrastructure

Modern commercial facilities require stable electricity for lighting, elevators, security systems, HVAC equipment, and digital infrastructure.

Shopping centers, office buildings, airports, hospitals, and transportation facilities all require reliable medium voltage distribution equipment.

Our switch cabinet provides a safe and efficient solution for these applications.

5. Mining and Petrochemical Industries

Mining and petrochemical projects often operate in challenging environments. Electrical equipment must provide stable performance while handling demanding working conditions.

The sealed gas insulated design helps improve equipment reliability and reduces the influence of external environmental factors.

Application Comparison of SRM16-12 Switch Cabinet in Different Industries

Source: Application summary based on common medium voltage power distribution engineering requirements and industrial project practices.

Manufacturing Process of SRM16-12 Inflatable Switch Cabinet T Series

At Jihui Electric Group Co., Ltd., we believe that product quality starts from every manufacturing step. A reliable switch cabinet is not only determined by the final inspection result but also by careful control during design, material selection, production, and testing.

1. Engineering Design and Technical Confirmation

Before production begins, our engineering team reviews customer requirements including voltage level, application environment, installation method, and protection requirements.

We provide suitable product configurations according to project conditions. This helps ensure that the final equipment matches the customer's actual operating needs.

2. High Quality Material Selection

The cabinet body, electrical components, insulation materials, and connection parts are selected according to product performance requirements.

Material quality directly affects equipment reliability. Therefore, we carefully control incoming materials and production standards to ensure consistency between different batches.

3. Precision Cabinet Manufacturing

The metal enclosure is manufactured using professional processing equipment. Accurate manufacturing helps ensure proper installation of internal components and improves overall mechanical strength.

During production, our technicians follow standardized procedures to control dimensions, assembly accuracy, and structural quality.

4. Electrical Assembly and Functional Testing

After mechanical production, electrical components are assembled according to technical drawings. Each unit is checked carefully before leaving the factory.

Testing procedures may include:

• Insulation performance testing

• Electrical operation testing

• Mechanical operation checking

• Protection function verification

• Appearance and assembly inspection

5. Final Inspection Before Delivery

Before shipment, every SRM16-12 Inflatable Switch Cabinet T Series completes factory inspection. We check product performance, documentation, packaging condition, and customer-specific requirements.

This process helps ensure that customers receive equipment ready for installation and operation.

Quality Control and Testing Standards

Power distribution equipment must operate safely for many years, so quality control is a critical part of our production system.

Our factory follows internationally recognized management systems including:

• ISO9001 Quality Management System

• ISO14001 Environmental Management System

• ISO45001 Occupational Health and Safety Management System

These systems guide our production processes, supplier management, inspection procedures, and continuous improvement activities.

Source: Based on Jihui Electric internal manufacturing procedures and quality management practices.

Why Choose Jihui Electric for SRM16-12 Inflatable Switch Cabinet?

Choosing a power equipment supplier means choosing a long-term partner. At Jihui Electric, we do not only manufacture products; we provide complete support from technical communication to after-sales service.

Professional Manufacturing Experience

We specialize in medium and low voltage power transmission and distribution equipment up to 35kV. Our product range covers Cable accessories, ring main units, switchgear, transformers, and complete distribution solutions.

Complete Product Solutions

Customers can purchase different power distribution products from one experienced manufacturer. This helps simplify project communication and improve supply efficiency.

Customization Capability

Different projects require different technical solutions. We support customized designs according to customer specifications, installation environment, and system requirements.

Reliable Export Service

We support international customers with professional packaging, transportation arrangements, technical documents, and communication support.

For overseas projects, products can be delivered through suitable transportation methods including sea transportation, land transportation, or combined logistics solutions.

Frequently Asked Questions About SRM16-12 Inflatable Switch Cabinet T Series

Q1: What is the rated voltage of SRM16-12 Inflatable Switch Cabinet?

The SRM16-12 series is designed for 12kV medium voltage power distribution applications. It is commonly used in medium voltage networks requiring safe switching and reliable electrical protection.

Q2: What industries can use SRM16-12 gas insulated switchgear?

The product can be used in industrial manufacturing, renewable energy, commercial buildings, urban power networks, mining, petrochemical facilities, and infrastructure projects.

Q3: What are the advantages of gas insulated switchgear compared with traditional switchgear?

Gas insulated switchgear provides a more compact structure and better protection against environmental influence. It is suitable for projects where installation space and operational reliability are important.

Q4: Can Jihui Electric provide customized solutions?

Yes. We provide customized solutions according to customer requirements, including technical specifications, configuration selection, and project conditions.

Q5: How does Jihui Electric ensure product quality?

We control quality through standardized manufacturing processes, strict inspections, and certified management systems including ISO9001, ISO14001, and ISO45001.

Conclusion: A Practical Medium Voltage Switchgear Solution for Modern Power Systems

The SRM16-12 Inflatable Switch Cabinet T Series is designed for customers who need safe, compact, and reliable medium voltage power distribution equipment.

With gas insulation technology, flexible configuration, professional manufacturing processes, and strong quality control, it provides a dependable solution for industrial, commercial, renewable energy, and infrastructure applications.

At Jihui Electric Group Co., Ltd., we continue to improve our products and services to help customers build safer and more efficient power systems. We welcome global partners, engineering companies, and project owners to contact us for SRM16-12 Inflatable Switch Cabinet solutions.
