At Jihui Electric Group Co., Ltd., we focus on providing safe, stable, and efficient power distribution solutions for customers around the world. As a professional manufacturer of medium and low voltage electrical equipment up to 35kV, we design and produce a wide range of products, including outdoor prefabricated substations, ring main units, Cable distribution boxes, combination transformers, SF6 load switches, and Vacuum circuit breakers.

Our Outdoor prefabricated substation (European style) is developed for modern power distribution systems that require compact structure, reliable operation, easy installation, and long service life. By integrating transformers, medium voltage switchgear, and low voltage distribution equipment into one complete unit, this solution helps customers reduce installation time and improve project efficiency.

From urban power networks to renewable energy projects, industrial plants, commercial buildings, and infrastructure construction, our European Style Prefabricated Substations provide flexible power solutions for different application environments.

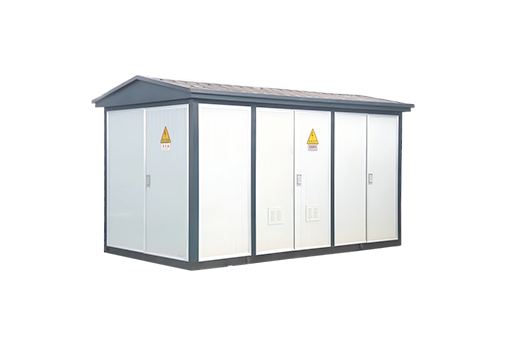

What Is an Outdoor Prefabricated Substation (European Style)?

An outdoor prefabricated substation (European style) is a complete electrical power distribution unit that combines a transformer, medium voltage switchgear, low voltage switchgear, and related protection devices inside a prefabricated enclosure.

Unlike traditional substations that require customers to build separate rooms and install equipment step by step, our prefabricated substation is manufactured, assembled, and tested in our factory before delivery. After arriving at the project site, customers only need to complete basic installation and cable connection.

This design saves construction time, reduces engineering costs, and improves the overall reliability of the power distribution system.

The European style design focuses on safety, appearance, environmental adaptability, and convenient maintenance. The compact enclosure structure allows the equipment to be installed in areas where space is limited while maintaining excellent electrical performance.

How Does Our European Style Prefabricated Substation Work?

The working process of our outdoor prefabricated substation is simple. The medium voltage power source first enters the substation through the medium voltage switchgear. The switchgear controls and protects the incoming power supply.

The transformer inside the substation then reduces the voltage to a suitable level required by end users. After voltage conversion, the low voltage switchgear distributes electricity to different loads, such as factories, buildings, charging stations, and other electrical equipment.

Source: Technical principles based on common medium voltage distribution system design practices and IEC electrical equipment standards.

Main Features of Our Outdoor Prefabricated Substation

1. Compact Integrated Structure

Our European style prefabricated substation adopts an integrated design. The transformer, MV switchgear, LV switchgear, protection system, and control components are installed together in one complete unit.

This structure reduces the need for additional construction work and makes the installation process faster. For projects with limited space, this compact design provides a practical solution.

2. Stable and Safe Power Operation

Power equipment must operate safely for many years under different environmental conditions. We use reliable electrical components and strict production processes to ensure stable performance.

The enclosure provides protection against dust, moisture, and external impact. Depending on customer requirements, different protection levels and materials can be selected for various outdoor environments.

3. Flexible Configuration Options

Every power project has different requirements. We provide customized solutions according to voltage level, capacity, installation environment, and customer technical specifications.

Our outdoor prefabricated substation can be configured with different transformer capacities, switchgear combinations, protection systems, and cable connection methods.

4. Easy Transportation and Installation

Because most assembly work is completed inside our factory, customers can reduce onsite installation tasks. This is especially helpful for projects with strict construction schedules.

We provide professional packaging and transportation solutions according to equipment size and destination. Before shipment, every unit completes inspection and performance testing.

Technical Advantages of Our Outdoor Prefabricated Substation

At Jihui Electric, we believe that reliable power equipment comes from good design, careful manufacturing, and strict quality control. Our European style prefabricated substations are designed with practical advantages for long-term operation.

Source: Comparison based on general engineering experience in prefabricated power distribution equipment applications.

High Electrical Safety Performance

Safety is always one of our main concerns. Our products are designed with insulation performance, mechanical strength, and electrical protection in mind.

The medium voltage section can be equipped with reliable switching and protection devices, helping reduce risks caused by overload, short circuits, and abnormal operating conditions.

Energy Efficient Power Solution

Modern power systems need not only safety but also energy efficiency. Our prefabricated substations use optimized designs to reduce energy loss and improve power utilization.

For renewable energy projects, industrial facilities, and smart power networks, efficient power distribution equipment helps customers achieve better operating performance.

Designed for Outdoor Environments

Outdoor electrical equipment needs to handle different weather conditions. Our outdoor prefabricated substations are designed for reliable operation in various environments, including industrial areas, urban spaces, and renewable energy sites.

The enclosure structure helps protect internal components from rain, dust, and temperature changes, supporting stable operation throughout the equipment life cycle.

Application Value in Modern Power Networks

With the growth of renewable energy, electric vehicles, industrial automation, and urban infrastructure, the demand for compact and reliable power distribution equipment continues to increase.

Our European Type Prefabricated Substation provides customers with a complete solution that connects power sources and end-use equipment efficiently.

Application Industries of Outdoor Prefabricated Substation (European Style)

Our Outdoor Prefabricated Substation (European Style) is widely used in different industries where stable and reliable electricity supply is important. Because of its compact structure, flexible configuration, and easy installation, it can meet the needs of various power distribution projects.

1. Renewable Energy Projects

The renewable energy industry is developing quickly, and solar power plants, wind farms, and energy storage systems require reliable electrical equipment to connect generated power to the grid.

Our European style prefabricated substation provides an efficient connection solution between renewable energy systems and medium voltage networks. The integrated design reduces installation work at the project site and helps improve project construction efficiency.

2. Industrial Manufacturing Plants

Factories usually require continuous and stable power supply for production equipment, automation systems, and manufacturing lines. Any unexpected power interruption may affect production efficiency and increase operating costs.

Our outdoor prefabricated substation helps industrial customers build reliable power distribution systems. It can be customized according to factory capacity requirements, voltage levels, and installation conditions.

3. Commercial Buildings and Urban Infrastructure

Modern cities need compact power distribution solutions for shopping centers, office buildings, residential communities, transportation facilities, and public infrastructure.

Compared with traditional substations, European style prefabricated substations require less construction space and can be installed faster, making them suitable for urban development projects where land resources are limited.

4. Rail Transit and Transportation Systems

Railways, metro systems, and transportation facilities require highly reliable electrical systems to support daily operation.

Our prefabricated substations provide stable power conversion and distribution solutions for transportation projects, helping ensure continuous and safe operation.

5. Mining and Petrochemical Industries

Mining sites and petrochemical plants often operate in complex environments where electrical equipment needs strong protection and reliable performance.

With suitable enclosure design and customized protection solutions, our outdoor prefabricated substations can support demanding industrial applications.

Manufacturing Process of Our European Style Prefabricated Substation

At Jihui Electric, we understand that power equipment quality depends on every production step. From raw material selection to final testing, we follow strict manufacturing procedures to ensure every prefabricated substation meets customer requirements.

Step 1: Technical Design and Project Confirmation

Before production begins, our engineering team communicates with customers to understand project requirements, including voltage level, transformer capacity, installation environment, protection requirements, and application conditions.

Based on these details, we provide a suitable outdoor prefabricated substation design solution.

Step 2: Material Selection and Component Preparation

We carefully select electrical components and structural materials according to product standards and customer specifications.

Main components may include:

• Medium voltage switchgear

• Distribution transformer

• Low voltage switchgear

• Protection devices

• Cable connection components

• Prefabricated enclosure structure

Step 3: Assembly and Electrical Integration

Our technicians assemble the internal electrical system according to approved drawings. Each component is installed in the correct position to ensure safe operation and convenient maintenance.

The integrated factory assembly method helps reduce installation errors compared with traditional onsite construction.

Step 4: Testing and Quality Inspection

Before shipment, every prefabricated substation completes necessary inspections and performance tests.

Source: Based on Jihui Electric internal quality management procedures and common electrical equipment inspection requirements.

Why Choose Jihui Electric Outdoor Prefabricated Substation?

Choosing a power equipment supplier is not only about purchasing a product. It is about finding a partner who understands project requirements and can provide reliable support throughout the entire process.

Professional Medium and Low Voltage Equipment Manufacturer

Jihui Electric Group Co., Ltd. specializes in the research, development, manufacturing, sales, and service of medium and low voltage power transmission and distribution equipment up to 35kV.

Our product range covers Cable accessories, cable distribution boxes, ring main units, prefabricated substations, combination transformers, SF6 load switches, and vacuum circuit breakers.

Strict Quality Management System

Quality control is an important part of our production philosophy. We operate according to internationally recognized management systems, including:

• ISO9001 Quality Management System Certification

• ISO14001 Environmental Management System Certification

• ISO45001 Occupational Health and Safety Management System Certification

These systems help us maintain stable product quality, improve production efficiency, and provide safer working processes.

Customized Solutions for Global Customers

Different countries and projects have different electrical standards and application requirements. We provide customized outdoor prefabricated substation solutions according to customer needs.

Whether customers need standard products or special configurations, our engineering team can provide technical support from design confirmation to final delivery.

Complete Export Service Capability

For international projects, we provide professional export support, including technical communication, product inspection, packaging protection, transportation arrangement, and after-sales service.

According to product specifications and destination requirements, we select suitable transportation methods such as sea transportation, land transportation, or combined logistics solutions.

Outdoor Prefabricated Substation Technical Reference

Source: Product specifications are based on Jihui Electric standard product design range. Final parameters depend on customer technical requirements.

Frequently Asked Questions About Outdoor Prefabricated Substation (European Style)

Q1: What is the difference between a European style prefabricated substation and a traditional substation?

A European style prefabricated substation integrates major electrical equipment inside a factory-made enclosure. Traditional substations usually require more onsite construction work. The prefabricated design can reduce installation time and improve project efficiency.

Q2: What voltage range can your outdoor prefabricated substation support?

Our products are designed for medium and low voltage power distribution applications up to 35kV. The final voltage configuration depends on customer project requirements.

Q3: Can the prefabricated substation be customized?

Yes. We can customize transformer capacity, switchgear configuration, enclosure design, cable connection method, and other technical details according to project requirements.

Q4: Where can outdoor prefabricated substations be installed?

They can be installed in many environments, including industrial plants, renewable energy projects, commercial buildings, urban infrastructure, mining areas, and transportation systems.

Q5: How do you ensure product quality before delivery?

Each unit completes factory inspection, electrical testing, and performance verification before shipment. We also provide professional packaging to protect equipment during transportation.

Contact Jihui Electric for Your Power Distribution Solution

Reliable electricity starts with reliable equipment. At Jihui Electric, we combine professional manufacturing experience, strict quality control, and flexible engineering support to provide dependable power distribution solutions for customers worldwide.

Our Outdoor Prefabricated Substation (European Style) is designed to help customers achieve safer, smarter, and more efficient power distribution systems.

Whether you are an electrical contractor, power utility company, renewable energy developer, industrial manufacturer, or equipment integrator, our team is ready to support your project with suitable technical solutions and professional service.

Contact Jihui Electric today to discuss your outdoor prefabricated substation requirements and build a reliable power future together.
