I. Overview:
The intelligent switchgear (outdoor ring main unit) adopts and draws on advanced technology from abroad, installing and debugging 12/24kV switchgear, circuit breakers, load switches, current and voltage transformers, 12/24kV power supply PT, switchgear FTU, RTU, communication control terminal (CCU), 12/24kV i metering and automatic meter reading, USP power supply and indicator instruments into a movable, sealed and moisture-proof stainless steel box, thus achieving the integration and modular assembly of primary and secondary systems in urban distribution networks, shortening the construction period, and greatly improving the reliability of urban power grid operation.
II. Compliant with standards:
IEC 420 "Combination of High Voltage AC Load Switches and Fuses"
IEC 298 "AC metal enclosed switchgear and control gear for voltages above 1kV and below 52kV"
III. Usage environment
--Altitude: ≤ 1000m;
--Maximum ambient temperature:+40 ° C;
--Minimum ambient temperature: -25 ° C;
--Maximum daily temperature difference: 25K;
--Indoor relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
--Seismic resistance: Ground horizontal acceleration of 0.2g and vertical acceleration of 0.1g acting simultaneously. Adopting resonance, sine, and beat wave test methods; Excite 5 times, 5 waves each time, with an interval of 2 seconds between each time, and the safety factor shall not be less than 1.67;
--The installation site should be free of gas vapor, chemical deposits, dust, pollution, and other explosive and corrosive media that seriously affect the insulation of the load switch;
--Used in ungrounded systems and 10kV systems grounded through low resistance or arc suppression coils.
| Model | Size |
| JH XGW-12 (24) | Customization |

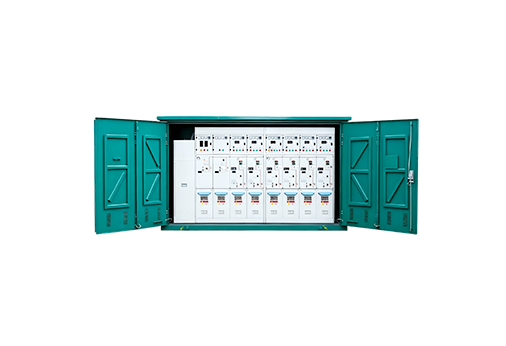

JH XGW-12 (24) Outdoor Intelligent Switching Station for Smart Medium Voltage Power Distribution
At Jihui Electric Group Co., Ltd., we focus on developing reliable medium and low voltage power transmission and distribution equipment for modern electrical systems. With years of experience in the power industry, we understand that today’s power networks need more than basic switching equipment. They require safer operation, faster fault response, intelligent control, and better energy management.
Our JH XGW-12 (24) Outdoor Intelligent Switching Station is designed to meet these needs. It combines traditional switching functions with intelligent monitoring and control technology, providing an efficient solution for 12kV and 24kV medium voltage power distribution networks.
As cities expand and renewable energy projects continue to grow, power distribution systems are becoming more complex. Operators need equipment that can work reliably in outdoor environments while supporting automation and remote management. Our intelligent switching station helps customers build smarter and more stable power networks.
Located in Yueqing Economic Development Zone, China, Jihui Electric Group is a high-tech enterprise specializing in research and development, manufacturing, sales, and service of power transmission and distribution products up to 35kV. Our product range includes Cable accessories, Cable distribution boxes, ring main units, Prefabricated Substations, combination transformers, SF6 load switches, and Vacuum circuit breakers.
We have obtained ISO9001 quality management certification, ISO14001 environmental management certification, and ISO45001 occupational health and safety certification. These systems guide our production process and help us provide stable and reliable products for customers worldwide.
Through continuous improvement and practical engineering experience, we provide customers with professional electrical solutions for power utilities, renewable energy companies, industrial users, infrastructure developers, and engineering contractors.
The JH XGW-12 (24) Outdoor Intelligent Switching Station is a medium voltage outdoor switching device designed for intelligent power distribution networks. It is mainly used for electrical switching, cable connection, power distribution control, and network protection in 12kV and 24kV systems.
Compared with traditional switching equipment, an intelligent switching station provides additional monitoring and communication functions. It allows operators to understand equipment status more quickly and manage power networks more efficiently.
The equipment usually integrates switching units, control systems, protection devices, communication interfaces, and outdoor protection structures. Through intelligent control technology, it can support automated operation and improve the reliability of power supply.
Power Switching: Controls the connection and disconnection of medium voltage circuits according to operation requirements.
Power Distribution: Provides reliable distribution points for medium voltage cable networks.
Remote Monitoring: Supports intelligent management through communication systems.
Fault Detection: Helps identify abnormal conditions and improve response speed.
Network Optimization: Supports smarter operation of modern power grids.
The working principle of the 12kV 24kV Intelligent Switching Station is based on coordinated operation between electrical switching components and intelligent control systems.
When electricity enters the switching station through incoming cables, internal switching devices control the power flow and distribute electricity to different outgoing circuits. The control system continuously collects operating information and transfers data through communication interfaces.
When a fault occurs in the network, the intelligent system can help operators quickly identify the affected area and take suitable actions. This reduces unnecessary power interruptions and improves maintenance efficiency.
Step 1: Power Input
Medium voltage electricity enters the switching station through cable connection terminals.
Step 2: Signal Collection
Sensors and monitoring components collect equipment operation information.
Step 3: Intelligent Control
The control system analyzes data and manages switching operations.
Step 4: Power Distribution
Electricity is delivered to different power supply circuits safely.
Step 5: Remote Management
Operators can monitor system status and improve operation efficiency.
One of the biggest advantages of our Outdoor Intelligent Switching Station is its intelligent management capability. Traditional equipment mainly performs switching operations, while intelligent switching stations provide additional information and control functions.
Through monitoring systems, operators can check equipment conditions, analyze operating information, and improve power network management.
Power distribution equipment must operate safely under different working conditions. Our JH XGW-12 (24) switching station uses reliable electrical structures and professional design methods to ensure stable operation.
The equipment provides dependable switching performance for medium voltage systems and helps maintain continuous power supply.
Outdoor electrical equipment faces many environmental challenges, including rain, dust, temperature changes, and humidity.
Our intelligent switching station is designed with a protective enclosure structure to improve environmental resistance and service reliability.
Space availability is an important factor in many power projects. The compact structure of the JH XGW-12 (24) Outdoor Intelligent Switching Station makes installation easier, especially in urban areas where space is limited.
The integrated design reduces the need for additional equipment and helps simplify project construction.
Different customers have different requirements. Some projects focus on automation, while others require specific cable arrangements or communication solutions.
At Jihui Electric, we provide flexible configurations according to project requirements, application environments, and technical standards.
Modern power systems are moving toward digital management and intelligent operation. Equipment that can provide reliable switching and useful operating information has become increasingly important.
Our Smart Medium Voltage Switching Station combines electrical reliability with intelligent technology, helping customers improve power system safety and efficiency.
| Comparison Item | Traditional Outdoor Switchgear | JH XGW-12 (24) Outdoor Intelligent Switching Station |
|---|---|---|
| Operation Method | Mainly manual operation | Supports intelligent control and monitoring |
| Fault Management | Requires more manual inspection | Provides faster condition information |
| Network Management | Limited data collection capability | Supports smart grid operation |
| Application Flexibility | Suitable for basic switching needs | Suitable for modern automated distribution networks |
| Maintenance Efficiency | Higher dependence on field inspection | Improves maintenance planning |
Source: Comparison based on Jihui Electric engineering experience, medium voltage distribution applications, and smart grid equipment development practices.
At Jihui Electric, we believe product reliability starts from the manufacturing process. Every JH XGW-12 (24) Outdoor Intelligent Switching Station follows strict production procedures before delivery.
Our engineers review technical requirements carefully before manufacturing. We consider voltage level, installation environment, communication requirements, and customer application conditions.
Our technical team develops suitable designs according to customer requirements. We focus on electrical safety, mechanical strength, and practical operation.
We carefully inspect important components before production. High-quality materials help improve product reliability and service life.
Professional technicians assemble equipment according to standardized procedures. Each electrical connection, control component, and mechanical part is carefully installed.
Before shipment, every intelligent switching station undergoes inspection and testing. We verify electrical performance, control functions, structural quality, and packaging conditions.
| Production Stage | Inspection Focus | Quality Purpose |
|---|---|---|
| Material Preparation | Component quality verification | Ensure reliable raw materials |
| Equipment Assembly | Electrical and mechanical installation | Maintain product stability |
| Functional Testing | Switching and control performance | Confirm safe operation |
| Final Inspection | Appearance and delivery check | Ensure customer satisfaction |
Source: Data based on Jihui Electric internal manufacturing standards and quality management procedures.
The development of smart grids and modern energy systems has created higher requirements for power distribution equipment. Customers today need equipment that can provide reliable electrical performance while also supporting intelligent management. Our JH XGW-12 (24) Outdoor Intelligent Switching Station is designed for these modern power applications.
With stable switching performance, intelligent monitoring capability, and outdoor protection features, this equipment is widely used in different industries where continuous and safe power supply is important.
Power utilities are continuously upgrading traditional networks into smarter distribution systems. Reliable switching equipment plays an important role in improving network flexibility and reducing power interruption time.
Our 12kV 24kV Intelligent Switching Station can be installed in urban distribution networks, underground cable systems, and regional power supply projects. It helps operators manage different power circuits more efficiently.
By combining switching functions with intelligent monitoring technology, the equipment supports better network operation and maintenance planning.
Solar power plants and wind energy projects require reliable medium voltage equipment to collect and transmit generated electricity. Because renewable energy sites are often located in outdoor environments, equipment reliability is extremely important.
The JH XGW-12 (24) Outdoor Intelligent Switching Station provides a dependable connection point between renewable energy generation systems and power networks.
Its intelligent functions allow project operators to monitor equipment conditions and improve energy management efficiency.
Industrial factories depend on stable electricity to maintain production. A short power interruption may affect manufacturing processes and increase operating costs.
Our Outdoor Intelligent Switching Station for Medium Voltage Networks provides reliable power distribution support for industries such as machinery manufacturing, chemical production, mining, and large processing facilities.
The equipment helps industrial users create safer electrical systems with improved control and monitoring capabilities.
Shopping centers, hospitals, office buildings, airports, and public facilities require reliable electricity every day. Modern cities also face challenges such as limited installation space and increasing energy demand.
The compact structure of JH XGW-12 (24) switching station makes it suitable for urban applications. It provides efficient medium voltage distribution while reducing installation complexity.
Railways, tunnels, airports, and transportation infrastructure require highly reliable power systems because electrical failures can affect public operation.
Our intelligent switching station supports stable power supply and helps improve electrical management in transportation projects.
At Jihui Electric, we understand that high-quality electrical equipment requires careful manufacturing from the beginning to the final delivery. Our production process focuses on safety, reliability, and long-term operation.
Before manufacturing, our engineering team studies project requirements carefully. We analyze voltage level, installation environment, cable arrangement, communication requirements, and customer standards.
This step helps us provide suitable solutions for different applications.
The performance of electrical equipment depends greatly on the quality of materials. We select suitable materials for the enclosure, electrical components, insulation parts, and mechanical structures.
Before assembly, important components are inspected to ensure they meet production requirements.
The intelligent functions of the switching station require accurate integration between electrical components and control systems.
Our technicians carefully install monitoring devices, communication interfaces, and control units according to technical specifications.
During production, every assembly step follows standardized procedures. We focus on connection accuracy, mechanical strength, insulation distance, and system reliability.
This careful manufacturing approach helps ensure stable operation after installation.
Before delivery, each product completes factory testing. We check electrical performance, switching operation, intelligent control functions, appearance quality, and packaging condition.
Only qualified products are shipped to customers.
| Evaluation Factor | Traditional Switching Equipment | JH XGW-12 (24) Outdoor Intelligent Switching Station |
|---|---|---|
| Control Method | Mainly local manual operation | Supports intelligent and remote management |
| Data Monitoring | Limited operating information | Provides intelligent condition monitoring |
| Grid Application | Suitable for conventional networks | Designed for smart grid development |
| Fault Response | Requires manual inspection | Helps improve fault identification efficiency |
| Future Expansion | Limited upgrade flexibility | Supports modern power system upgrades |
Source: Data based on Jihui Electric engineering experience, intelligent power distribution applications, and medium voltage system design practices.
Selecting a power equipment supplier is not only about buying a product. It is about choosing a partner who can provide stable manufacturing, technical support, and reliable service throughout the project.
At Jihui Electric, we focus on delivering practical electrical solutions that meet real customer needs.
Jihui Electric has extensive experience in medium and low voltage power transmission and distribution equipment. Our product portfolio covers cable accessories, cable distribution boxes, ring main units, substations, transformers, load switches, and circuit breakers.
This experience allows us to understand complete electrical systems and provide suitable solutions for different industries.
Our manufacturing management follows international standards, including:
ISO9001 Quality Management System
ISO14001 Environmental Management System
ISO45001 Occupational Health and Safety Management System
These certifications support our commitment to consistent quality, environmental responsibility, and safe production.
Every project has different requirements. Some customers need specific communication functions, while others require customized structures or installation methods.
Our engineering team provides customized solutions according to project conditions and technical requirements.
We support international customers with complete export services. Depending on product specifications and destination, we arrange suitable transportation methods including sea shipping, land transportation, and combined logistics.
Before shipment, products receive professional packaging protection to prevent moisture, vibration, and transportation damage.
| Application Scenario | Recommended Solution | Main Advantage |
|---|---|---|
| Urban power distribution | JH XGW-12 (24) Outdoor Intelligent Switching Station | Compact design and intelligent management |
| Renewable energy projects | 12kV/24kV Smart Switching Equipment | Reliable outdoor operation |
| Industrial factories | Intelligent Medium Voltage Distribution System | Stable power supply and monitoring |
| Infrastructure projects | Customized Switching Station Solution | Flexible project integration |
Source: Recommendations based on Jihui Electric project experience and common medium voltage power distribution requirements.
The main purpose is to provide intelligent switching, monitoring, and power distribution functions for 12kV and 24kV medium voltage networks.
It is suitable for power grids, renewable energy projects, industrial facilities, commercial buildings, transportation systems, and urban infrastructure projects.
Yes. The intelligent monitoring and communication functions make it suitable for modern smart grid development and automated distribution management.
Yes. We provide customized designs according to customer requirements, including electrical configuration, communication functions, and installation conditions.
We control quality through material inspection, standardized production, intelligent system testing, final inspection, and professional packaging.
At Jihui Electric Group Co., Ltd., we are committed to providing reliable and intelligent power distribution equipment for customers around the world. The JH XGW-12 (24) Outdoor Intelligent Switching Station represents our focus on safety, efficiency, and modern electrical technology.
With professional manufacturing experience, strict quality control, and customized engineering support, we help customers build stronger and smarter power networks.
Whether your project involves urban power systems, renewable energy development, industrial applications, or infrastructure construction, our Intelligent Medium Voltage Switching Station provides a reliable solution for your electrical needs.
Choose Jihui Electric as your trusted partner for outdoor intelligent switching equipment. We are ready to support your project with professional products, technical service, and dependable delivery.
