I. Overview
This product is widely used for cable tapping in 10kV power systems. Its connection method is simple, flexible, convenient, safe and reliable. The cabinet is made of stainless steel plate, which is sturdy and durable. The live part is a fully insulated and fully sealed structure. If anti drying and touchable cable heads are used, they can also withstand flood invasion, greatly improving power supply reliability. This product is widely used in urban industrial communities, residential areas, and renovation projects, which can greatly save electrical equipment and cable investment and improve power supply reliability.
II. Product Structure Features
This product adopts a high-performance sulfur hexafluoride load switch with SF6 insulation gas and a touchable shielded imported synthetic rubber cable joint. It has strong breaking ability for active load and no-load cable current, as well as short-circuit current closing ability. It can also be equipped with lightning arrester and grounding fault indicator according to user requirements.
Each ring network cable in this series of products is equipped with a load switch or Vacuum circuit breaker. Any branch circuit can be freely withdrawn and put into operation, and other ring network circuits are not affected. Fuses can also be attached to the load switch. When a short circuit fault occurs in a branch circuit, the fuse on the branch circuit can quickly disconnect the faulty circuit and strike the release of the load switch to open it, isolating the faulty circuit and ensuring the continuity of power supply for non faulty branch circuits.
| Model | Size |
| DFW-SF6 | Customization |
DFW-SF6 High Voltage Cable distribution box for Reliable 35kV Power Distribution Solutions
At Jihui Electric Group Co., Ltd., we design and manufacture reliable medium and low voltage power transmission and distribution equipment for modern electrical networks. Our DFW-SF6 High Voltage Cable Distribution Box is one of our key products developed for safe, stable, and efficient cable connection applications in power distribution systems up to 35kV.
With years of experience in electrical equipment manufacturing, we understand that every power project requires equipment that can operate safely under demanding conditions. Our SF6 high voltage cable distribution box combines advanced insulation technology, strong mechanical structure, and flexible configuration options to meet the needs of power companies, engineering contractors, industrial users, and renewable energy projects.
Located in Yueqing Economic Development Zone, China, we focus on research, manufacturing, quality control, and customer service. Our production systems follow ISO9001 quality management standards, ISO14001 environmental management requirements, and ISO45001 occupational health and safety practices. We provide complete power distribution solutions, including Cable accessories, ring main units, Prefabricated Substations, combination transformers, SF6 load switches, and Vacuum circuit breakers.

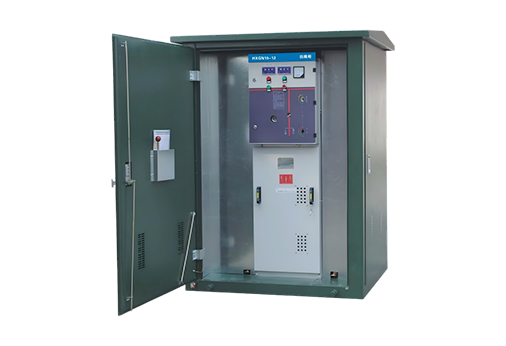

The DFW-SF6 High Voltage Cable Distribution Box is a compact electrical distribution device designed for medium and high voltage cable connection, branching, and control applications. It is mainly used in power distribution networks where safe cable management, reliable insulation, and long-term operation are required.
Unlike traditional cable distribution equipment, our SF6 Gas Insulated Cable Distribution Box uses SF6 gas as an insulation medium inside the sealed enclosure. This design helps reduce the influence of external conditions such as humidity, dust, pollution, and temperature changes. As a result, the equipment can maintain stable electrical performance even in complex outdoor environments.
Our DFW-SF6 cable distribution box is widely used in urban power grids, industrial plants, renewable energy facilities, commercial buildings, transportation infrastructure, and other projects requiring dependable medium voltage power distribution.
The working principle of our SF6 Gas Insulated Cable Distribution Box is based on the excellent insulation characteristics of sulfur hexafluoride gas. Inside the sealed metal enclosure, SF6 gas provides electrical insulation between conductive components, helping prevent unwanted electrical discharge and improving system safety.
When high voltage cables enter the distribution box, internal connection components safely distribute electrical energy to different outgoing circuits. Depending on project requirements, the equipment can be configured with cable connectors, grounding switches, load switches, and other protection components.
During normal operation, electrical current flows through the internal conductive path. When abnormal conditions occur, such as short circuits or maintenance requirements, protection devices can isolate the circuit to improve equipment safety and reduce downtime.
Step 1: Incoming high voltage cables connect with the internal cable terminals.
Step 2: Electrical energy is transferred through insulated conductive components.
Step 3: SF6 gas provides stable insulation protection inside the sealed chamber.
Step 4: Outgoing circuits distribute power safely to different loads or equipment.
Step 5: Protection devices help isolate faults and maintain network reliability.
This simple but reliable design allows our equipment to provide long service life with less maintenance compared with many traditional open-type distribution solutions.
The biggest advantage of our SF6 insulated cable distribution box is its reliable insulation performance. SF6 gas has strong dielectric strength, which allows the equipment to maintain stable operation in high voltage environments.
This insulation method also helps reduce the size of the equipment. Compared with conventional air-insulated solutions, our SF6 cable distribution box can achieve a more compact structure while maintaining excellent electrical safety.
Modern cities and industrial projects often face limited installation space. Our DFW-SF6 High Voltage Cable Distribution Box features a compact structure, making it suitable for locations where space efficiency is important.
The smaller footprint helps customers optimize equipment layout, reduce installation difficulty, and improve project flexibility. It is especially suitable for urban distribution networks and commercial areas with strict space requirements.
Power distribution equipment often works in outdoor environments where it faces rain, dust, temperature changes, and pollution. Our outdoor SF6 cable distribution box is designed with a sealed enclosure structure to improve environmental protection performance.
The enclosure design helps prevent moisture and external particles from affecting internal electrical components. This allows the equipment to maintain reliable operation in different climate conditions.
Every power project has different technical requirements. We provide flexible product configurations according to customer specifications, including cable connection methods, rated voltage levels, switching requirements, and installation conditions.
Whether the project is a new power network installation or an upgrade of an existing system, we can provide suitable medium voltage cable distribution solutions.
Safety is always one of our main design goals. Our DFW-SF6 High Voltage Cable Distribution Box is developed with practical maintenance considerations. Clear internal structures and reliable protection components help engineers complete inspection and service work more efficiently.
By improving operational safety and reducing unexpected failures, our equipment helps customers achieve more stable power supply performance.
Based on our manufacturing experience and customer application feedback, SF6 insulated cable distribution equipment provides several advantages compared with traditional air-insulated solutions.
| Comparison Item | Traditional Air Insulated Box | DFW-SF6 High Voltage Cable Distribution Box |
|---|---|---|
| Insulation Method | Air insulation | SF6 gas insulation |
| Environmental Protection | More affected by humidity and dust | Sealed structure with better environmental resistance |
| Installation Space | Requires larger installation area | Compact structure with space-saving design |
| Maintenance Requirement | Higher maintenance demand in harsh environments | Reduced maintenance frequency |
| Application Range | General distribution applications | Urban grids, industrial projects, renewable energy systems |
Source: Comparison based on IEC 62271 medium voltage switchgear design principles, industry application experience, and Jihui Electric product engineering data.
At Jihui Electric, we believe reliable electrical equipment starts with strict manufacturing control. From raw material selection to final testing, every production step is carefully managed.
We use professional production equipment and standardized manufacturing processes to ensure that every DFW-SF6 High Voltage Cable Distribution Box meets technical requirements before delivery. Our engineers inspect electrical performance, insulation quality, mechanical strength, and overall reliability during production.
Our goal is simple: provide customers with safe, durable, and efficient power distribution equipment that performs reliably throughout its service life.
At Jihui Electric, we develop our DFW-SF6 High Voltage Cable Distribution Box based on real project needs. Different industries have different requirements for power distribution equipment, but they all need the same basic qualities: safety, stability, long service life, and easy operation.
Our SF6 gas insulated cable distribution box is suitable for many power distribution scenarios, including urban electrical networks, industrial facilities, renewable energy projects, transportation systems, and large commercial buildings. With flexible design options, our equipment can adapt to different voltage levels, installation environments, and project conditions.
Power companies require reliable equipment to ensure continuous electricity supply for residential areas, commercial zones, and industrial customers. Our medium voltage cable distribution box provides safe cable connection and distribution functions for power grid construction and upgrading projects.
The sealed SF6 insulation structure helps improve system reliability in outdoor substations, underground distribution networks, and compact power stations. It reduces the impact of environmental factors and supports stable operation throughout the equipment life cycle.
With the rapid development of renewable energy, solar farms and wind power plants require dependable medium voltage equipment to connect generated electricity to the grid. Our 35kV High Voltage Distribution Equipment is widely used in renewable energy collection systems.
The DFW-SF6 High Voltage Cable Distribution Box helps renewable energy projects achieve safe power transmission between generation units, transformers, and grid connection points. Its compact design is especially suitable for remote areas where installation space and maintenance resources may be limited.
Factories, mining facilities, and chemical plants depend on stable electricity to maintain production efficiency. Any unexpected power interruption can cause production losses. Our SF6 insulated cable distribution box provides reliable power distribution for industrial environments.
From manufacturing workshops to large industrial parks, our equipment supports safe electrical connections and helps companies improve power system reliability.
Modern cities need compact and efficient power distribution solutions. Shopping centers, office buildings, hospitals, and residential communities often have limited installation space but require high-quality electrical infrastructure.
Our outdoor SF6 cable distribution box provides a practical solution for urban power distribution projects where safety, appearance, and space utilization are important considerations.
Rail transit systems and transportation facilities require stable power supply systems for daily operation. Our high voltage cable distribution equipment can be integrated into transportation power networks to support reliable electricity distribution.
Quality electrical equipment is not only about the final product. It depends on every step during design, manufacturing, assembly, and testing. At Jihui Electric, we follow strict production procedures to ensure each DFW-SF6 High Voltage Cable Distribution Box provides dependable performance.
Before production begins, our engineering team reviews customer requirements, including voltage rating, cable configuration, installation environment, and operating conditions. We use professional electrical design methods to create suitable product solutions.
For customized projects, we communicate closely with customers and engineering partners to ensure the final design matches actual application requirements.
We carefully select materials used in the enclosure, conductive components, insulation parts, and sealing structures. Materials must provide strong electrical performance, mechanical strength, and environmental resistance.
The combination of high-quality materials and professional processing technology helps our equipment achieve stable operation under demanding conditions.
During assembly, our technicians follow standardized procedures to install internal components, cable connection units, switching devices, and insulation structures.
Each assembly step is checked to ensure correct installation, reliable connection, and proper mechanical operation.
Before delivery, every unit undergoes inspection and testing. We check insulation performance, electrical connections, mechanical operation, and overall product quality.
These tests help ensure that our DFW-SF6 High Voltage Cable Distribution Box meets customer expectations and performs reliably after installation.
At Jihui Electric, quality control runs through the entire manufacturing process. We do not only focus on production speed; we focus on creating equipment that customers can trust for years.
| Quality Control Item | Testing Purpose | Quality Reference |
|---|---|---|
| Insulation Performance Test | Verify electrical insulation reliability | IEC 62271 related requirements |
| Mechanical Operation Test | Check switching and structural performance | Manufacturer inspection procedure |
| Sealing Inspection | Ensure enclosure protection and gas insulation stability | Factory quality control standard |
| Final Product Inspection | Confirm product safety before shipment | Jihui Electric quality management system |
Source: Data based on IEC medium voltage switchgear standards, Jihui Electric internal manufacturing procedures, and factory inspection requirements.
Choosing an electrical equipment supplier is not only about buying a product. It is about finding a long-term partner who understands your project requirements and can provide reliable support.
We specialize in medium and low voltage power transmission and distribution equipment up to 35kV. Our product range covers cable accessories, cable distribution boxes, ring main units, prefabricated substations, combination transformers, SF6 load switches, and vacuum circuit breakers.
With professional production capabilities and engineering experience, we can provide complete solutions for different power distribution projects.
Our company has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.
These certifications reflect our commitment to product quality, environmental responsibility, and safe manufacturing practices.
Every project has different technical requirements. We support customized solutions according to customer specifications, installation conditions, and application environments.
Whether you need standard products or special configurations, our engineering team can work with you to develop suitable power distribution solutions.
We provide professional pre-sales consultation, technical communication, production updates, delivery coordination, and after-sales support. Our international customers can receive complete service throughout the cooperation process.
We support international transportation by sea, land, or combined logistics methods. Products are professionally packed with moisture protection, shock protection, and collision protection to ensure safe delivery.
| Application Requirement | Recommended Solution | Main Advantage |
|---|---|---|
| Urban compact power networks | DFW-SF6 High Voltage Cable Distribution Box | Small footprint and reliable insulation |
| Industrial power distribution | SF6 insulated cable distribution system | Stable operation and strong protection |
| Renewable energy collection | 35kV cable distribution equipment | Suitable for complex outdoor environments |
| Infrastructure projects | Customized medium voltage solutions | Flexible design and project adaptation |
Source: Application recommendations are based on Jihui Electric engineering experience and common medium voltage distribution project requirements.
Our DFW-SF6 High Voltage Cable Distribution Box is designed for medium and high voltage power distribution applications up to 35kV. The exact voltage configuration depends on project requirements and customer specifications.
SF6 gas provides stronger insulation performance and helps create a compact sealed structure. This design improves protection against humidity, dust, and environmental changes, making the equipment suitable for more challenging operating conditions.
Yes. We provide customized solutions based on cable connection methods, installation environment, electrical requirements, and project specifications. Our engineering team works closely with customers to deliver suitable solutions.
Our products are used in power utilities, renewable energy, industrial manufacturing, railway transportation, urban construction, commercial buildings, mining, and petrochemical industries.
We perform production inspections and electrical performance tests before shipment. Each product is checked according to technical requirements and factory quality procedures to ensure safe delivery.
At Jihui Electric Group Co., Ltd., we are committed to providing safe, reliable, and efficient power distribution equipment for customers worldwide. Our DFW-SF6 High Voltage Cable Distribution Box represents our focus on quality manufacturing, practical engineering, and long-term customer value.
From product design and manufacturing to delivery and after-sales service, we work closely with customers to create dependable electrical solutions. If you are looking for a professional manufacturer of SF6 Gas Insulated Cable Distribution Box, 35kV High Voltage Distribution Equipment, or complete medium voltage power solutions, we are ready to support your project.
Contact Jihui Electric today to discuss your power distribution requirements and discover a reliable solution designed for your application.
