At Jihui Electric Group Co., Ltd., we specialize in the research, development, manufacturing, sales, and service of medium and low voltage power transmission and distribution equipment up to 35kV. Based in Yueqing Economic Development Zone, China, we provide reliable electrical solutions for power companies, engineering contractors, industrial enterprises, renewable energy projects, and infrastructure developers worldwide.

Our 12kV 630A SF6 Gas Insulated Load Break Switch is designed to meet the growing demand for safe, stable, and efficient medium voltage power distribution systems. As an important component of ring main units (RMU) and medium voltage switchgear, this SF6 gas insulated load break switch helps control electrical circuits, improve network reliability, and provide safer operation in various power applications.

Electricity systems today need equipment that can work continuously under different conditions. A small failure in a power network can affect production, business operations, and public services. That is why we focus on creating products that combine strong insulation performance, reliable switching ability, compact design, and long service life.

With ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification, we maintain strict control throughout design, production, testing, and delivery. Our goal is simple: provide customers with dependable power distribution equipment that they can trust.

1. Product Overview of 12kV 630A SF6 Gas Insulated Load Break Switch

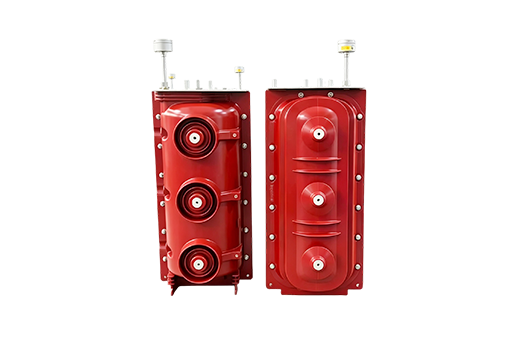

The 12kV 630A SF6 Gas Insulated Load Break Switch is a medium voltage switching device mainly used in electrical distribution networks. It is designed for switching load currents, isolating electrical sections, and improving the safety of medium voltage systems.

Unlike traditional air-insulated switching equipment, our SF6 gas insulated load break switch uses sulfur hexafluoride (SF6) gas as an insulation medium. This technology provides excellent electrical insulation performance and allows the switch to maintain stable operation in compact spaces.

The product is widely applied in:

• 12kV ring main unit systems

• Medium voltage distribution networks

• Industrial power supply systems

• Renewable energy projects

• Urban electrical infrastructure

• Commercial and public facilities

The rated current of 630A allows this load break switch to handle common medium voltage distribution requirements efficiently. It provides a practical solution for customers who need reliable circuit control without requiring large installation space.

2. How Does Our SF6 Gas Insulated Load Break Switch Work?

The working principle of our 12kV 630A SF6 Gas Insulated Load Break Switch is based on controlling the connection and disconnection of medium voltage electrical circuits.

During normal operation, the switch remains closed and allows electricity to flow through the power network. When maintenance is required or when a specific circuit section needs to be isolated, the switch can safely disconnect the electrical path.

SF6 gas plays an important role inside the switching chamber. It provides strong insulation and helps reduce electrical arc energy during switching operations. This improves safety and increases the service life of the switching components.

Main Working Steps:

• Normal Power Transmission: The switch allows current to pass through the medium voltage circuit during regular operation.

• Load Switching: The operator can open or close the circuit under rated load conditions.

• Electrical Isolation: The switch separates sections of the network for maintenance and inspection.

• System Protection: It helps reduce the impact of electrical faults and improves network stability.

For example, in a factory power distribution system, different production areas may receive power from the same medium voltage network. If one section needs maintenance, the SF6 load break switch can isolate that area while keeping other areas operating normally.

3. Main Features of 12kV 630A SF6 Gas Insulated Load Break Switch

At Jihui Electric, we understand that every electrical project has different requirements. Our SF6 gas insulated load break switch is designed with practical features that help customers build safer and more efficient power systems.

3.1 Excellent Insulation Performance

One of the biggest advantages of SF6 gas insulation technology is its excellent electrical insulation capability. The sealed gas chamber helps maintain stable performance even in environments with humidity, dust, and temperature changes.

This makes the 12kV SF6 Gas Insulated Load Break Switch suitable for both indoor and outdoor medium voltage applications where reliable insulation is required.

3.2 Reliable 630A Current Switching Capability

The 630A rated current design allows our load break switch to meet many medium voltage distribution requirements. It provides stable switching performance for ring main units, substations, and industrial electrical systems.

Reliable current control helps reduce unnecessary downtime and improves the overall efficiency of power distribution networks.

3.3 Compact Structure and Space Saving Design

Modern cities and industrial projects often have limited installation space. Traditional electrical equipment may require large areas, but compact SF6 insulated switchgear provides a more flexible solution.

Our 12kV 630A SF6 Gas Insulated Load Break Switch is designed for easy integration into compact RMU systems and Prefabricated Substations.

3.4 Safe Operation and Low Maintenance

Safety is always our first priority. The sealed insulation structure reduces the influence of external conditions and helps maintain stable internal performance.

Compared with some conventional switching equipment, SF6 insulated designs can reduce maintenance requirements because the internal components are protected from direct exposure to the surrounding environment.

3.5 Flexible Project Customization

Different customers may have different voltage systems, installation environments, and project standards. We provide customized solutions according to technical requirements.

Our engineering team can support customers with product selection, technical communication, production planning, and delivery arrangements.

4. Technical Advantages of Our 12kV Medium Voltage Load Break Switch

Choosing the right medium voltage equipment directly affects the safety and reliability of an electrical network. Our 12kV 630A SF6 Gas Insulated Load Break Switch is developed to provide stable performance for long-term operation.

Source: Comparison based on common medium voltage switchgear characteristics and Jihui Electric product design information.

4.1 Stable Performance in Complex Environments

Electrical equipment may face different working conditions, including temperature changes, humidity, dust, and long operation hours. Our SF6 insulated load break switch is designed to maintain reliable performance in these environments.

The sealed structure improves protection against external influences and supports stable operation in demanding applications.

4.2 Improved Power Distribution Reliability

A reliable power network needs equipment that can respond quickly and safely. Our 12kV load break switch helps operators manage electrical circuits more effectively.

By improving switching control and isolation capability, it supports better power supply continuity for industrial plants, commercial buildings, and infrastructure projects.

5. Manufacturing Quality Control at Jihui Electric

We believe product reliability starts from every manufacturing detail. At Jihui Electric, our production process covers material inspection, precision manufacturing, assembly, testing, and final quality verification.

Before delivery, each 12kV 630A SF6 Gas Insulated Load Break Switch completes strict factory inspection procedures. We check mechanical operation, electrical performance, insulation quality, and overall product condition.

Source: Manufacturing process information based on Jihui Electric internal quality management procedures and medium voltage equipment production standards.

6. Application Industries of 12kV 630A SF6 Gas Insulated Load Break Switch

At Jihui Electric, we design our 12kV 630A SF6 Gas Insulated Load Break Switch to support different types of medium voltage power distribution projects. From city power networks to industrial production lines, reliable switching equipment plays an important role in keeping electricity systems safe and stable.

Our customers include power companies, engineering contractors, electrical equipment integrators, renewable energy developers, and industrial enterprises. They choose our SF6 gas insulated load break switch because it offers stable performance, compact installation, and dependable operation in various working environments.

6.1 Power Grid and Utility Distribution Systems

Power utilities need electrical equipment that can operate continuously and safely. Distribution networks often cover large areas, and any unexpected failure may affect many users. Our 12kV medium voltage load break switch helps improve network flexibility by providing reliable switching and isolation functions.

It is suitable for urban distribution systems, secondary substations, and ring main unit applications where stable electricity supply is required.

6.2 Renewable Energy Projects

Renewable energy continues to grow worldwide, including solar farms and wind power projects. These systems need reliable medium voltage equipment to connect generated electricity with the power grid.

Our SF6 Gas Insulated Load Break Switch for RMU provides safe circuit control for renewable energy applications. Its compact structure makes it suitable for projects where installation space and long-term reliability are important.

6.3 Industrial Manufacturing Plants

Factories depend on continuous electricity to maintain production efficiency. A power interruption can cause production delays, equipment damage, and financial losses.

Our 12kV 630A load break switch helps industrial users build safer electrical distribution systems. It supports reliable power control for industries such as machinery manufacturing, automotive production, chemical processing, and food processing.

6.4 Commercial Buildings and Urban Infrastructure

Modern buildings require efficient electrical systems with limited installation space. Shopping centers, office buildings, hospitals, and public facilities need compact and reliable medium voltage equipment.

The compact design of our 12kV SF6 insulated load switch allows easier integration into prefabricated substations and compact ring main units.

6.5 Mining, Petrochemical, and Transportation Applications

Some industries operate in demanding environments where electrical equipment must provide strong durability and stable performance. Mining sites, petrochemical facilities, and transportation systems require reliable power distribution solutions.

With good insulation performance and mechanical strength, our SF6 gas insulated load break switch can support these challenging applications.

7. Why Choose Jihui Electric as Your SF6 Load Break Switch Manufacturer?

Selecting an electrical equipment supplier is an important decision. Customers need more than a product; they need a partner who understands technical requirements, project schedules, and long-term service needs.

At Jihui Electric, we combine manufacturing experience, engineering knowledge, and customer service to provide complete medium voltage power solutions.

7.1 Professional Medium Voltage Equipment Manufacturer

We specialize in manufacturing medium and low voltage power transmission and distribution equipment up to 35kV. Our product range covers:

• Ring main units

• Gas insulated switchgear

• Solid Insulated Ring Main Units

• Prefabricated substations

• Cable distribution boxes

• Combination transformers

• SF6 load switches

• Vacuum circuit breakers

With professional production capability, we provide customers with complete electrical solutions instead of only individual products.

7.2 Strict Quality Management System

Quality control is part of every stage of our production. We follow international management standards to ensure product reliability and consistent performance.

• ISO9001: Quality management system certification

• ISO14001: Environmental management system certification

• ISO45001: Occupational health and safety management system certification

These certifications reflect our commitment to producing safe, reliable, and environmentally responsible power distribution equipment.

7.3 Customized Solutions Based on Project Requirements

Every project has different requirements. Some customers need standard products, while others need customized designs based on installation conditions, technical parameters, or project specifications.

Our technical team works closely with customers to provide suitable solutions, including product selection, technical confirmation, production arrangement, and after-sales support.

7.4 Reliable Delivery and Export Service

We understand that project schedules are important. Our production team arranges manufacturing according to order requirements and provides efficient delivery support.

Products are professionally packaged with protection against moisture, vibration, and impact. According to customer location and order requirements, we support sea transportation, land transportation, and combined logistics solutions.

8. Comparison Between Different Medium Voltage Load Switch Solutions

Different switching technologies have different advantages. The following table provides a general comparison to help customers understand why SF6 insulated load break switches are widely used in medium voltage systems.

Source: General comparison based on medium voltage switchgear technology characteristics and Jihui Electric application experience.

9. Frequently Asked Questions About 12kV 630A SF6 Gas Insulated Load Break Switch

Q1: What is a 12kV 630A SF6 Gas Insulated Load Break Switch used for?

This product is mainly used for controlling and isolating medium voltage electrical circuits. It is commonly installed in ring main units, distribution networks, substations, and industrial power systems.

Q2: Why use SF6 gas insulation technology?

SF6 gas provides excellent insulation performance and helps maintain stable operation inside a compact switching structure. It improves equipment reliability and supports safe switching under medium voltage conditions.

Q3: What does 630A mean in this product?

630A refers to the rated current capacity of the switch. It means the equipment is designed to handle electrical current up to 630 amperes under specified operating conditions.

Q4: Can this SF6 load break switch be used in RMU systems?

Yes. Our 12kV SF6 Gas Insulated Load Break Switch is widely used as a key switching component in ring main unit systems, helping improve power distribution reliability and operational safety.

Q5: Does Jihui Electric provide customized products?

Yes. We support customized solutions based on customer technical requirements, project conditions, installation environments, and application needs.

Q6: What is the production and delivery process?

After technical confirmation, we arrange production according to product type, quantity, and project schedule. Before shipment, products complete inspection and testing procedures to ensure quality and performance.

10. Our Commitment to Reliable Medium Voltage Power Solutions

At Jihui Electric, we believe that reliable electricity starts with reliable equipment. Our 12kV 630A SF6 Gas Insulated Load Break Switch represents our focus on safety, efficiency, and long-term performance.

Through continuous improvement in product design, manufacturing technology, and customer service, we provide professional solutions for customers in power energy, renewable energy, industrial manufacturing, transportation, and infrastructure industries.

Whether you need a single 12kV load break switch or a complete medium voltage power distribution solution, our team is ready to provide technical support and reliable service.

Contact Jihui Electric for Your 12kV Power Distribution Project

If you are looking for a dependable 12kV 630A SF6 Gas Insulated Load Break Switch manufacturer, Jihui Electric can provide high-quality products, customized solutions, and professional international service.

We are committed to helping customers build safer, smarter, and more efficient power distribution systems with reliable medium voltage equipment.
