As a professional manufacturer of power transmission and distribution equipment, Jihui Electric Group has been focusing on providing reliable electrical solutions for global customers. Among our high voltage Cable accessories, the 110KV ceramic cable indoor and outdoor terminals are developed for modern power systems that require safe operation, excellent insulation performance, and long-term stability.

With the rapid growth of power grids, renewable energy projects, industrial facilities, and urban infrastructure, high voltage cable systems are becoming more important than ever. A cable termination point is not only a connection part but also a key protection area that affects the safety and efficiency of the entire electrical network.

Our 110KV ceramic cable indoor and outdoor terminals are designed to provide dependable cable termination solutions for high voltage applications. By combining ceramic insulation technology, advanced manufacturing processes, and strict quality inspection, we help customers build safer and more stable power transmission systems.

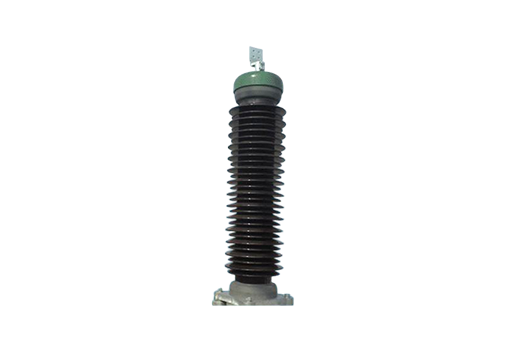

1. Product Introduction of 110KV Ceramic Cable Indoor and Outdoor Terminals

The 110KV ceramic cable indoor and outdoor terminal is a high voltage Cable Accessory used for connecting 110kV power cables with electrical equipment such as transformers, switchgear, GIS systems, and transmission networks.

Unlike ordinary cable accessories, high voltage terminals need to handle strong electric fields, environmental changes, and long-term mechanical stress. The terminal structure must control electrical stress, prevent moisture penetration, and maintain stable insulation performance during years of operation.

Our ceramic cable terminals are suitable for both indoor and outdoor installation environments. Indoor terminals are mainly used in substations, control rooms, and enclosed electrical facilities, while outdoor terminals are designed for open environments such as transmission stations and outdoor switchyards.

The main application purposes include:

• High voltage cable connection

• Electrical insulation protection

• Electric field stress control

• Environmental sealing

• Safe power transmission between cable systems and equipment

2. Working Principle of 110KV Ceramic Cable Terminals

The working principle of the 110KV ceramic cable indoor and outdoor terminals is based on controlling electrical stress and maintaining insulation reliability.

When high voltage electricity passes through a cable, the electric field around the cable conductor is not evenly distributed. Without proper control, concentrated electric stress may damage insulation materials and reduce service life.

Our cable terminal uses a carefully designed insulation structure to distribute electrical stress evenly. The ceramic insulation body provides excellent dielectric strength, while the sealing structure prevents moisture, dust, and external pollution from entering the cable connection area.

The basic working process includes:

1. The cable conductor is connected with the terminal conductor part.

2. The insulation structure controls electric field distribution.

3. The ceramic insulation component provides electrical isolation.

4. The sealing system protects internal components from the environment.

5. The terminal maintains stable performance during long-term operation.

This design allows the terminal to work safely under high voltage conditions while reducing maintenance requirements.

3. Main Features of Our 110KV Ceramic Cable Indoor and Outdoor Terminals

Excellent Ceramic Insulation Performance

Ceramic materials have been widely used in high voltage electrical equipment because of their excellent insulation characteristics. Our ceramic cable terminals provide strong electrical insulation and stable performance under different operating conditions.

The ceramic insulation structure helps improve resistance against electrical aging and environmental influence, making the product suitable for long-term power system operation.

Reliable Indoor and Outdoor Application Design

Different installation environments create different challenges. Indoor equipment usually requires compact design and stable insulation, while outdoor equipment needs stronger protection against weather conditions.

Our 110KV ceramic cable indoor and outdoor terminals are designed according to different application requirements:

Source: Product application information is based on high voltage cable accessory engineering practices and Jihui Electric manufacturing experience.

Strong Mechanical Strength

High voltage cable terminals must withstand mechanical stress during installation and operation. The ceramic components used in our products provide good mechanical strength and structural stability.

This helps ensure reliable performance during transportation, installation, temperature changes, and long-term operation.

Long Service Life and Low Maintenance Requirement

Power equipment is expected to operate continuously for many years. Frequent maintenance increases operation costs and affects system reliability.

The structure of our ceramic cable terminals focuses on durability, reducing the need for regular maintenance while maintaining safe electrical performance.

4. Technical Advantages of 110KV Ceramic Cable Indoor and Outdoor Terminals

At Jihui Electric, we focus on practical engineering performance. Our goal is not only to manufacture products but also to provide solutions that meet real project requirements.

Stable Electrical Performance

The terminal structure is designed to support high voltage operation with reliable insulation coordination. Proper electric field control helps reduce insulation stress and improve system safety.

Excellent Environmental Adaptability

Power equipment may face different conditions, including:

• High temperature environments

• Low temperature areas

• Humidity and rain

• Dust and pollution

• Outdoor exposure

Our ceramic cable terminals are manufactured to provide stable performance under various environmental conditions.

Suitable for Different Cable Systems

The product can be applied with different high voltage cable systems according to project requirements. We provide technical support based on cable specifications, voltage level, installation conditions, and customer standards.

5. Comparison Between Different High Voltage Cable Terminal Materials

Source: Comparison based on general electrical insulation material characteristics and industry application experience.

6. Application Industries of 110KV Ceramic Cable Indoor and Outdoor Terminals

The 110KV ceramic cable indoor and outdoor terminals are widely used in industries where reliable electricity supply is essential.

Power Grid Projects

Power companies require reliable cable accessories for transmission and distribution networks. Our terminals support safe connection between high voltage cables and electrical equipment.

Renewable Energy Projects

Wind farms and solar power plants often require high voltage cable systems to transmit generated electricity. Reliable cable termination helps improve the stability of renewable energy connections.

Industrial Manufacturing

Factories and industrial plants depend on continuous electricity supply. A stable cable termination system helps reduce unexpected downtime and improves production reliability.

Urban Infrastructure

Modern cities increasingly use underground cable networks. High quality cable terminals provide dependable solutions for underground power transmission systems.

Transportation Facilities

Railways, airports, and metro systems require stable power networks. High Voltage Cable Accessories help maintain reliable electricity supply for critical infrastructure.

7. Manufacturing Process of 110KV Ceramic Cable Indoor and Outdoor Terminals

At Jihui Electric, we understand that a high voltage cable terminal is not just a simple accessory. It is a key component that directly affects the safety and stability of a power system. Therefore, we pay close attention to every step of the manufacturing process, from material selection to final inspection.

The production of our 110KV ceramic cable indoor and outdoor terminals follows strict manufacturing procedures to ensure consistent quality and reliable performance. Our engineering team combines electrical knowledge with practical manufacturing experience to create products suitable for demanding power applications.

Raw Material Selection

The quality of raw materials directly influences the final product performance. We carefully select ceramic insulation materials, sealing components, metal connection parts, and other key materials according to product requirements.

During incoming inspection, materials are checked for:

• Appearance quality

• Mechanical strength

• Dimensional accuracy

• Material consistency

• Electrical performance requirements

Precision Ceramic Component Manufacturing

Ceramic insulation parts require accurate manufacturing because even small dimensional differences may influence installation and electrical performance.

Our production process includes precise forming, high-temperature treatment, surface finishing, and quality inspection to ensure the ceramic components meet design requirements.

Terminal Assembly Process

During assembly, each component is installed according to technical drawings and production standards. Our technicians control assembly accuracy to ensure proper connection between insulation parts, conductors, and sealing structures.

The main assembly steps include:

1. Component preparation and inspection

2. Conductor connection installation

3. Insulation structure assembly

4. Sealing system installation

5. Final appearance inspection

Electrical Performance Testing

Before delivery, every batch of products undergoes inspection and testing. We verify that the cable terminals meet customer requirements and technical standards.

Testing items may include:

• Insulation performance inspection

• Electrical withstand testing

• Dimensional checking

• Sealing performance inspection

• Appearance quality evaluation

8. Quality Control Standards and Inspection System

Reliable power equipment requires reliable quality management. At Jihui Electric, we have established a complete quality control system covering production, inspection, packaging, and delivery.

Our company has obtained:

• ISO9001 Quality Management System Certification

• ISO14001 Environmental Management System Certification

• ISO45001 Occupational Health and Safety Management System Certification

These certifications reflect our commitment to organized production, environmental responsibility, and safe working practices.

Quality Control Process

Source: Quality management information is based on Jihui Electric production management procedures.

9. Why Choose Jihui Electric for 110KV Ceramic Cable Terminals?

Choosing the right supplier for high voltage cable accessories is an important decision. A good product should be supported by professional manufacturing ability, technical experience, and reliable service.

Jihui Electric provides complete electrical equipment solutions for customers worldwide. We focus on helping customers solve practical project challenges, not only supplying products.

Experienced Electrical Equipment Manufacturer

Jihui Electric specializes in research, development, manufacturing, sales, and service of power transmission and distribution equipment.

Our product range includes:

• Cable accessories

• Cable distribution boxes

• Ring main units

• Prefabricated Substations

• Combination transformers

• SF6 load switches

• Vacuum circuit breakers

This complete product range allows us to understand different power system requirements and provide suitable solutions.

Professional Technical Support

Every project may have different requirements. Cable type, installation environment, voltage level, and customer standards can affect product selection.

Our technical team provides support including:

• Product selection advice

• Technical parameter confirmation

• Installation guidance

• Project communication

• Customized solutions

Flexible Customization Capability

Standard products can meet many applications, but some projects require special designs. We support customized solutions according to customer requirements.

Customization can include:

• Cable specifications

• Installation conditions

• Technical standards

• Project quantity requirements

• Special application environments

Reliable Delivery Service

We understand that electrical projects often follow strict construction schedules. Delayed delivery may affect installation progress.

Therefore, we arrange production according to order requirements and provide professional logistics support.

Our delivery service includes:

• Production scheduling

• Quality inspection documents

• Export packaging

• Transportation arrangement

• After-sales communication

10. Packaging and Transportation Protection

High voltage cable accessories require careful protection during transportation. Damage during shipping may affect installation and project progress.

For the 110KV ceramic cable indoor and outdoor terminals, we use professional packaging methods to protect products from:

• Moisture

• Impact

• Dust

• Mechanical vibration

According to customer location and project requirements, we support:

• Sea transportation

• Land transportation

• Multi-mode transportation solutions

11. Frequently Asked Questions About 110KV Ceramic Cable Indoor and Outdoor Terminals

Q1: What is a 110KV ceramic cable indoor and outdoor terminal?

A 110KV ceramic cable indoor and outdoor terminal is a high voltage cable accessory used to connect 110kV cables with electrical equipment. It provides insulation protection, electrical connection, and environmental sealing for power transmission systems.

Q2: What are the advantages of ceramic insulation materials?

Ceramic insulation materials provide excellent electrical insulation, good mechanical strength, and strong environmental resistance. They are suitable for long-term operation in high voltage applications.

Q3: Can this terminal be used outdoors?

Yes. Outdoor versions are designed with sealing protection and environmental resistance to support operation in outdoor conditions such as rain, temperature changes, and pollution environments.

Q4: Where can 110KV ceramic cable terminals be installed?

They are commonly used in substations, power transmission networks, renewable energy projects, industrial facilities, and large infrastructure electrical systems.

Q5: Does Jihui Electric provide customized solutions?

Yes. We provide customized cable terminal solutions according to cable size, project requirements, installation environment, and customer technical specifications.

Q6: How does Jihui Electric guarantee product quality?

We control quality through strict material inspection, production management, electrical testing, and final inspection procedures. Our ISO-certified management systems support consistent product quality.

Q7: What is the delivery time for the product?

Delivery time depends on product type, quantity, technical requirements, and project schedule. Standard products can usually be arranged quickly, while customized products require technical confirmation before production.

Q8: What payment methods are available?

We support common international trade payment methods such as T/T. Specific payment terms can be discussed according to order details and cooperation requirements.

12. Reliable Supplier of 110KV Ceramic Cable Indoor and Outdoor Terminals

The 110KV ceramic cable indoor and outdoor terminals play an important role in modern high voltage power transmission systems. A reliable terminal solution helps improve electrical safety, reduce maintenance needs, and support stable power supply.

At Jihui Electric Group, we continue improving our manufacturing technology and service capability to provide dependable electrical solutions for global customers.

With professional production experience, strict quality control, and complete customer support, we provide high voltage cable accessories for power companies, engineering contractors, equipment integrators, renewable energy developers, and industrial users.

If you are looking for a reliable 110KV ceramic cable terminal manufacturer, high voltage cable accessory supplier, or complete 110kV Cable Termination solution, Jihui Electric is ready to support your project with professional products and technical services.

Contact Jihui Electric for High Voltage Cable Solutions

We welcome global partners and customers to contact us for product information, technical consultation, and customized power transmission solutions.

Our mission is to provide safe, reliable, and efficient electrical equipment that supports modern energy development and infrastructure construction worldwide.
